6.7 REMOVING/INSTALLING BOBBIN
The spring sets the “braking value” working against the wire-feed motor and the pull of the
roller-feed wheels. Tighten the bolt “A” (see Figure 6-17 or Figure 6-18) hand tight.
1. Remove/Install the Bobbin as shown in Figure 6-17 or Figure 6-18.

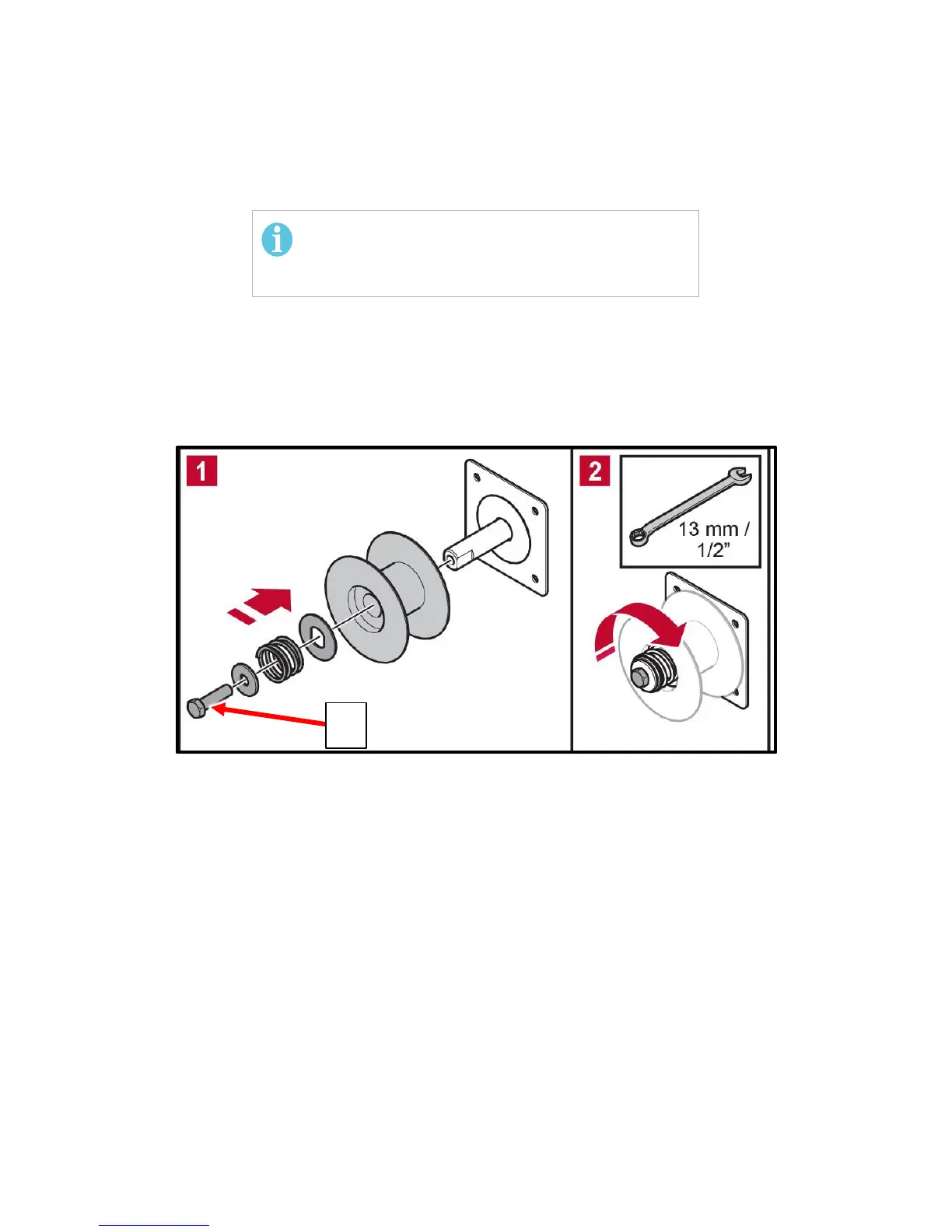

Figure 6-17 Tightening the Bobbin Locking Nut (A) for 100 mm (4 in.)
NOTE
The gas need not be connected for this procedure.
Power should be turned off for this procedure.
