OPERATION
6-5

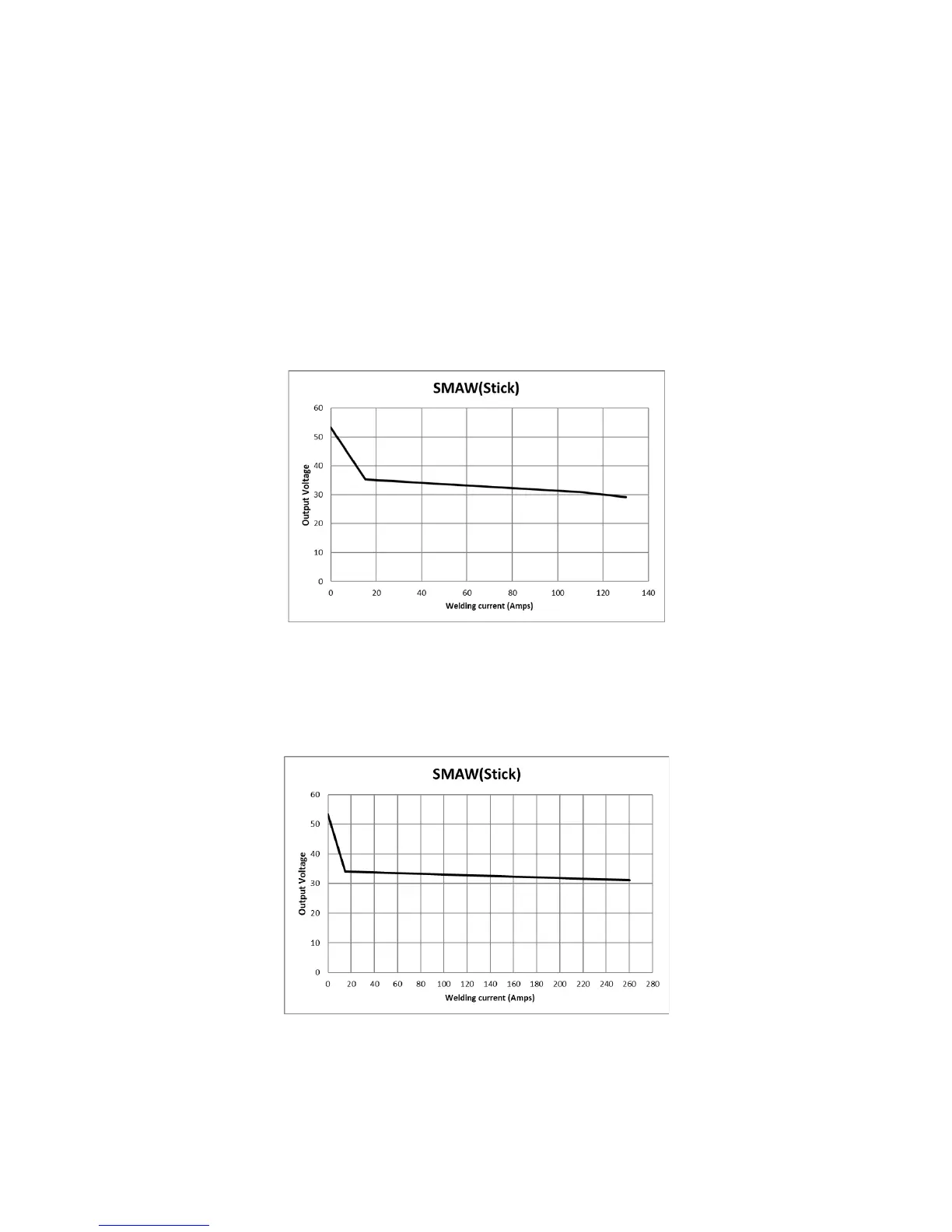

6.5 VOLT-AMPERE CURVES
The curves below show the maximum voltage and amperage output capabilities of the power
source for three common welding process settings. Other settings result in curves that fall
between these curves.
A=Welding current (AMPS), V=Output voltage
6.5.1 1ph VOLT-AMPERE CURVES
6.5.1.1 SMAW (Stick) 120 V, 1ph
Figure 6-3. SMAW (Stick) 120 V, 1ph
6.5.1.2 SMAW (Stick) 230 V, 1ph
Figure 6-4. SMAW (Stick) 230 V, 1ph
