OPERATION
6-18

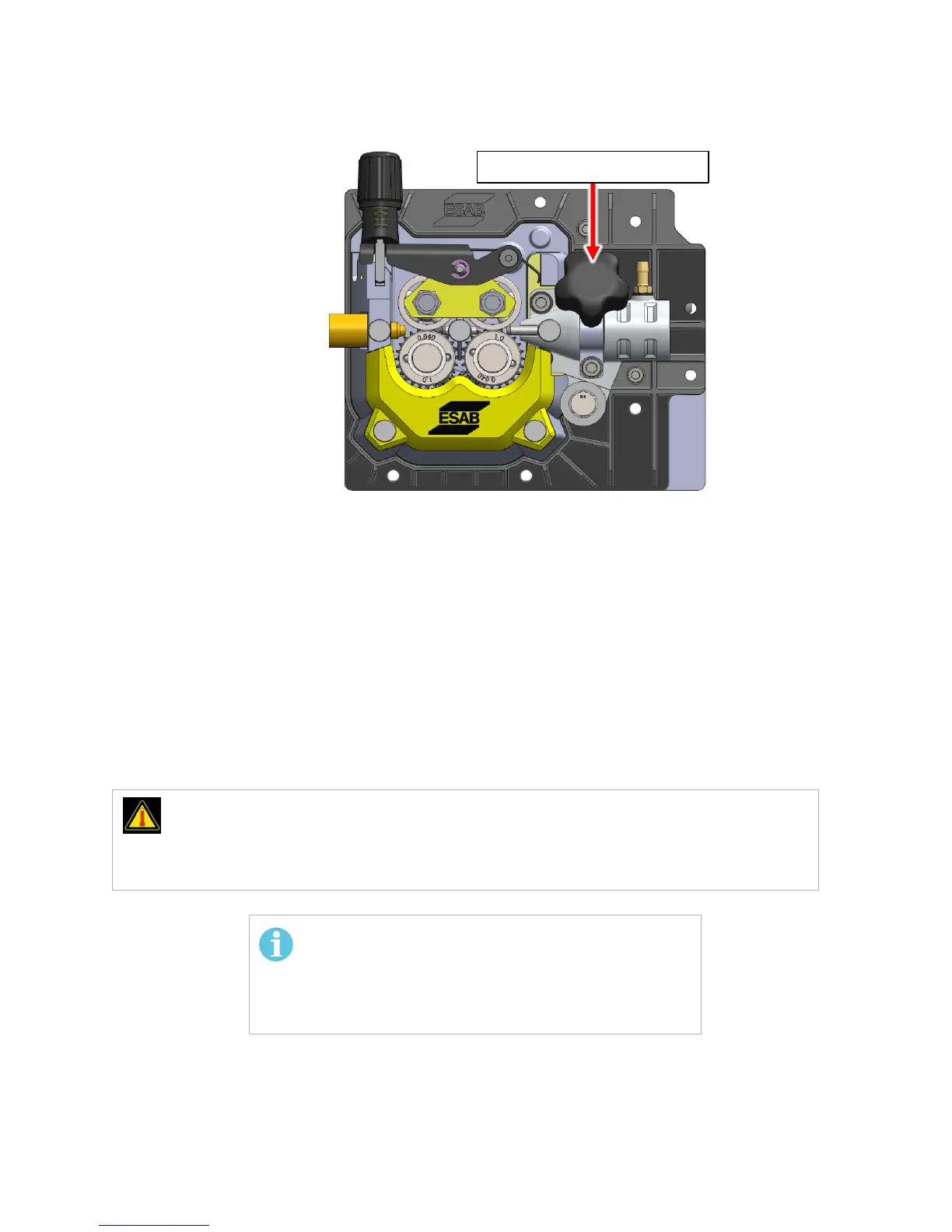

Figure 6-22. Holding Knob for Torch Adapter
6. Pull the remaining length of the wire through the wire-feed assembly and, with the
torch, set the torch assembly aside (with the loose wire still installed in the torch).
The old wire should now be completely removed from the wire-feed assembly.
7. Remove the Bobbin from the unit (see Section 6.7 “REMOVING/INSTALLING
BOBBIN”).
8. IF WIRE REMAINS IN THE TORCH ASSEMBLY: Pull the length of old wire out of the
torch assembly from either end of the torch assembly.
6.8.2 INSTALLLING WIRE
TORCH CONNECTOR HOLDING KNOB
CAUTION!
Too long a torch liner risks damage to the wire-feed assembly if forced to fit when
attempting to connect the torch to the power unit.
Refer to the torch manual for instructions for torch liner replacement.
CAUTION!
This unit is equipped with overheating protection for its power supply.
NOTE
If wire replacement requires a replacement of the torch
liner in the torch assembly, the liner may be too long
and will then require trimming. For installing a new liner
in the torch hose, refer to the torch manual.
