OPERATION
6-17

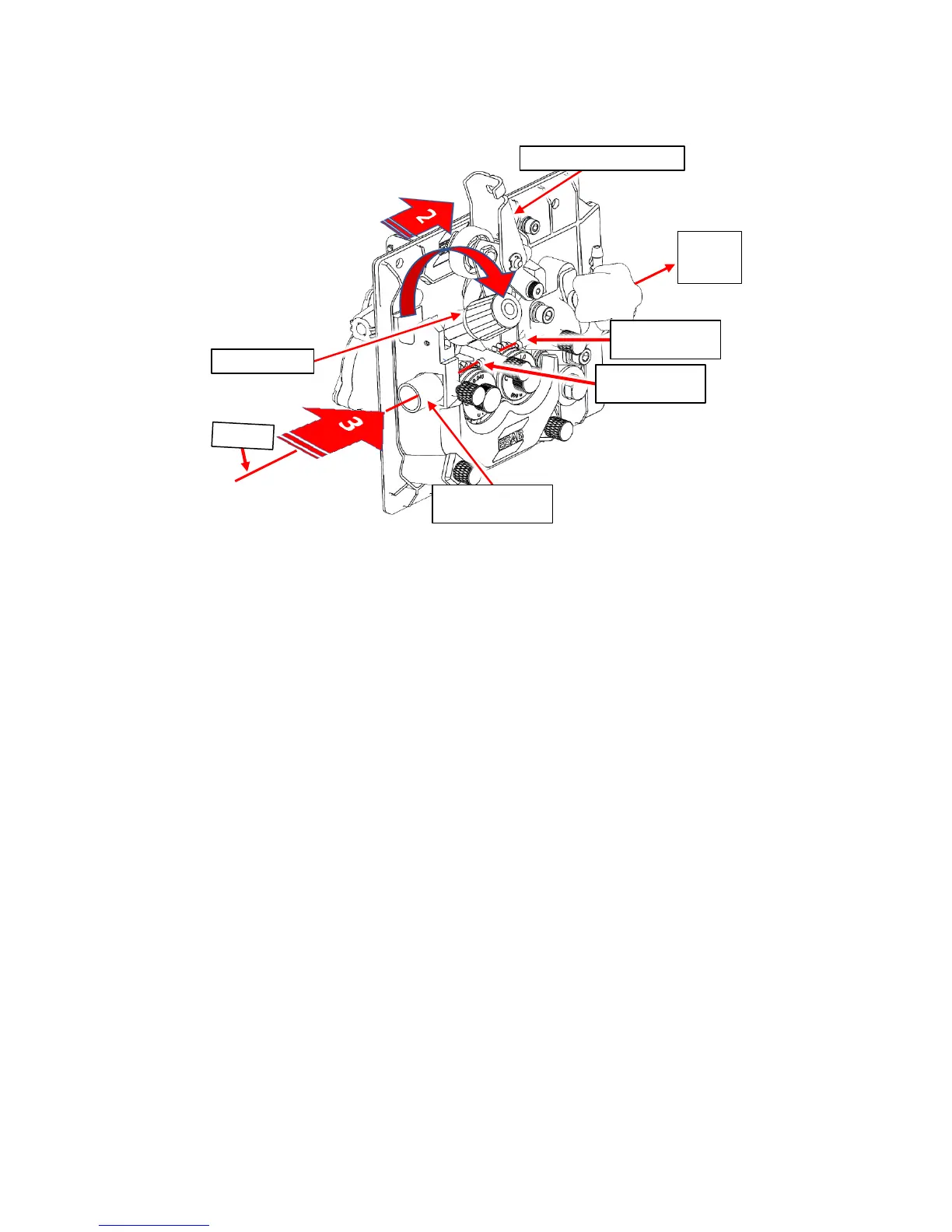

Figure 6-21. Wire-Feed Mechanism
4. IF WIRE REMAINS IN THE TORCH ASSEMBLY: Near the input end of the wire-feed
guide on the wire-feed assembly (see Figure 6-21) cut the wire while holding the
bobbin-end (so the wire does not unravel from the bobbin after cutting it loose).
Secure the cut end of the wire to the bobbin (if any wire is left on the bobbin) to
prevent the wire from unraveling from the bobbin.
5. IF WIRE REMAINS IN THE TORCH ASSEMBLY: Disconnect the torch assembly from the
EMP unit by loosening the torch connector holding knob and disconnecting the torch
connector (see Figure 6-22).
1
WIRE
IN
WIRE
TO
TORCH
TENSIONING ARM
TENSION KNOB
OUTPUT
WIRE-FEED
INPUT
WIRE-FEED GUIDE
CENTER
WIRE-FEED
GUIDE
