6. Remove the two wire-feed rollers by removing their Thumb Screws and sliding each
roller from its shaft (see Figure 6-27, Figure 6-28).

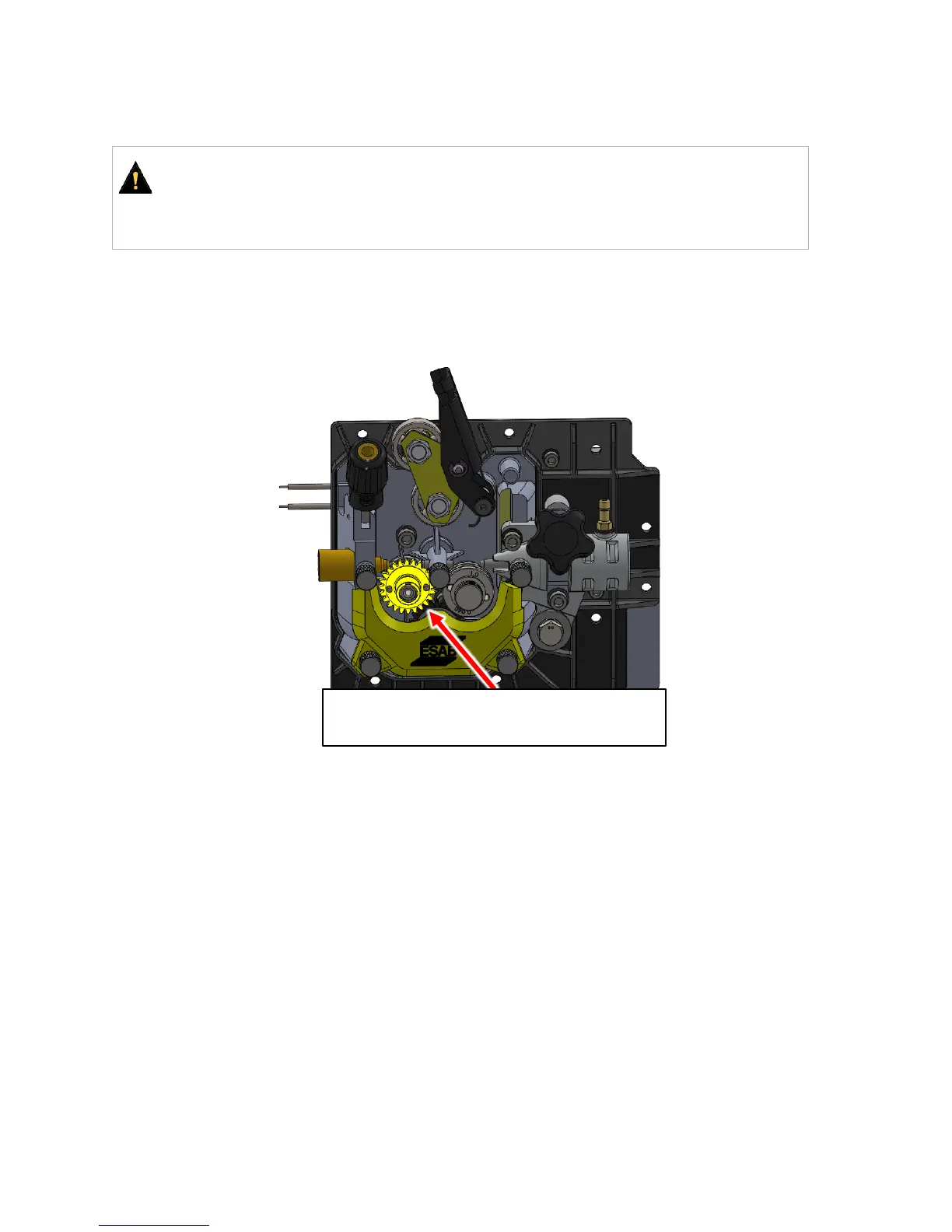

Figure 6-27. Drive Gear with Woodruff Key on Motor Shaft
CAUTION
When removing the drive roller (roller located on left side) be careful NOT to remove the
drive gear with it. Doing so risks losing the small Woodruff key on the motor shaft. Failure
to comply will render the entire unit useless until this part is replaced (see Figure 6 20).
.
AVOID REMOVING DRIVE GEAR
(RISK LOOSING DRIVE-SHAFT WOODRUFF KEY)
