Connections

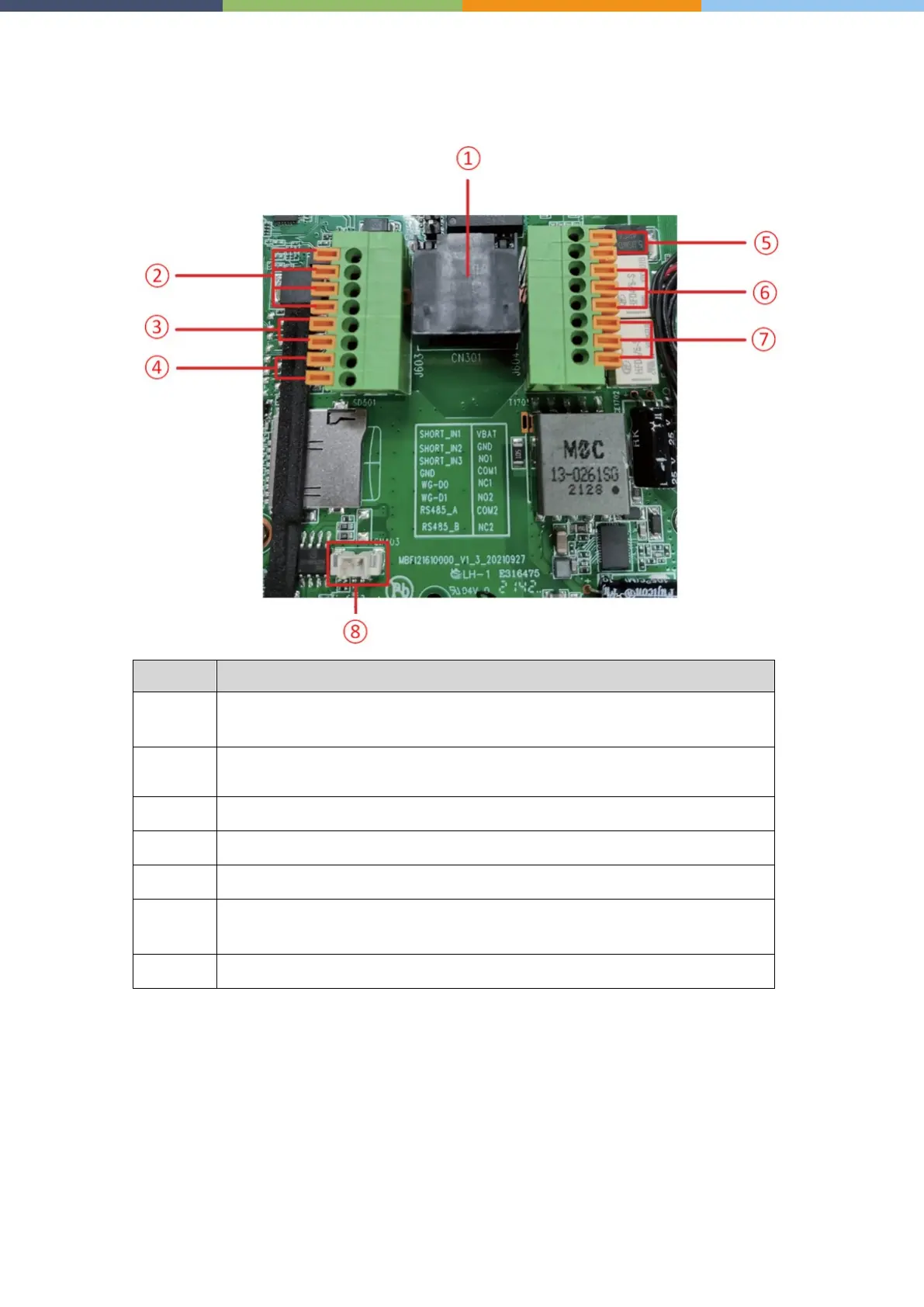

Open the rear case of the device, there is a row of terminal blocks for connecting the power supply,

electric lock control, etc. The connection is as follows:

SN Description

①

Ethernet interface: standard RJ45 interface, 10/100M adaptive, it is

recommended to use five or five types of network cable

②

Two groups of short-circuit input detection interfaces: for connecting switches,

infrared probes, door magnets, vibration sensors and other input devices

③

Wiegand interface

④

RS485 interface

⑤

Power interface: 12V/1A input. VBAT=positive. GND=negative.

⑥

、

⑦

Two groups of short-circuit output control interface: used to control electric

locks, alarms, etc.

⑧

Line out interface. For accessibility aids for the deaf
