396 Ion Operations Manual
Edit Mode (below)
Zoom (on the facing page)
Alignment (on the facing page)
Ordering (on page399)

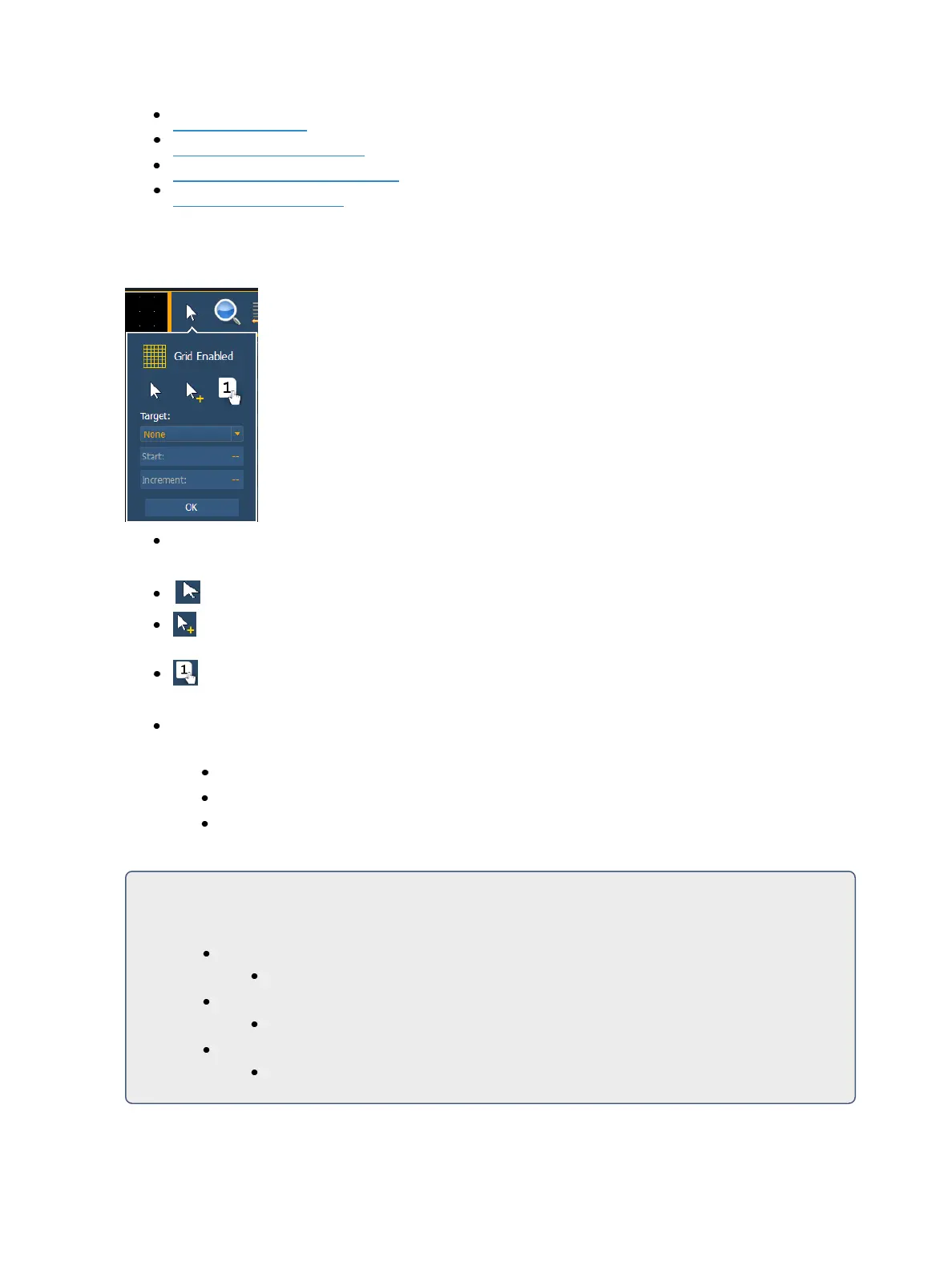

Edit Mode
Clicking on the arrow will open the edit mode options, which include:
Grid Enabled - toggles between a grid being displayed and no grid. With the grid enabled, the
magic sheet will also have a snap to grid behavior when placing objects.
Normal - allows for dragging and dropping of objects from the object list.
QuickLayout - allows you to place more instances of a selected object.When finished, click
the {Done} button or change the layout mode to normal.
QuickNumber - used to quickly assign target numbers to objects. While in quick number
mode, clicking on an object will assign the selected target and increment the numbers as spe-
cified in the target section of edit mode.
Target - used to specify object, starting target number, and incrementation for use in quick
number mode.
Object - assigns the object from the list.
Start - assigns the starting target number.
Increment - assigns what incrementation the target numbers will use after the start
number.
For Example:
When incrementing multicell fixtures on a magic sheet, the following methods can be used:
Start: 1.1 Increment: 1
Gives you these channel numbers: 1.1, 2.1, 3.1...
Start: 1.1 Increment: 0.1
Gives you these channel numbers: 1.1, 1.2, 1.3...
Start:1.1 Increment: 1.1
Gives you these channel numbers: 1.1, 2.2, 3.3...
