Source Select Selects which port the expansion card is using: Optical, Coax or
ExpressCard.
Tx Format Auto/56, Auto/64, 56 ch, 64 ch.
Lock Status Indicates whether your selected port is connected or not. If GREEN,
your MADI Expansion card is connected to your MADI interface. If
RED, your MADI Expansion card is not connected or being detected
by your MADI interface. Check your connections.

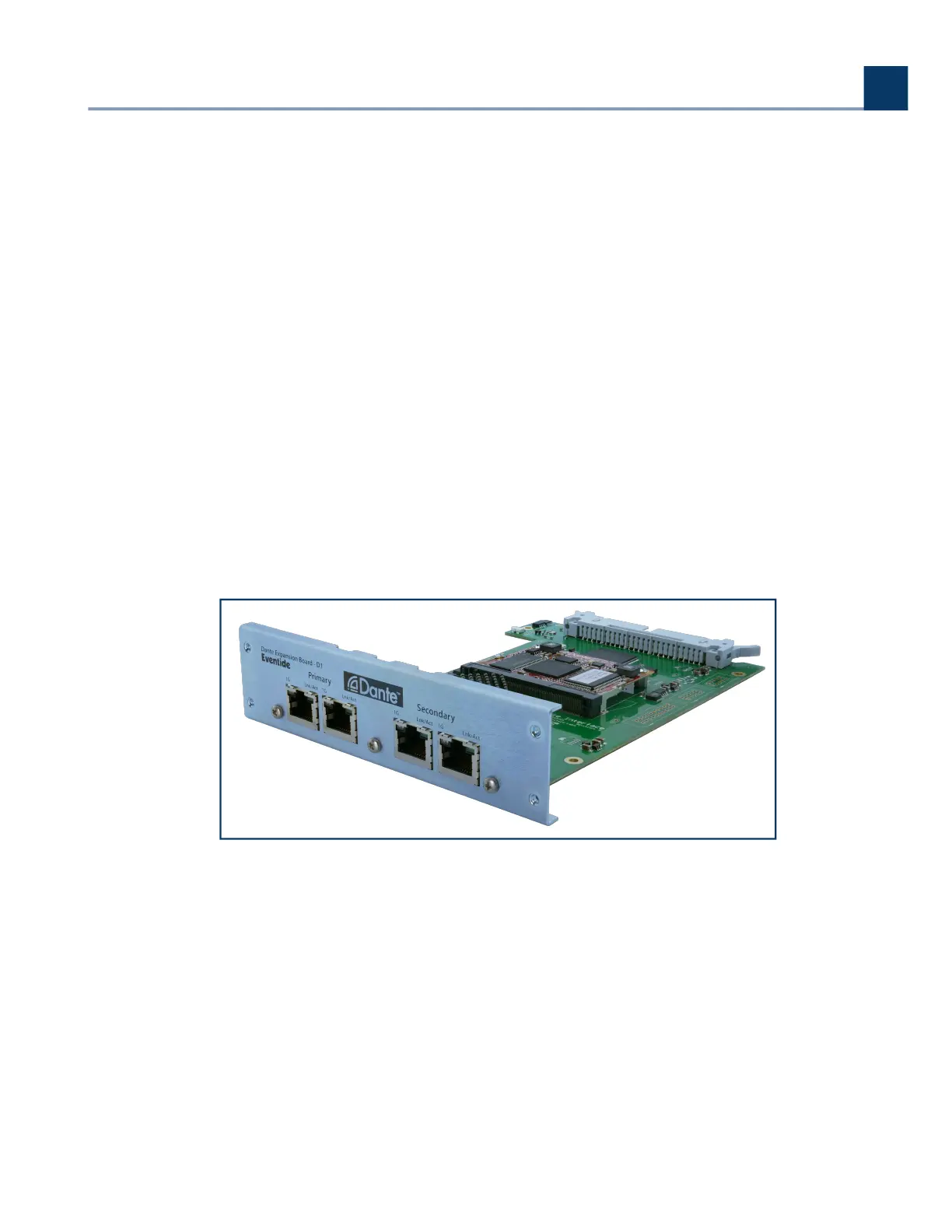

7.2. Dante
Audinate Brooklyn II Dante Module based design
32 In / 32 Out operation from 44.1kHz to 96kHz.
Sample Rate Clock Sources: Brooklyn II Module, Dante network, H9000
AES67 Support
Either 2 Primary and 2 Redundant Networks Connections or 4 Primary Network Connections
•
•
•
•
•
