5. STATUS LED INDICATORS
5.1.1. Power Supply LEDs
Green LED
indicates Power
On
Red LED
indicates frame
fault

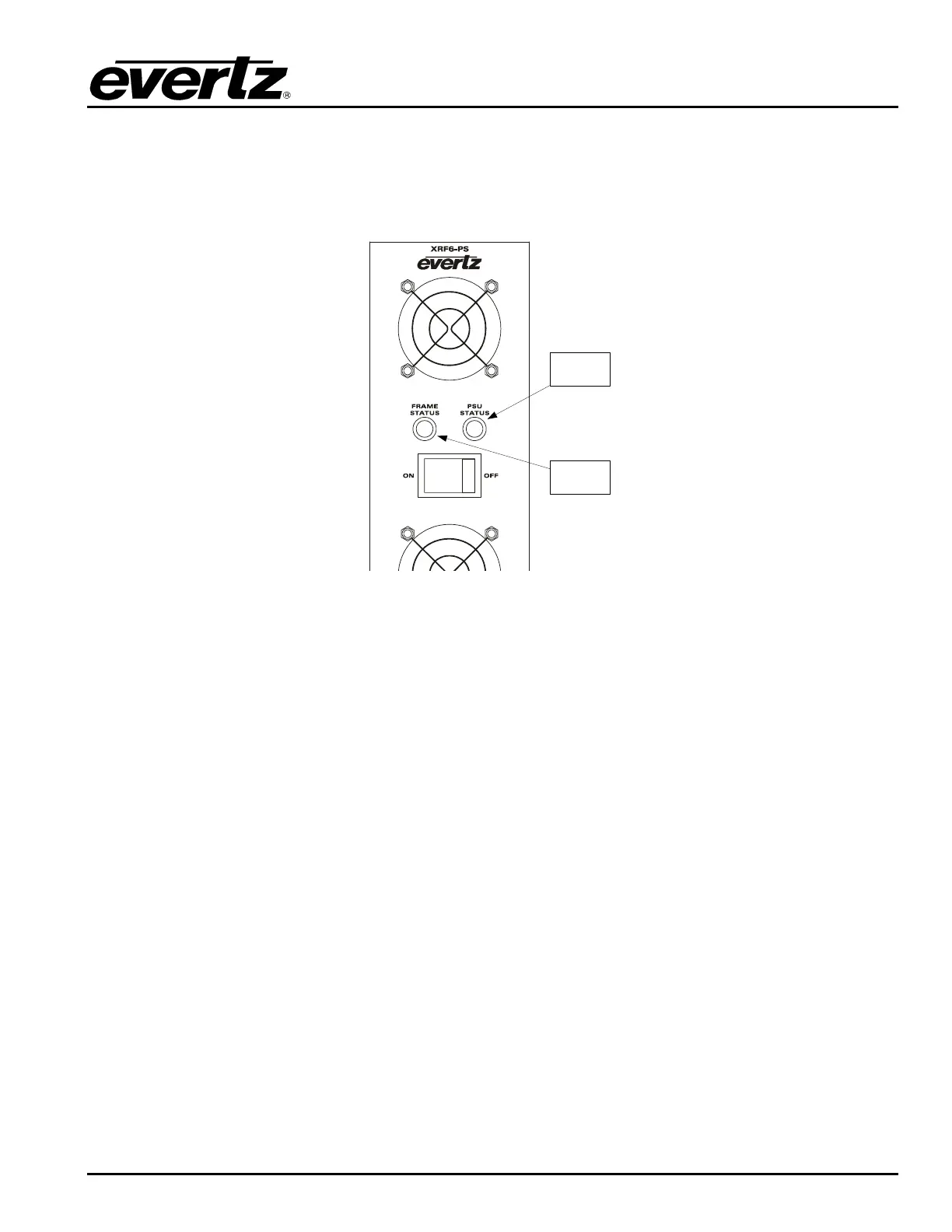

Figure 5-1: Power Supply LED Indicators
The power supply has a green LED that indicates normal operation. It also has a red LED that is used to
indicate a failure on the power supply. The frame controller can also be configured to illuminate the red
LED on the power supply(s) whenever there is an error reported on any card within the frame.
5.1.2. Frame Controller LEDs
The LEDs on the frame controller are currently used for engineering test indication; they are not yet
assigned to user functions. However, any that are illuminated during normal operation should be green.
Red LEDs indicate a configuration or other type of error.
