XRF6 RF Router Manual
FIRMWARE UPGRADES Revision 1.0 Page 8-7

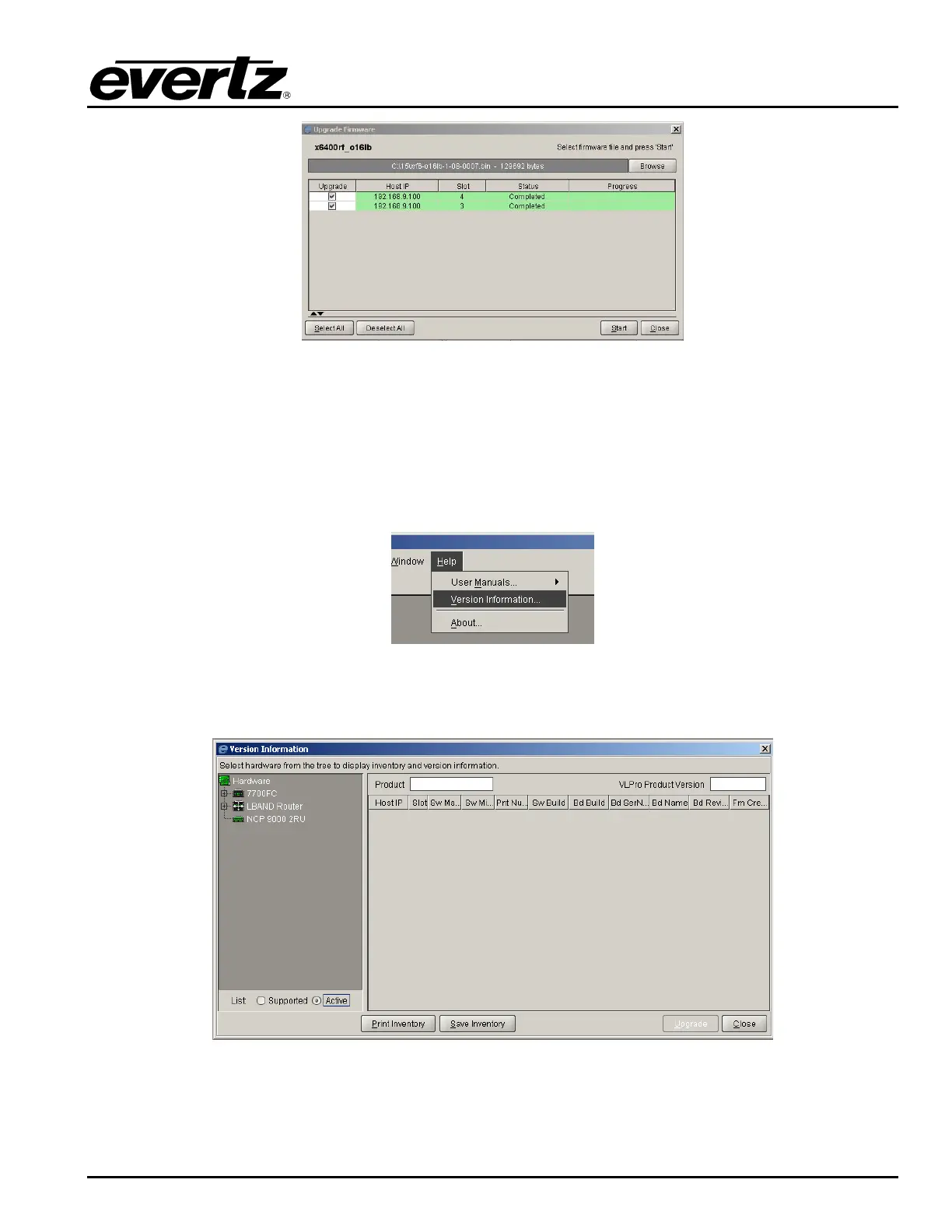

Figure 8-13: Upgrade Process Completed
8.1.4. Upgrading Frame Controller Firmware
1. Launch the VistaLINK
®
Pro client.
2. Select
Help → Version Information from the VistaLINK
®
toolbar.
Figure 8-14: Version Information Menu Item
3. Click the Active radio button.
Figure 8-15: Active Radio Button
4. Expand the entry for LBAND Router from the hardware tree at the left and select LBAND Control.
