XRF6 RF Router Manual
Page 8-6 Revision 1.0 FIRMWARE UPGRADES

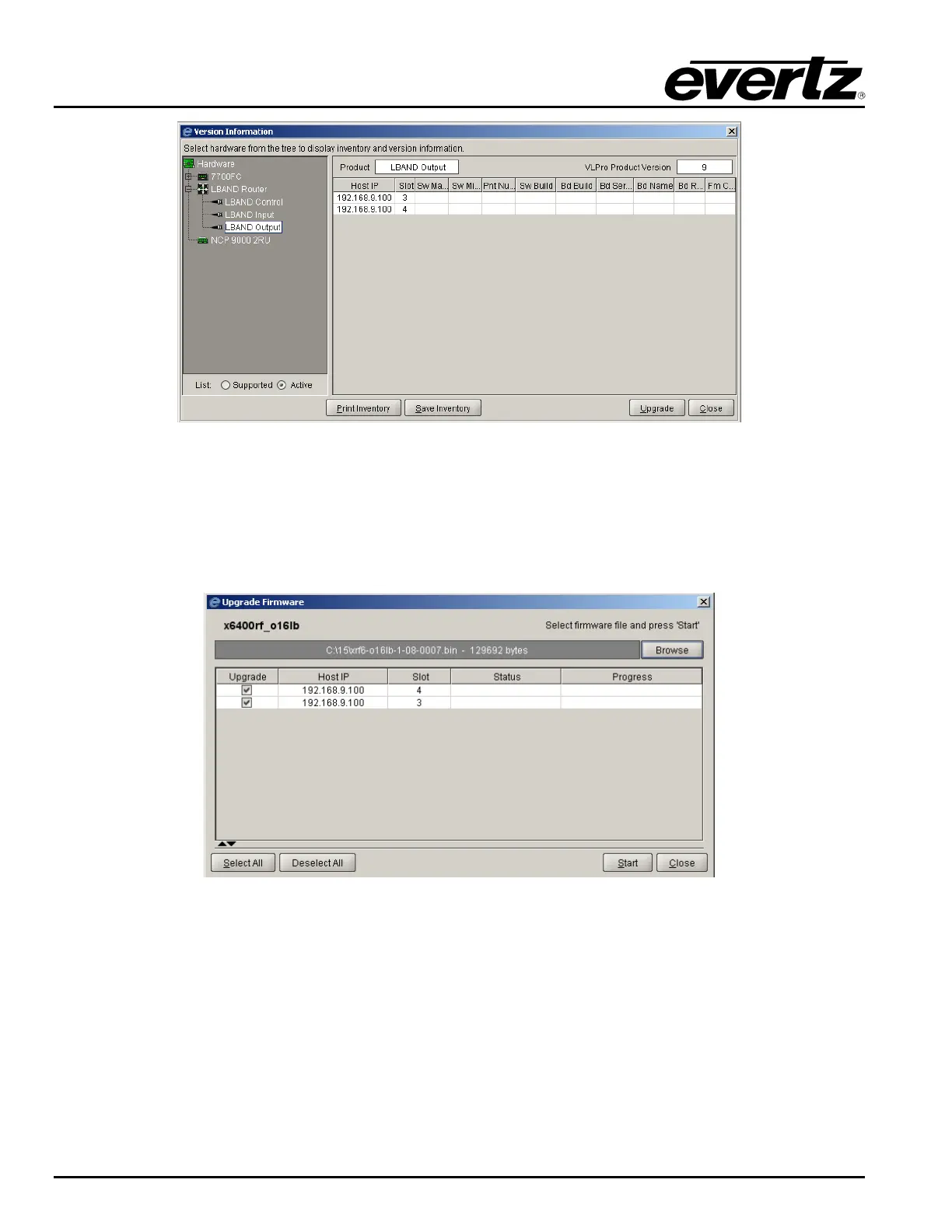

Figure 8-11: XRF6 Hardware Tree Listing
5. Click on Upgrade. A popup window named Upgrade Firmware will appear. Listed will be all of the
XRF6 output cards detected in XRF6 systems on your network.
6. Click
Browse and select the appropriate firmware file from your system, e.g. xrf6-o16lb-1-08-
007.bin
Figure 8-12: Firmware File Selection
7. The check boxes under the Upgrade column may be used to select or deselect cards for upgrade.
Click
Start to upgrade selected cards, and click Yes when prompted to begin the upgrade
8. The upgrade process is completed when Completed is listed under Status for each card selected
for upgrade.
