5.WorkingwithRecordTrains
5.1. Overview
When a train is loaded on the smallest controlled PGM, the Live screen is displayed on the Remote Panel
touchscreen. It gives a quick access to some train functions and to general operation parameters. See
section "The Live Screen on the Remote Panel Touchscreen" on page 43.
The current chapter describes actions which can be performed on trains.
The access to record trains from the online remote servers of the network is done from a specific
interface, the Trains screen, and is described in a dedicated chapter. See section "Accessing Network
Record Trains" on page 236.
5.2.TheLiveScreenontheRemotePanel
Touchscreen
The Live screen appears on the touchscreen at startup and when a train is loaded on the smallest
controlled PGM.

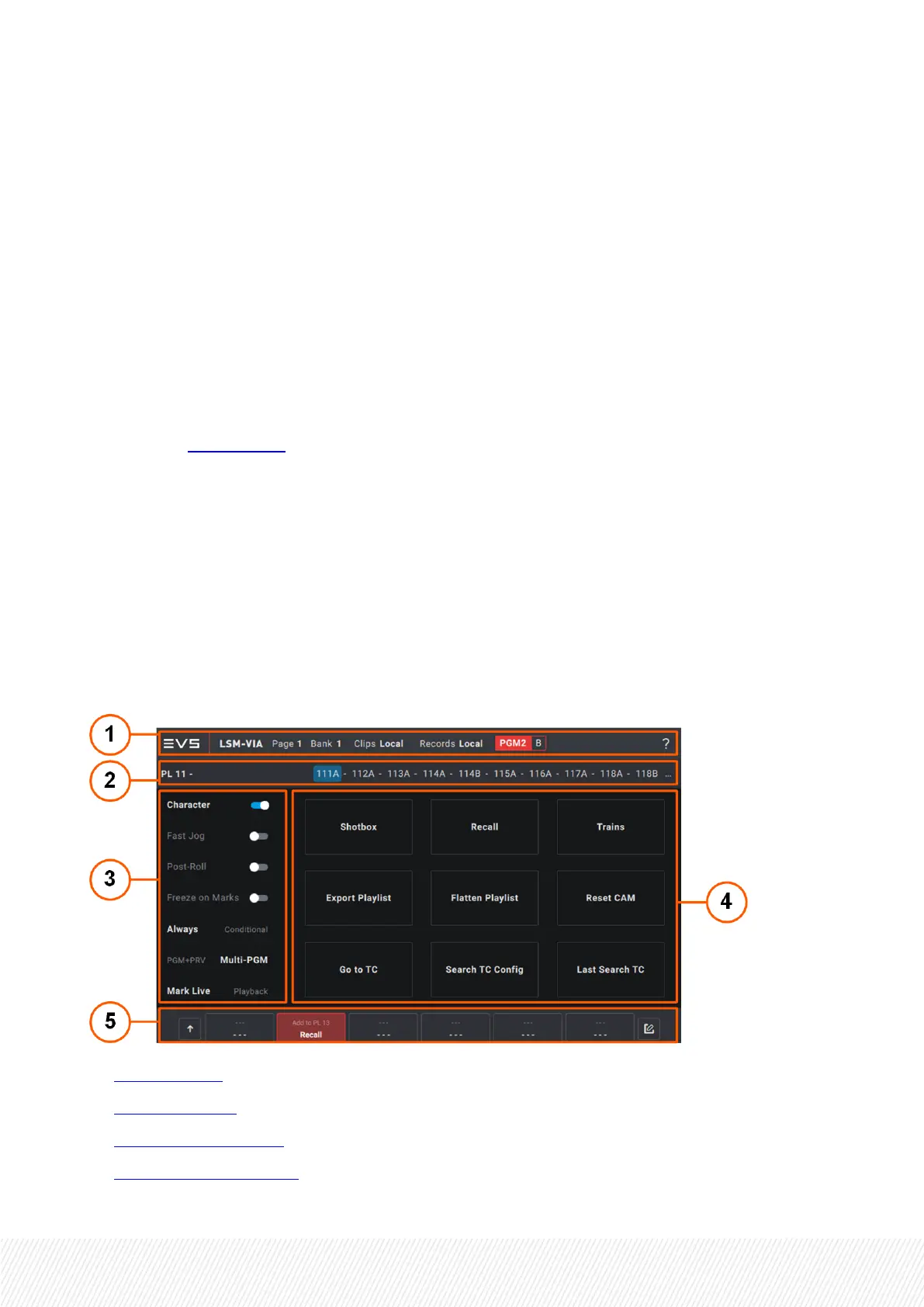

It features the areas highlighted on the following screenshot.
1. Application Bar
2. Playlist Summary
3. Operational Parameters
4. Specific Function Buttons
USER MANUAL
LSM-VIA |5. Working with Record Trains| 43
