7.2.3.ThePlaylistScreenontheRemotePanel
Touchscreen

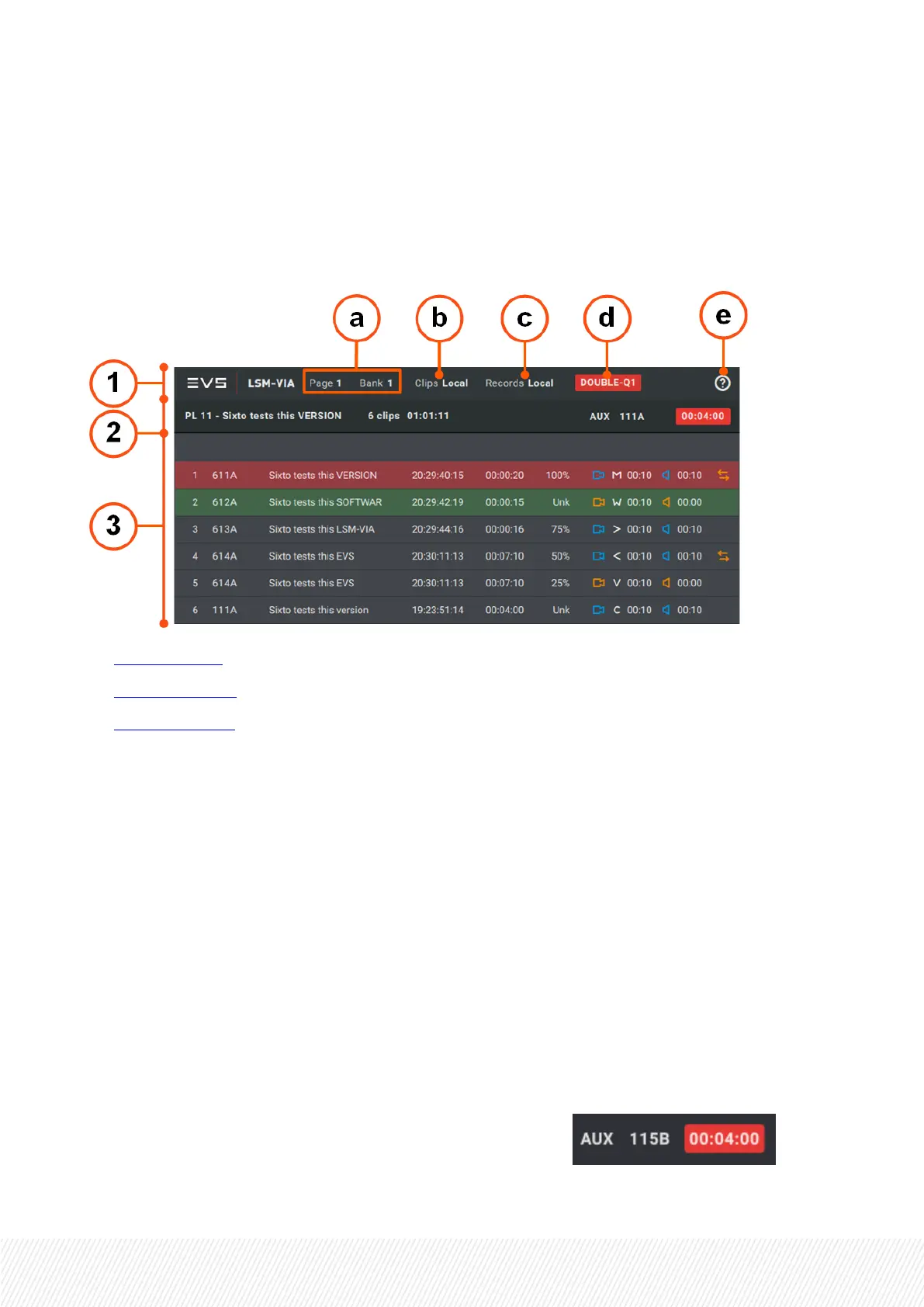

On the Remote Panel touchscreen, the active playlist is displayed as follows.
1. Application Bar
2. Playlist Summary
3. Playlist Elements
Application Bar (1)
This area is displayed in Live mode, Clip mode, Playlist mode.
See section "LSM-VIA Remote Panel Touchscreen" on page 11.
Playlist Summary (2)
The Playlist Summary features the following information about the active playlist, from left to right:
• Playlist LSM ID
• Playlist name (if defined)
• Number of playlist elements
• Duration of the playlist
• Auxiliary audio clip LSM ID and duration (if an AUXclip has been set)
If it is shorter than the playlist duration, this is highlighted in red: .
USER MANUAL
LSM-VIA |7. Working with Playlists| 135
