The number of the EVS video server within the network structure is also added to define the precise
location of the clip. For example if clip 129C is stored on the machine allocated with the network number
2, the clip will be identified as 129C/02.
6.2.ClipSpecificFunctionsandInterfaces
6.2.1.Overview
On the LSM-VIAViewer, the Clip grid displays the list of clips and related information. See section "The
Clip Grid on LSM-VIA Viewer" on page 65 for more information on the Clip grid.
When a clip is loaded on the smallest controlled PGM, the Clip screen appears on the Remote Panel
touchscreen. It gives a quick access to some clip functions and to general operation parameters. See
section "The Clip Screen on the Remote Panel Touchscreen" on page 62.
The functions available in Clip mode from the Remote Panel console then appear on the key display of
the operational blocks. See section "Clip Mode Commands on the Remote Panel Console" on page 72.
6.2.2.TheClipScreenontheRemotePanel
Touchscreen

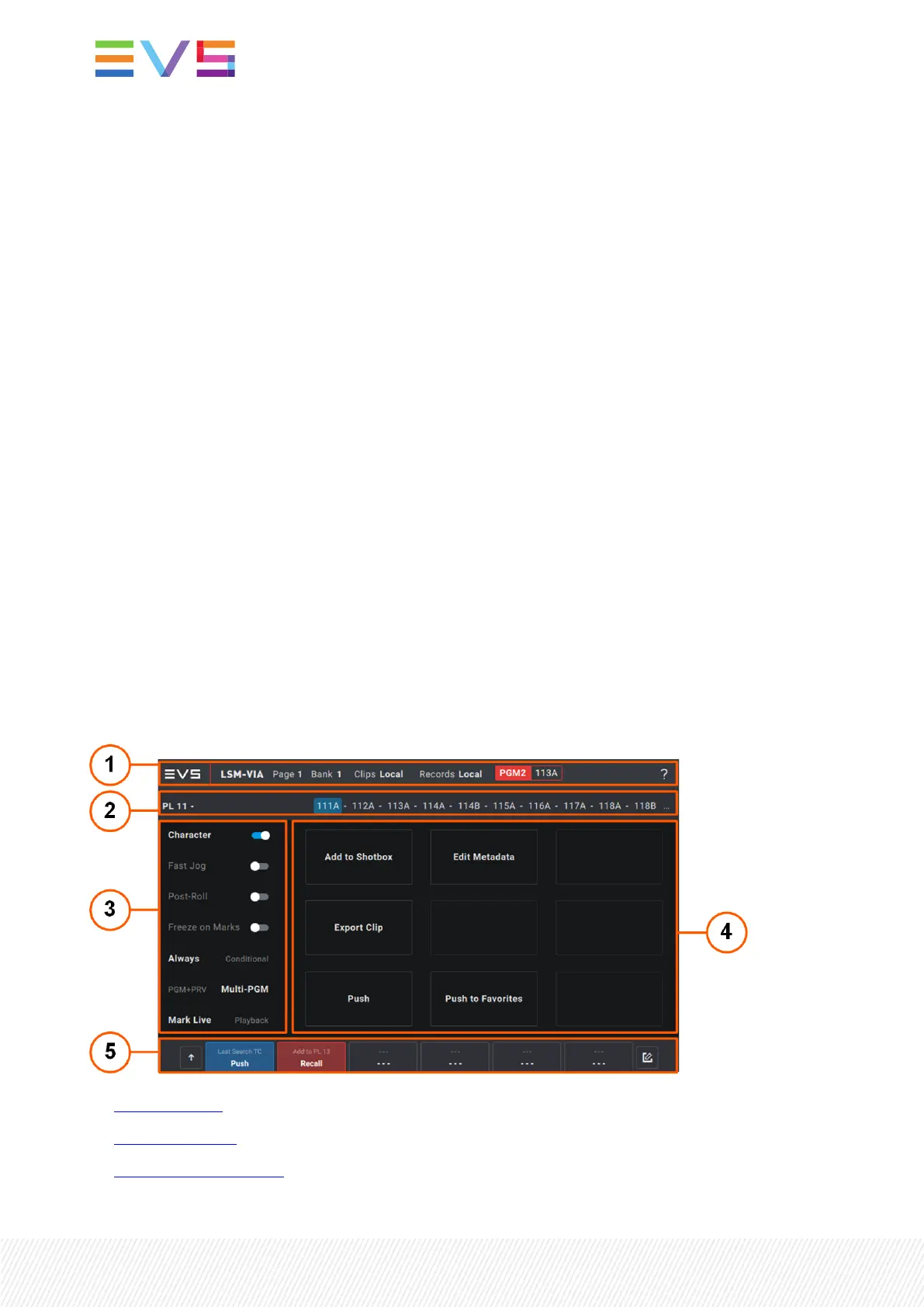

The Clip screen appears on the touchscreen when a clip is loaded on the smallest controlled PGM.
It features the areas highlighted on the following screenshot.
1. Application Bar
2. Playlist Summary
3. Operational Parameters
62| January 2022 | Issue 1.4.G
