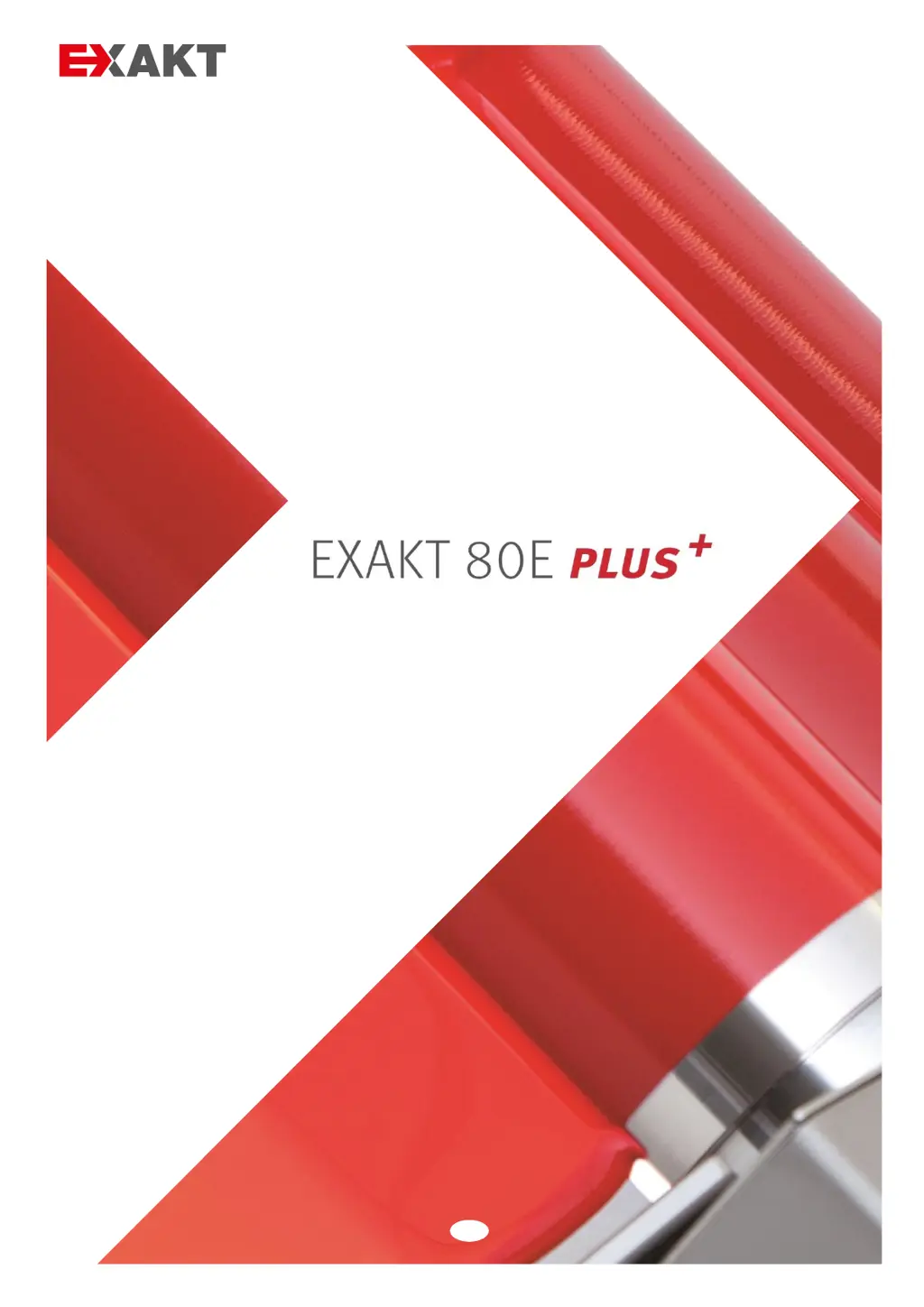

Exakt 80E Plus + - User Manual

Exakt 80E Plus +
154 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
Table of Contents
1
27891EN-900-02 / Edition 02/2017
Article number:
27891EN
27891EN-900-02 / Edition 02/2017
EN
Translation of the original operating instructions, English
THREE ROLLER MILL
Operating Instructions
Document number / Edition

Table of Contents

Questions and Answers

  • B
    Barbara ThomasAug 4, 2025
    How to troubleshoot rollers that do not rotate on Exakt 80E Plus +?
    • J
      Julia HowellAug 4, 2025
      If the rollers of your Exakt Industrial Equipment aren't rotating properly, it could be due to several reasons. First, ensure the EMERGENCY STOP is not activated by unlocking the emergency stop button. Next, check that the safety device is correctly mounted. Verify the power supply is uninterrupted by checking the main switch and fuses. If the electric assembly group lacks power, inspect the fuses and contact service if needed. Overload can also cause this issue; switch off the drive, address the cause, and restart. For thermal overload, reduce speed and allow the machine to cool. Lastly, if processing a highly viscous product, do it in multiple passes with gradually decreasing gap widths.
  • M
    Michael FlemingAug 8, 2025
    What to do if product is removed on one side only on Exakt Industrial Equipment?
    • J
      jonathanaguirreAug 9, 2025
      If your Exakt Industrial Equipment is removing product only on one side, make sure the scraper system is not askew. Check for deposits on contact surfaces and clean if necessary, then correctly mount the scraper system. Also, a worn scraper knife can cause this, so replace it if needed. Ensure the scraper knife is fully inserted to the rear and right stop. Finally, the roller adjustment might not be parallel; clean and readjust the machine, contacting EXAKT Service if necessary.
  • R
    Rebecca NortonAug 13, 2025
    Why does product fineness decrease and is removed on one side only on Exakt 80E Plus +?
    • W
      wilsonkatherineAug 13, 2025
      If the product fineness decreases and the product is removed on one side only when using your Exakt Industrial Equipment, it could be due to incorrect contact pressure of the scraper system. Increase or reduce contact pressure as needed. Also, check if the scraper knife is worn and replace it if necessary.
  • C
    Christy WellsAug 18, 2025
    Why is there noise from the left side of Exakt 80E Plus +?
    • D
      denise25Aug 18, 2025
      If you notice noise coming from the left side of your Exakt Industrial Equipment, the drive belt may be insufficiently tensioned or defective. Tension it or have it replaced by EXAKT Service. Alternatively, the belt tensioner or deflector pulley could be worn and require replacement by EXAKT Service. Another possibility is a defective toothed wheel, which should also be replaced by EXAKT Service.
  • N
    Nicole WellsAug 23, 2025
    What to do if product diverges laterally on the rollers of Exakt 80E Plus + Industrial Equipment?
    • D
      Danielle RogersAug 23, 2025
      If the product diverges laterally on the rollers of your Exakt Industrial Equipment, possibly beyond the roller ends, it could be because gap 1 (nip gap) is too large relative to gap 2. Reduce the gap width of gap 1 or increase the gap width of gap 2. Also, the removal behavior of the scraper knife may not be perfect, causing product to jam in gap 2; check the scraper knife and/or scraper system, and correct the contact pressure if necessary. Lastly, the sealing function of the plastic guide might be insufficient; check the function of the plastic guides and replace them if necessary.
  • S
    Scott TaylorAug 28, 2025
    Why does product flow below the plastic guides in Exakt Industrial Equipment?
    • S
      stephaniefisherAug 28, 2025
      If the product flows below the plastic guides on your Exakt Industrial Equipment, the plastic guides may be dirty or worn. Clean them, and replace if necessary. Also, ensure the sides of the plastic guides are correctly matched, with the blue marker on the left side and the black marker on the right side.

Summary

Contact Addresses

Manufacturer Address

Details of EXAKT Advanced Technologies GmbH, location, and contact information.

Service and Ordering Spare Parts

Information on how to contact for service and order spare parts.

Installation Information in Advance

Safety

General Information Concerning Safety

General safety advice, training requirements, and symbol explanations.

Safety Symbols

Detailed list of safety symbols and their meanings.

Safety Notes Regarding Operation

Crucial safety advice for operating the machine, including warnings.

Handling Chemical Substances and Coolants;Lubricants

Safety guidelines for handling chemical substances and coolants.

Performance Specifications

Intended Use

Defines the proper applications and scope of the machine.

Qualification of the Personnel

Requirements for personnel operating and maintaining the machine.

Marking

Information on machine identification labels and type plates.

Technical Data

Operating and Auxiliary Materials

Details on required cooling fluids, lubricants, and their specifications.

Dimensions

Physical dimensions of the machine.

Rollers

Specifications related to the machine's rollers, including diameter and lengths.

Unit Description

Functional Principle

Explanation of how the three roller mill operates and its purpose.

Operating Modes

Description of different operating modes like cleaning and mixing.

Safety Devices

Overview of essential safety devices that must be mounted.

Control Elements

Identification of control elements on the machine's front side.

Transport

Packaging Symbols

Explanation of symbols used on the machine's packaging.

Instructions for Lifting

Detailed safety instructions and procedures for lifting the machine.

Installation

Setup Site

Guidance on selecting and preparing the installation location.

Connecting the Electric Supply

Procedures and safety warnings for connecting the machine to power.

Setup

Cleaning the Machine Housing

Instructions for cleaning the machine's housing.

Mounting the Scraper Knife

Step-by-step guide for mounting the scraper knife.

Adjusting the Scraper Contact Pressure

How to adjust the pressure of the scraper system.

Inserting Plastic Guides for Working Width 85 MM and 170 MM

How to insert plastic guides for specific working widths.

Operating Elements and Operating Unit

Operating Panel

Overview of the operating panel and its basic functions.

Emergency Stop Button

How to actuate and unlock the emergency stop button.

Operating Unit

Description of the operating unit's functions and controls.

Operation

Switching on the Machine

Step-by-step guide to powering on the machine and entering the password.

Cleaning the Rollers

Detailed instructions for cleaning the machine's rollers.

Adjusting the Rollers

Guide for adjusting the machine's rollers.

Routine Operations

Guide for performing routine operations, setting gaps, and speed.

Routine Operations: Test Run with Petroleum Jelly

Step-by-step guide for a test run using petroleum jelly.

Checking the Safety Devices

Procedures for checking the functionality of safety devices.

Maintenance

Cleaning the Machine Housing

Instructions for cleaning the machine's housing and display.

Maintenance and Care

Service and Maintenance Plan

Schedule for regular service and maintenance tasks.

Troubleshooting

Shutting Down

Short-Term Shutting Down

Steps for safely shutting down the machine for a short period.

Long-Term Shutting Down

Instructions for shutting down the machine for extended periods.

Disposal

Disposing of Unit

Information on the disposal of the machine itself, following EU directives.

Spare and Wear Parts

Wear Parts 80 S PLUS, 80 E PLUS

List of wear parts for 80S PLUS and 80E PLUS models.

Spare Parts 80 S PLUS, 80 E PLUS

List of spare parts including fuses and electrical connectors.

Conformity Check

Checking the Conformity

Ensures operation only after authorized installation and instruction.

Annex

Warranty Conditions

Conditions under which the manufacturer's warranty is void.

Declaration of Conformity

EC Declaration of Conformity for the machine according to relevant directives.
