7.5. SAFETY DEVICES
The safety devices prevent direct access to pull-in points as far as possible.
For operation of the machine, the following must always be mounted:
 Splash tray, safety sensor locked
 Cleaning guard or safety device nip gap (gap 1)
7.5.1. CLEANING
The cleaning guard prevents access to the nip gap. A separate safety sensor
detects that the cleaning guard is set into place. The motor torque is reduced.
The maximum roller speed is reduced.

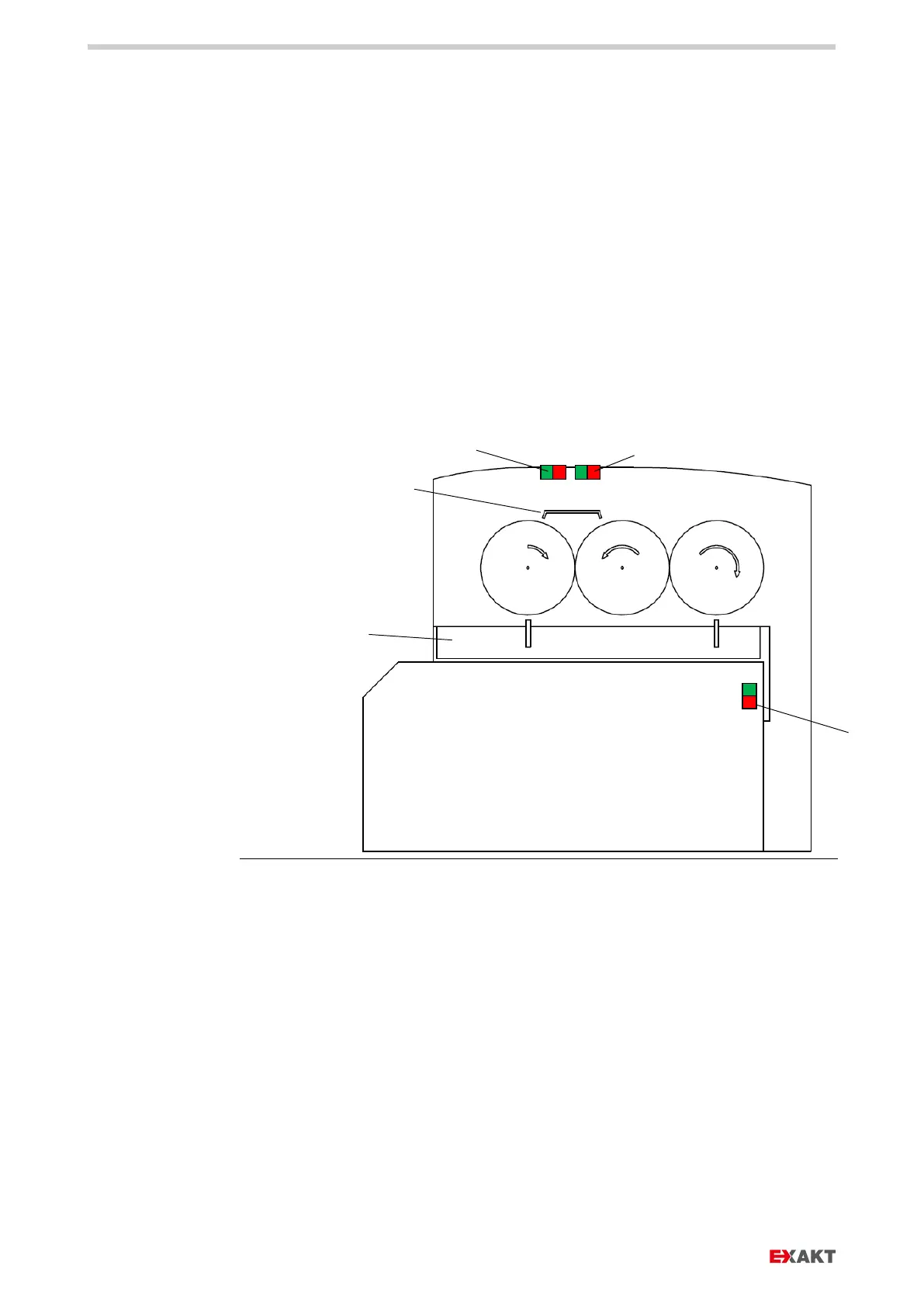

Fig.
13
: Safety devices cleaning
a Cleaning guard
b Safety sensor, nip gap
(gap 1)
c Splash tray with safety guard
d Safety sensor, splash tray
e Safety sensor, detects that
cleaning guard has been
selected
 Safety devices are
detected by safety
sensors
 Drive motor stops
 Separate safety sensor,
detects that cleaning has
been selected
 Gap values at maximum gap
value
b
a
d
c
e
