Exakt 80E Plus + - Mounting the Splash Tray

Setup
82
27891EN-900-02 / Edition 02/2017
10.9. MOUNTING THE SPLASH TRAY
Allen screwdriver 6 mm

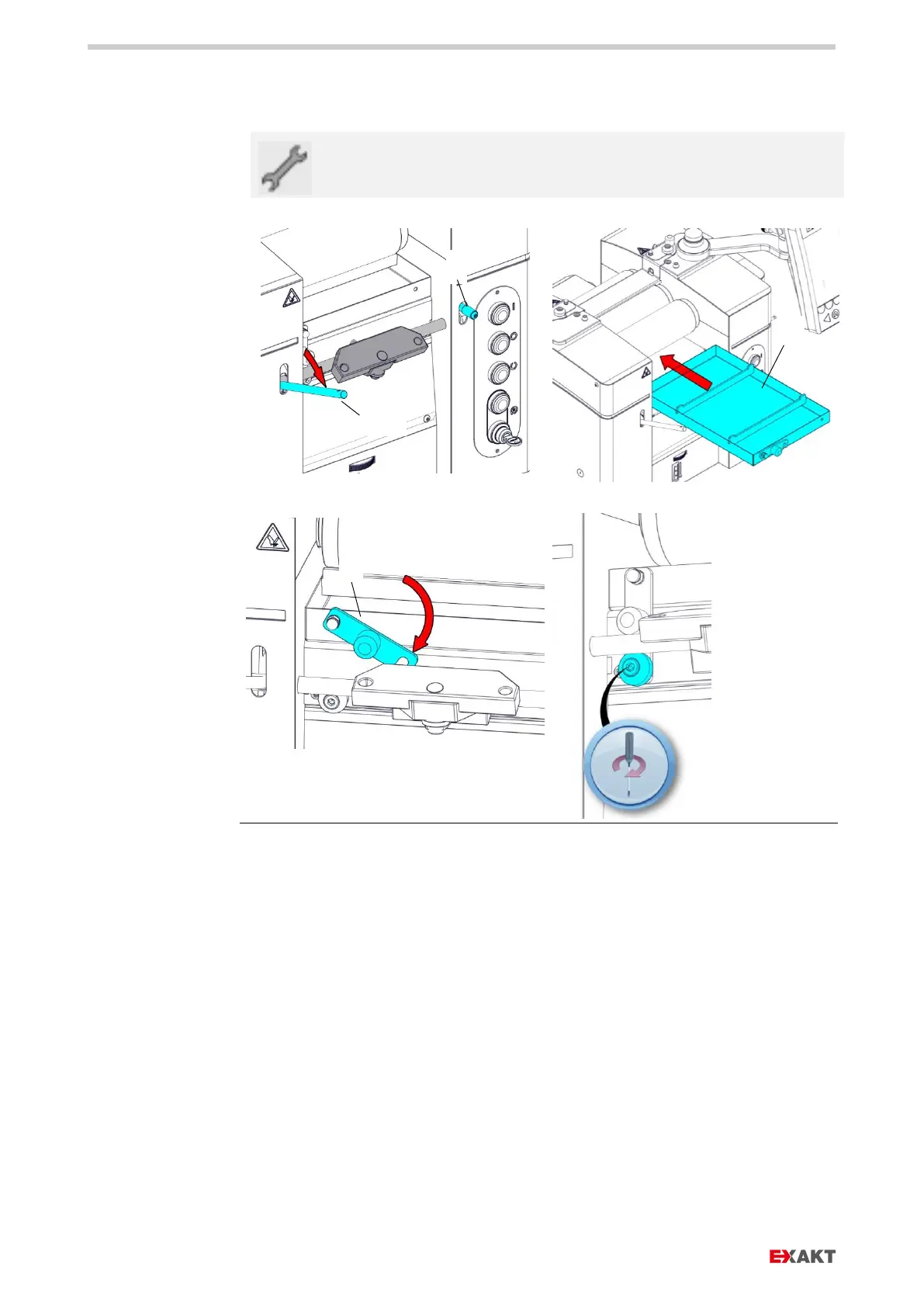

Fig.
55
: Mounting the splash tray
1. Swivel off scraper lever (a) until locking lever (b) snaps in.
2. Push in splash tray (c) from the front. Make sure that the splash tray does
not touch the rollers.
3. Swivel in latch (d).
4. Secure latch with Allen screwdriver.
a
c
d
b
