Exakt 80E Plus + - Connecting the Roller Temperature Control; Temperature Control Unit

Installation
68
27891EN-900-02 / Edition 02/2017
9.5. CONNECTING THE ROLLER TEMPERATURE
CONTROL
Link back to chapter 3 Installation information in advance
Screwdriver, knife

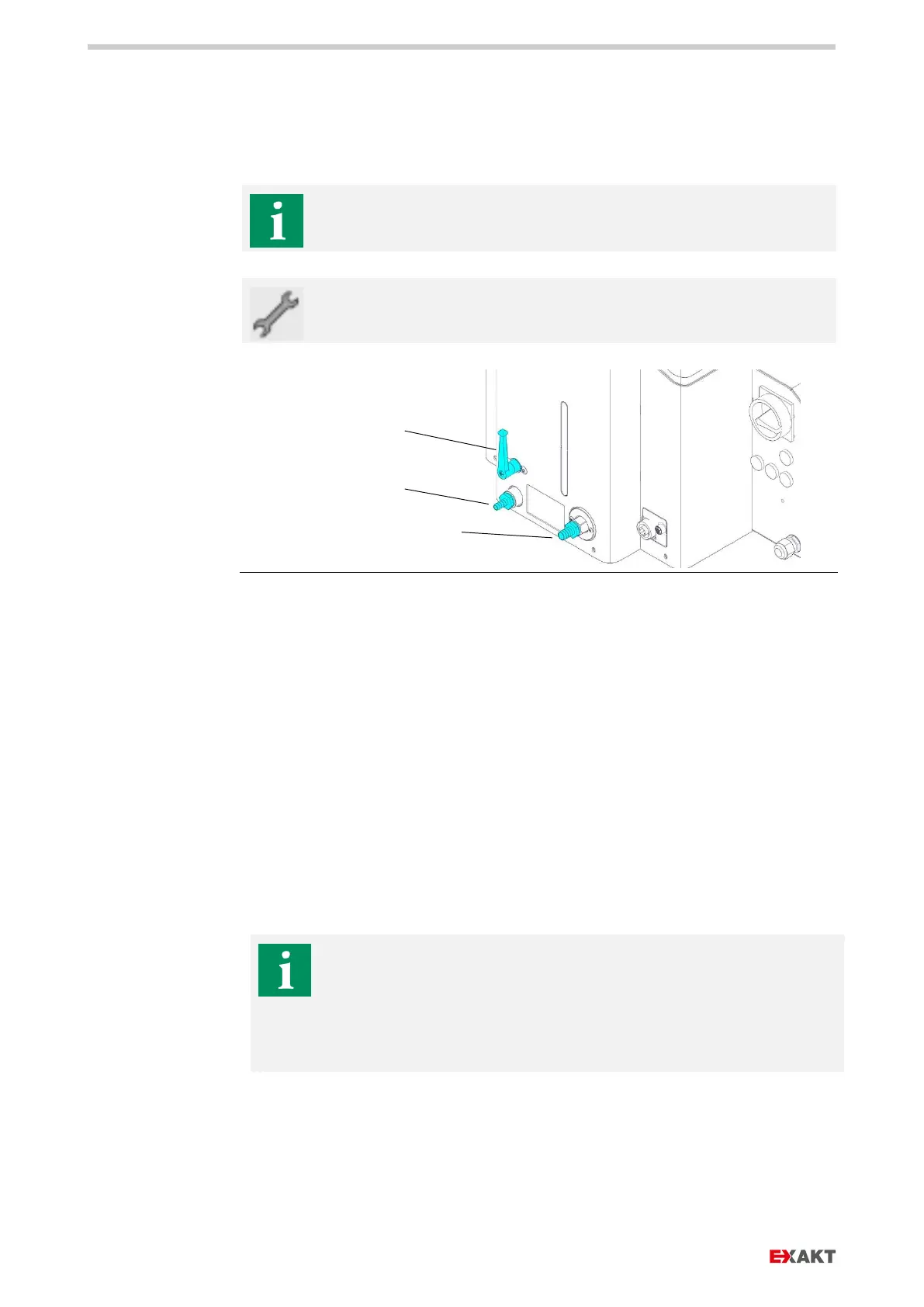

Fig.
43
: Temperature control connections
a Inlet flow nozzle OD 10 mm
b Return flow nozzle OD 13 mm
c Locking cock inlet flow
1. Connect hose (ID10 mm) to the inlet flow nozzle (a) and secure with a hose
clamp.
2. Connect return flow hose (ID 13 mm) to the discharge nozzle (b) and secure
with a hose clamp.
3. Make sure that the hose runs with a steady gradient without windings directly
to the temperature control unit to prevent overflow of the tempering fluid due
to obstructed return flow.
4. Open locking cock half way (in Fig. shown completely open).
9.5.1. TEMPERATURE CONTROL UNIT
For the temperature control of the three roller mill 80E PLUS,
EXAKT recommends using the cooling circulator bath
thermostat by HUBER, model MPC-K6. The unit can be
procured via EXAKT and is then delivered with tube connections
matching the three roller mill and with optimum control
configuration.
a
b
c
