7.7. CONTROL ELEMENTS
7.7.1. FRONT SIDE

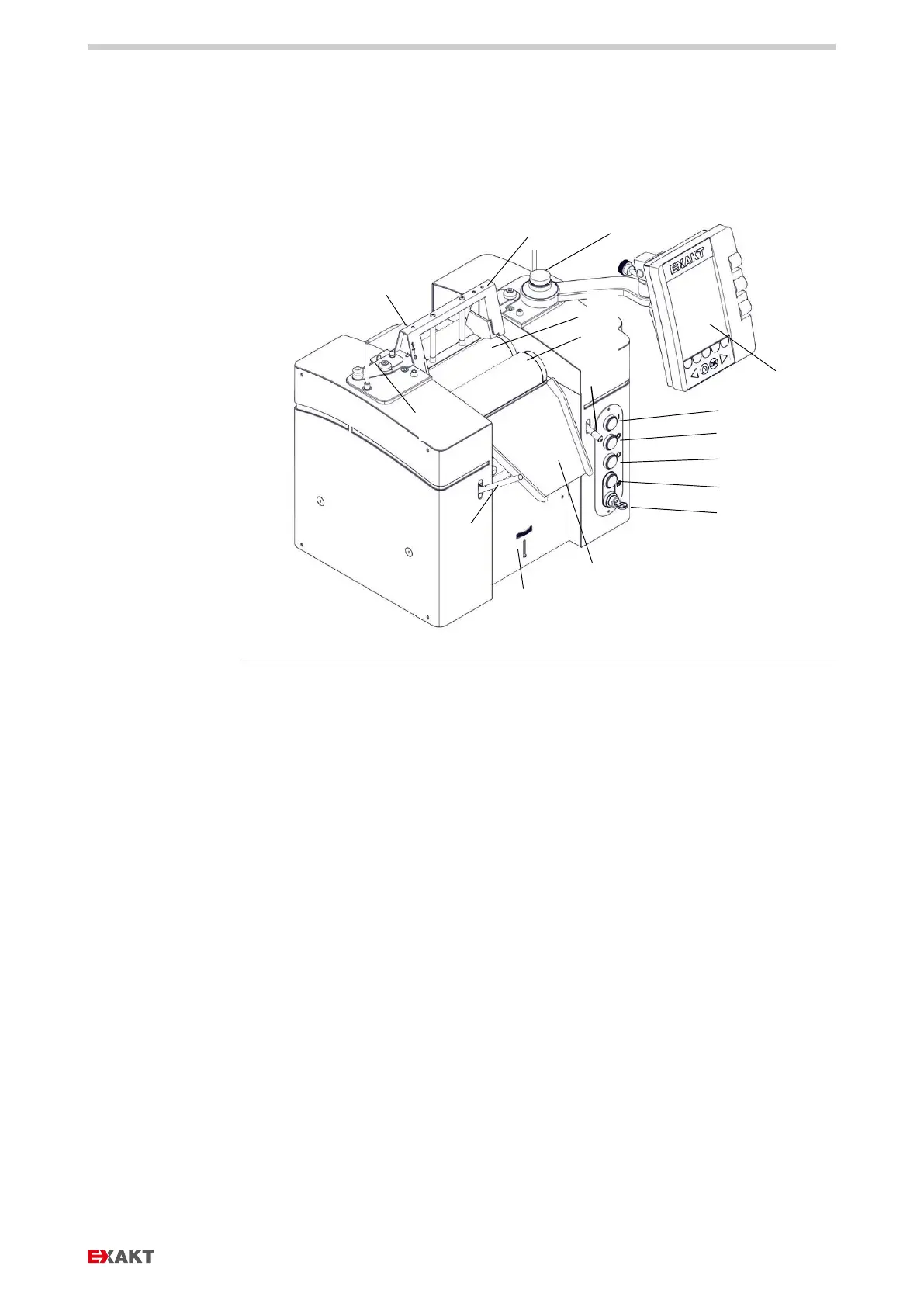

Fig.
20
: Unit front side
a Roller 1
b Roller 2
c Roller 3
d Safety device nip gap, various
e Operating unit
f Start button
g Stop button
h Receipt safety button
i Start button reversing mode,
to reverse the rollers in case
of overload by a product with
excessive viscosity
j Key switch „Release Reverse“
k Emergency stop button,
locking
l Scraper socket, with scraper
knife, various
m Antenna stop switch,
2 pieces (Option)
n Scraper lever, to swivel off the
scraper socket
o Locking lever, to lock in
swiveled off position
p Setting dial for scraper force,
with scale
