7.8.2. PRESSURE COOLING
NOTE
Danger of destroying the seals in the rotary units (b).
› With pressure cooling, always ensure coolant flow during operation.
Fig.
24

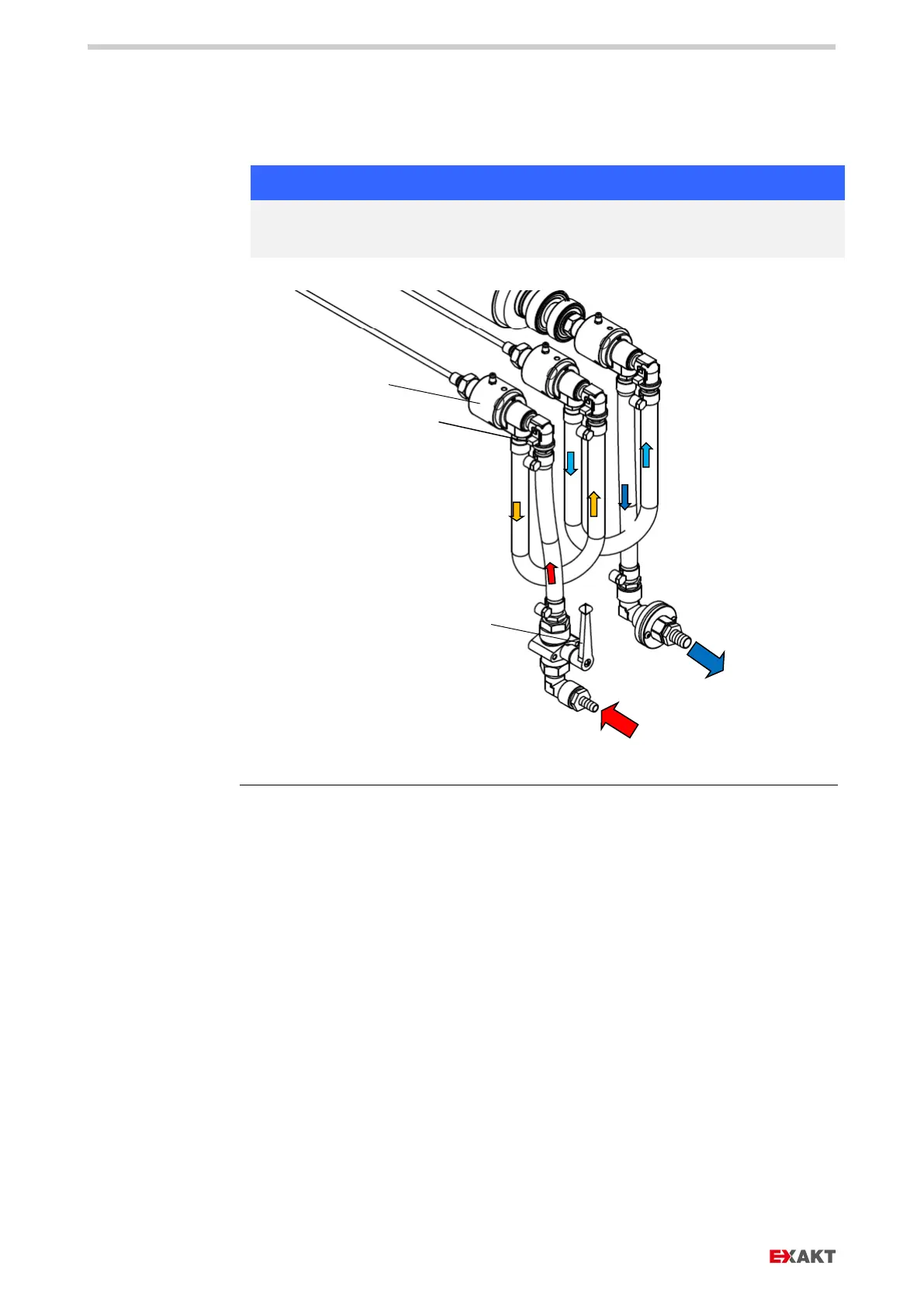

: Pressureless cooling, flow-through direction standard
a Locking cock
b Rotary unit (3x)
c Temperature sensor (3x)
 3 temperature sensors for
inlet flow temperature
 1 temperature sensor for
ambient temperature
 Flow-through direction can
be reversed (optional)
b
a
c
