Exakt 80E Plus + - Backside

Unit description
38
27891EN-900-02 / Edition 02/2017
7.7.2. BACKSIDE
Fig.
21

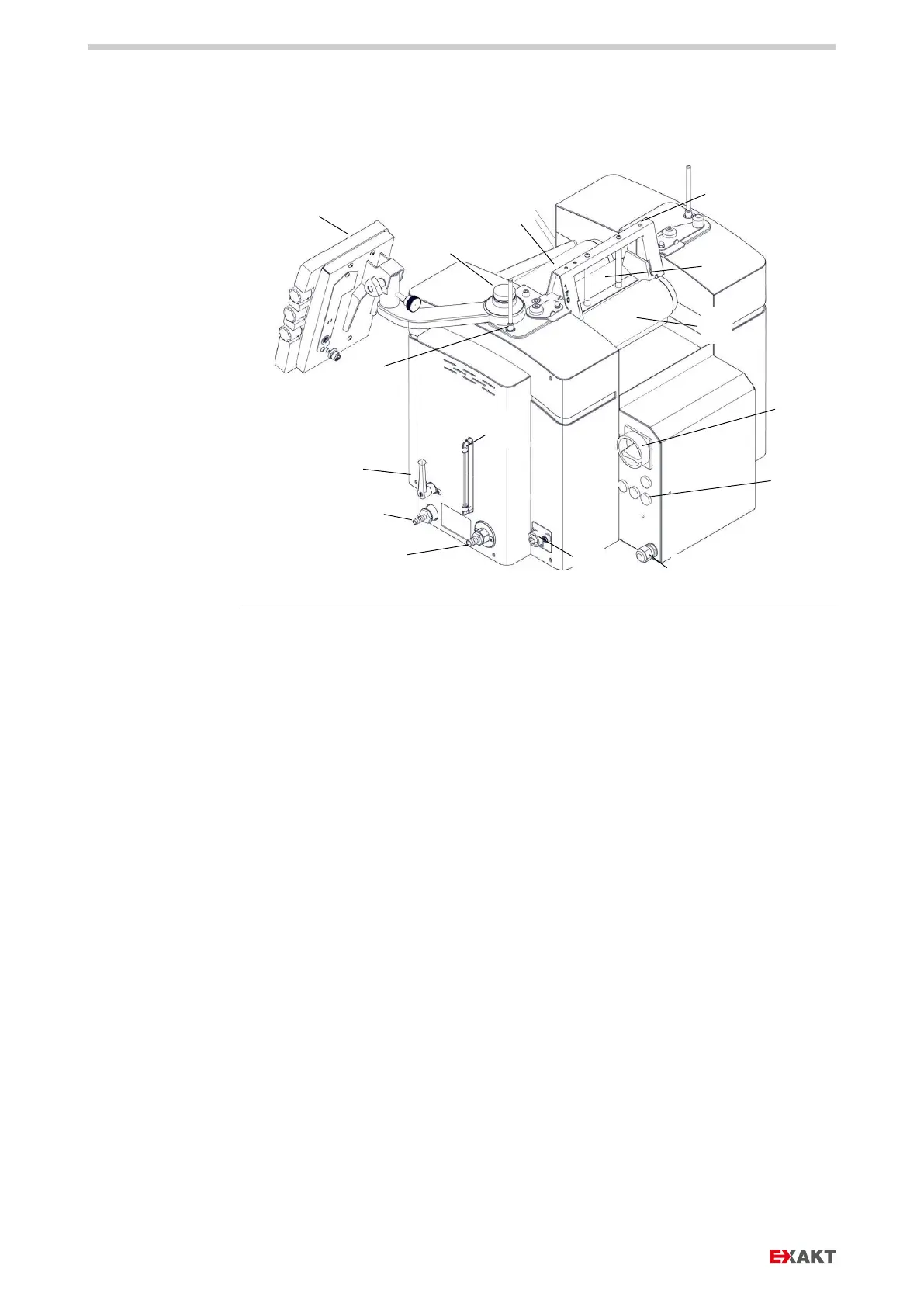

: Unit backside
a Roller 1
b Roller 2
c Roller 3
d Safety device nip gap, various
e Operating unit
f Main switch ON/OFF, lockable
g Fuses
h Power cable input
i Emergency stop button,
locking
j Connection for roller
temperature control (inlet flow)
k Connection for roller
temperature control (return
flow)
l Locking cock inlet flow
m Level indication return flow
(only with pressure-free
cooling)
n Antenna stop switch,
2 pieces
o External interfaces (optional)
