Exakt 80E Plus + - Mounting and Aligning the Operating Unit

Installation
61
27891EN-900-02 / Edition 02/2017

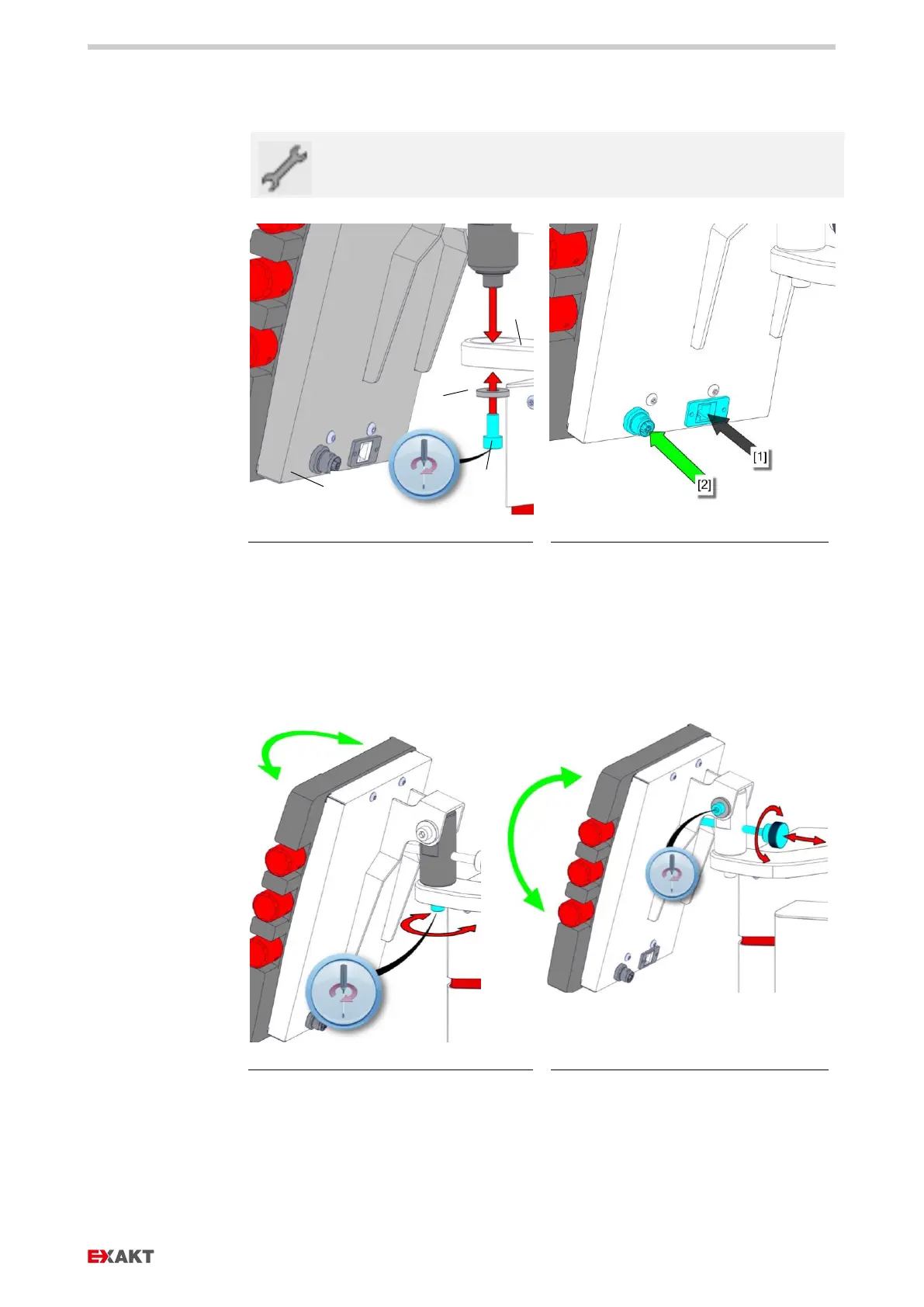

9.3. MOUNTING AND ALIGNING THE OPERATING UNIT
Allen screwdriver 6 mm
Fig. 38: Mounting the operating unit
Fig. 39: Connecting the plug connections
1. Mount the operating unit (a) in the holder arm (b) with the screw (c) and the
washer (d).
2. [1] Plug in network cable (black)
3. [2] Plug green cable onto the plug connector and secure with union nut.
Fig. 40: Aligning the operating unit horizontally
Fig. 41: Aligning the operating unit vertically
a
d
b
c
