Exakt 80E Plus + - Overview; Section View

Unit description
28
27891EN-900-02 / Edition 02/2017
7.2. OVERVIEW
7.2.1. SECTION VIEW

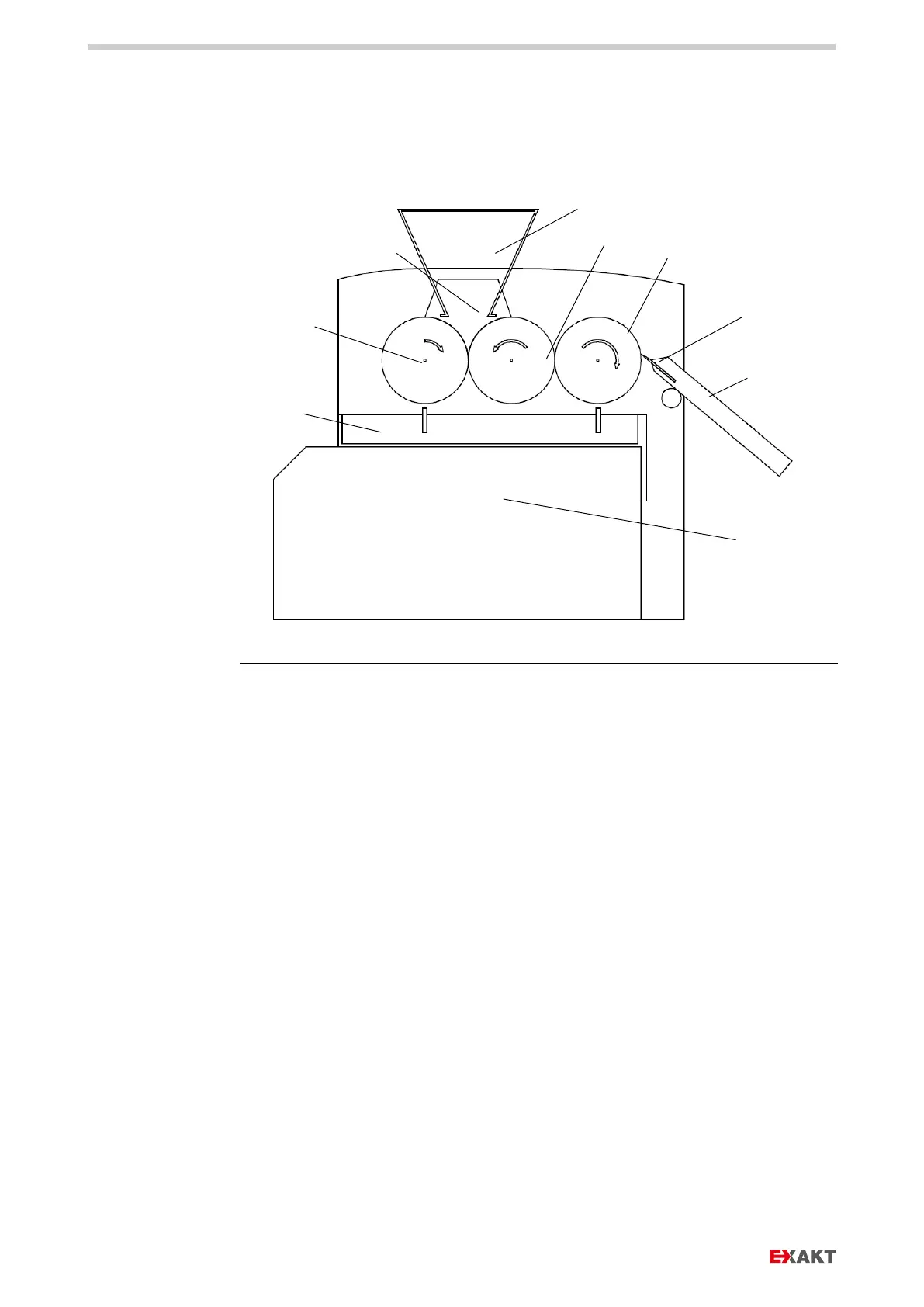

Fig.
6
: Section view
a Roller 1
b Roller 2
c Roller 3
d Plastic guides
prevent an overflow of the product at the
roller ends.
e Safety device gap 1 (nip
gap), divers
f Splash tray with safety
guard
g Scraper knives, various
h Scraper socket
i Drive unit
b
i
c
g
h
f
a
d
e
