Exakt 80E Plus + - Mounting Splash Guards for Inner Side Paneling

Setup
95
27891EN-900-02 / Edition 02/2017
10.17. MOUNTING SPLASH GUARDS FOR INNER
SIDE PANELING
Allen screwdriver 6 mm
The splash guards (a) for the inner side paneling facilitate
cleaning the side paneling as the plates can be removed for
cleaning.

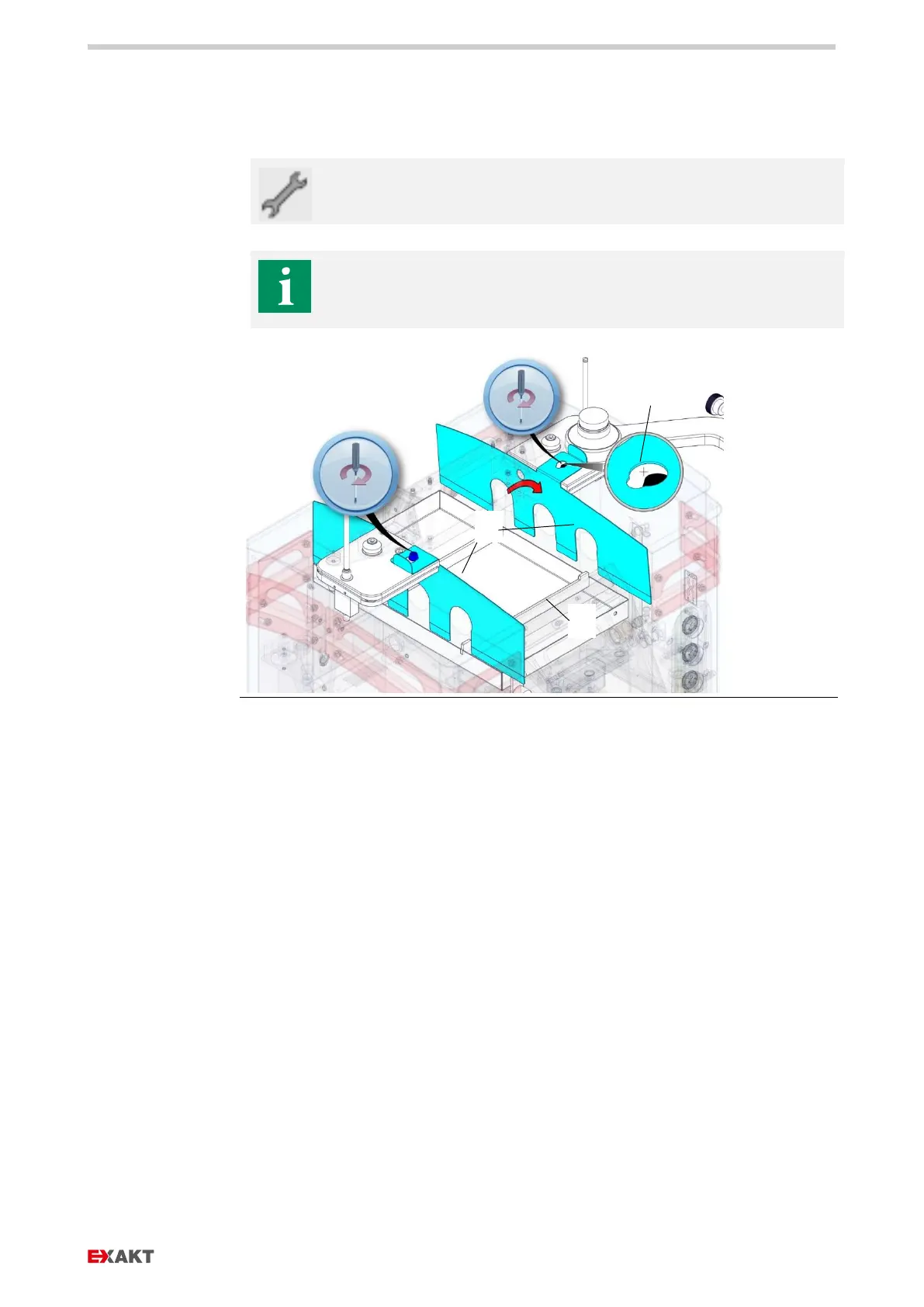

Fig.
67
: Mounting splash guard for inner paneling
› The plastic guides must have been removed.
› The splash tray (b) must be mounted.
1. Undo blue or black screw, respectively, at the central unit.
2. Push in splash guards (a) from above.
3. Push with the lock cutout (c) over the screw and engage.
4. Tighten blue or black screw, respectively.
b
a
c
