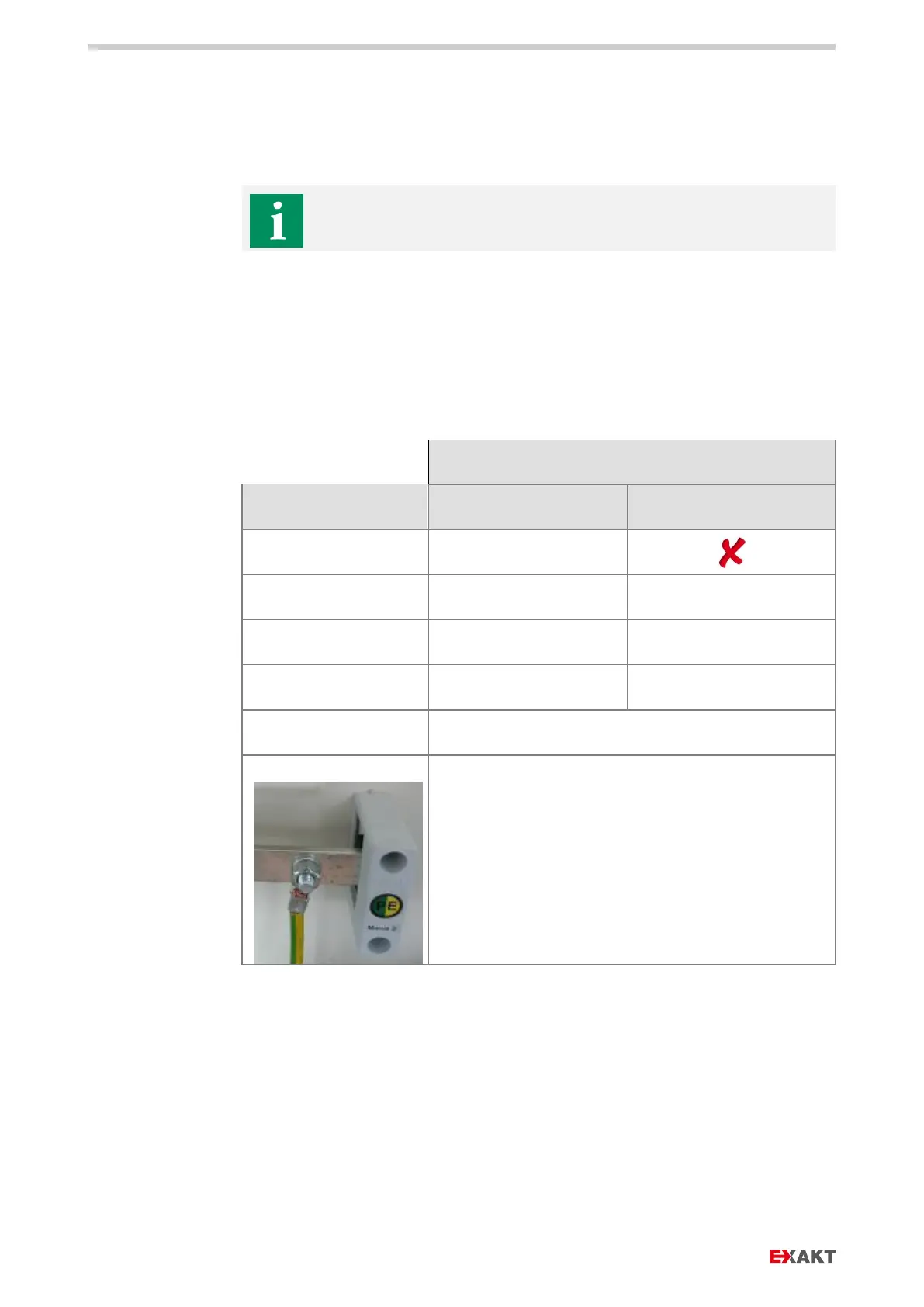

9.4.3. CONNECTION VARIANT 2: FIXED CONNECTION
WITH CODED HEAVY DUTY CONNECTOR
Link back to chapter 3 Installation information in advance
Upon request, EXAKT will deliver the machine with heavy duty connector
HARTING type: Han 6x. This connection variant does not require a ground fault
circuit interrupter and ensure proper operation.
A corresponding wall-mounting socket HARTING type: Han 6x with plug insert
6-poles will be provided which shall be connected as follows:
Label (color)
Mains supply
400 V
200 V (USA, Jap.)
N (MP)
PIN 4
L1
PIN 1
PIN 4
L2
PIN 2
PIN 5
L3
PIN 3
PIN 6
PE
PE
PE rail
none (16 mm² green/yellow)
Eye 8 mm
