Installation

67

27891EN-900-02 / Edition 02/2017

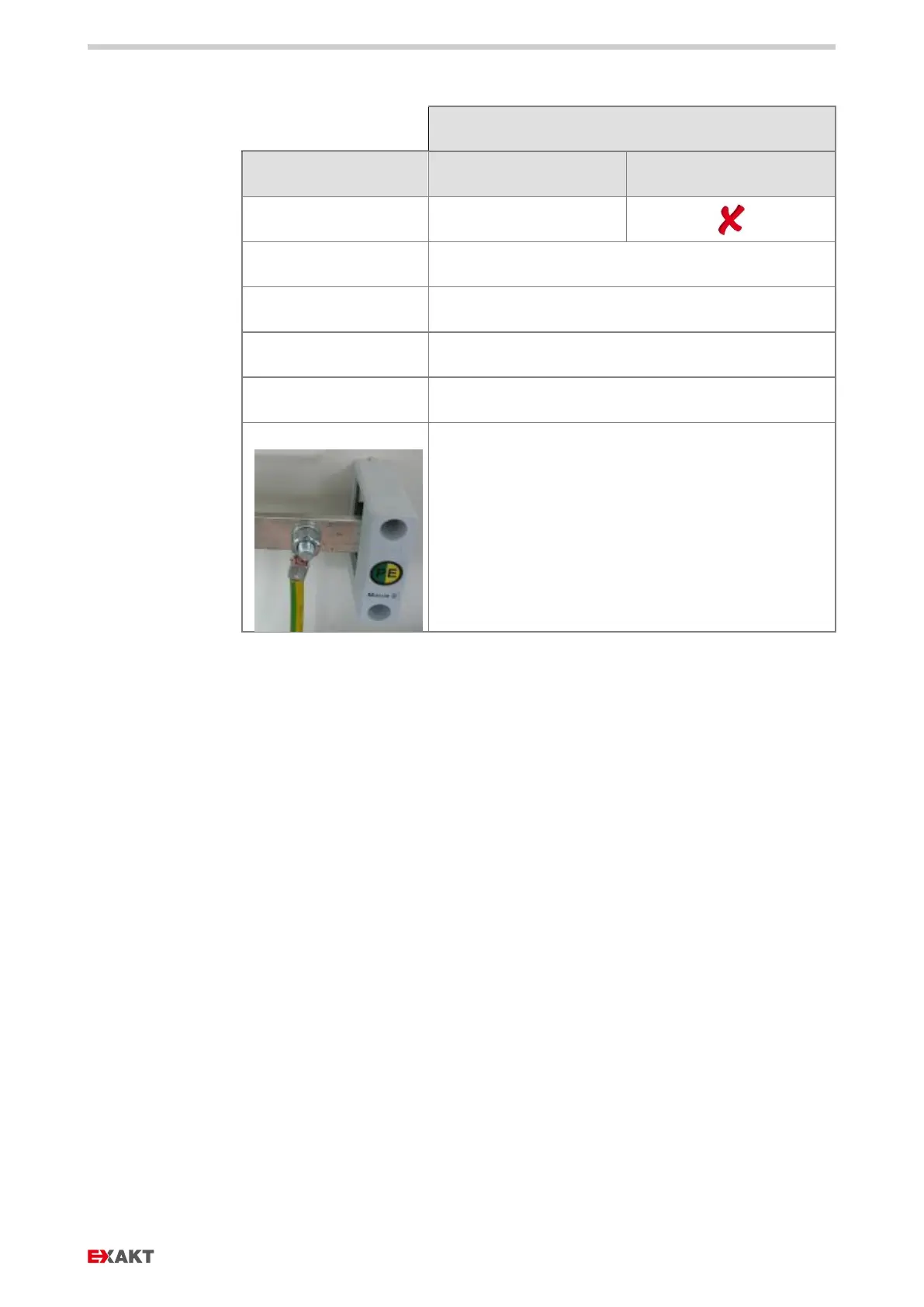

Label (color)

Mains supply

400 V

200 V (USA, Jap.)

N (MP)

N (black)

L1

L1 (black)

L2

L2 (black)

L3

L3 (black)

PE

none (green/yellow)

PE rail

none (16 mm² green/yellow)

Eye 8 mm
