Operation

118

27891EN-900-02 / Edition 02/2017

5. Confirm with or .

6. Back to routine operations with .

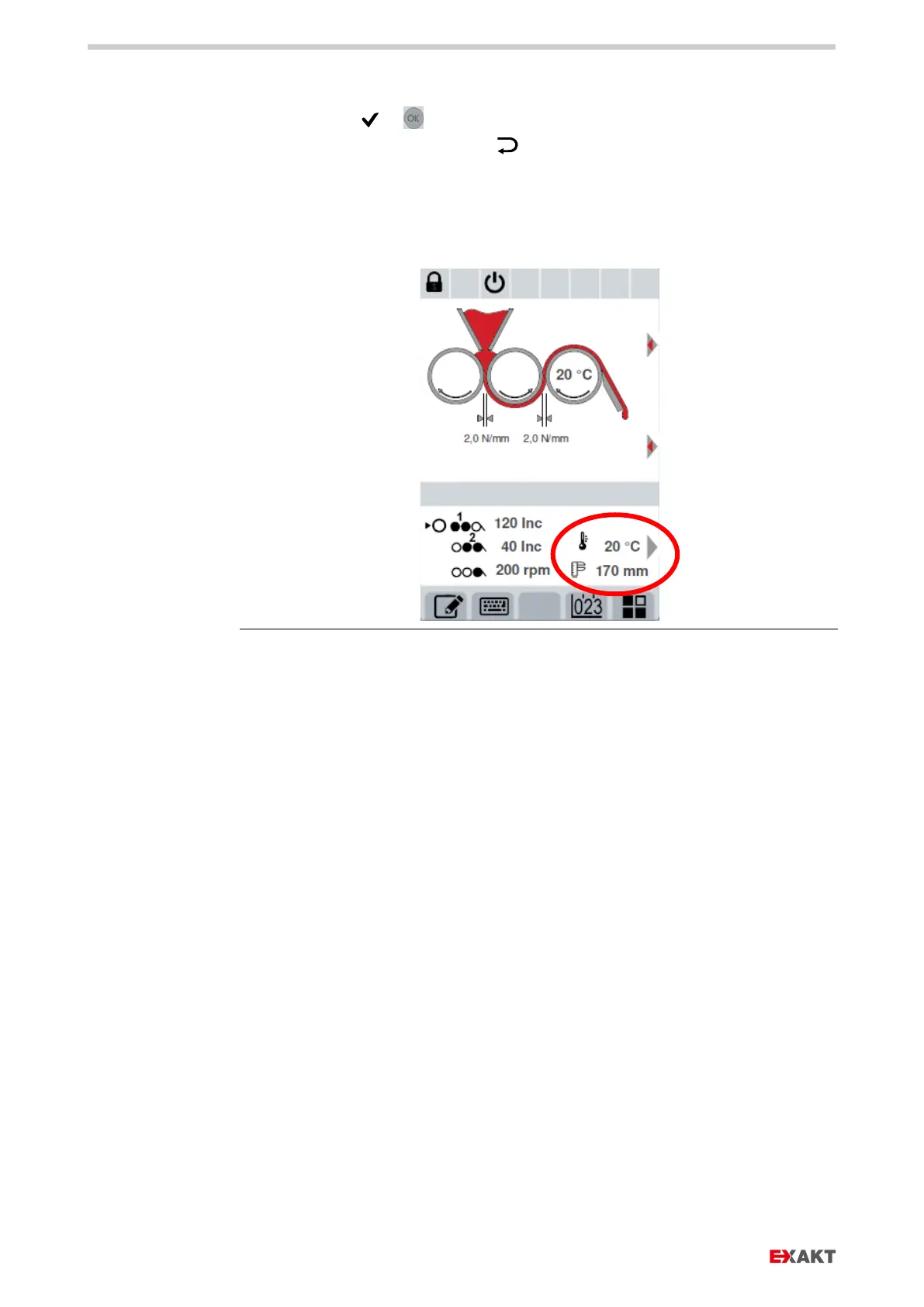

Fig.

: Display values for working width and temperature setting instruction for external temperature control unit
