Transport
53
Edition 09/2016

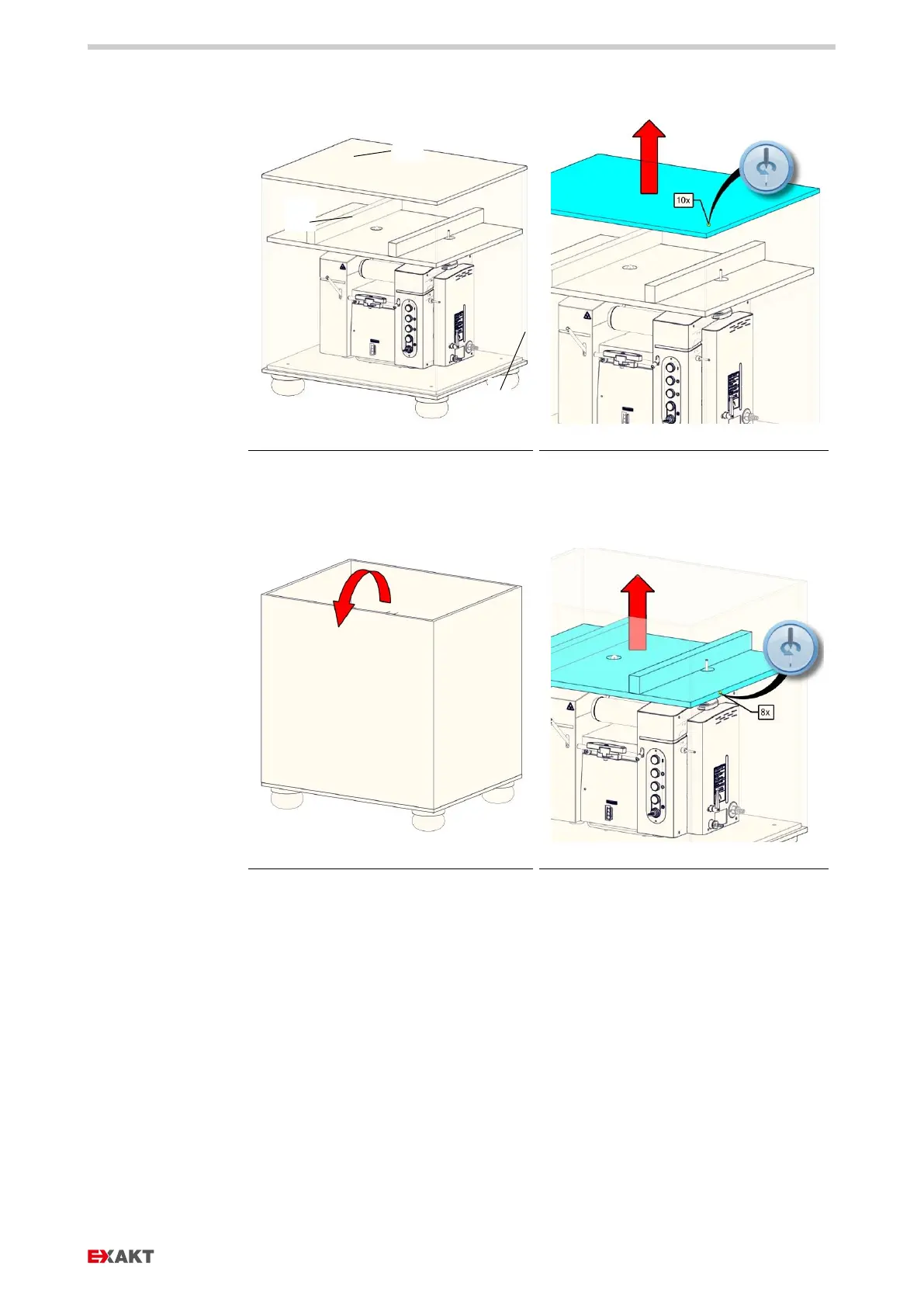

Abb. 27: Machine crate
Abb. 28: Remove crate top cover
1. Unscrew the crate top cover (a), 10 screws.
Abb. 29: Take out machine accessories
Abb. 30: Remove intermediate cover
2. Take out the machine accessoires and store it at a safe place..
3. Unscrew the intermediate cover (b), 8 screws.
4. Remove the intermediate cover.
a
c
b
