Setup
79
27891EN-900-02 / Edition 02/2017

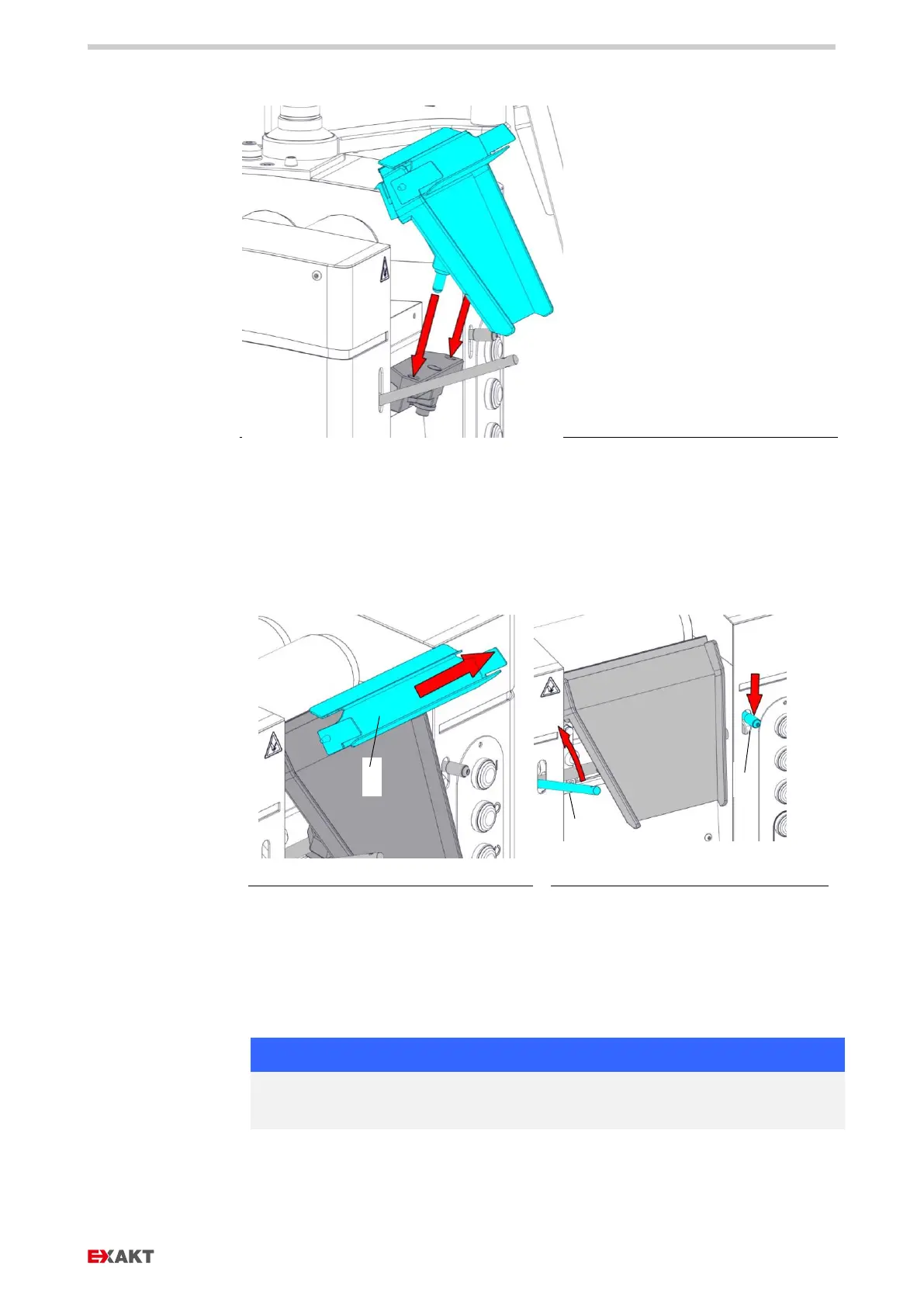

Fig.
: Set scraper onto scraper base
4. Check location hole at the scraper for impurities.
5. Set scraper socket (with scraper knife and knife guard for scraper socket)
onto the two pin receptacles. Make sure that the scraper socket sits
completely and is not "tilted".
Fig. 51: Removing knife guard
Fig. 52: Swiveling in scraper
6. Remove the knife guard (a).
7. Swivel off the scraper lever (b) and unlock locking lever (c) (press down).
8. Carefully swivel the scraper socket to the roller.
Ceramic scraper knife Danger of breakage
› In particular with ceramic scraper knives, pay attention to careful handling.
