Setup
86
27891EN-900-02 / Edition 02/2017

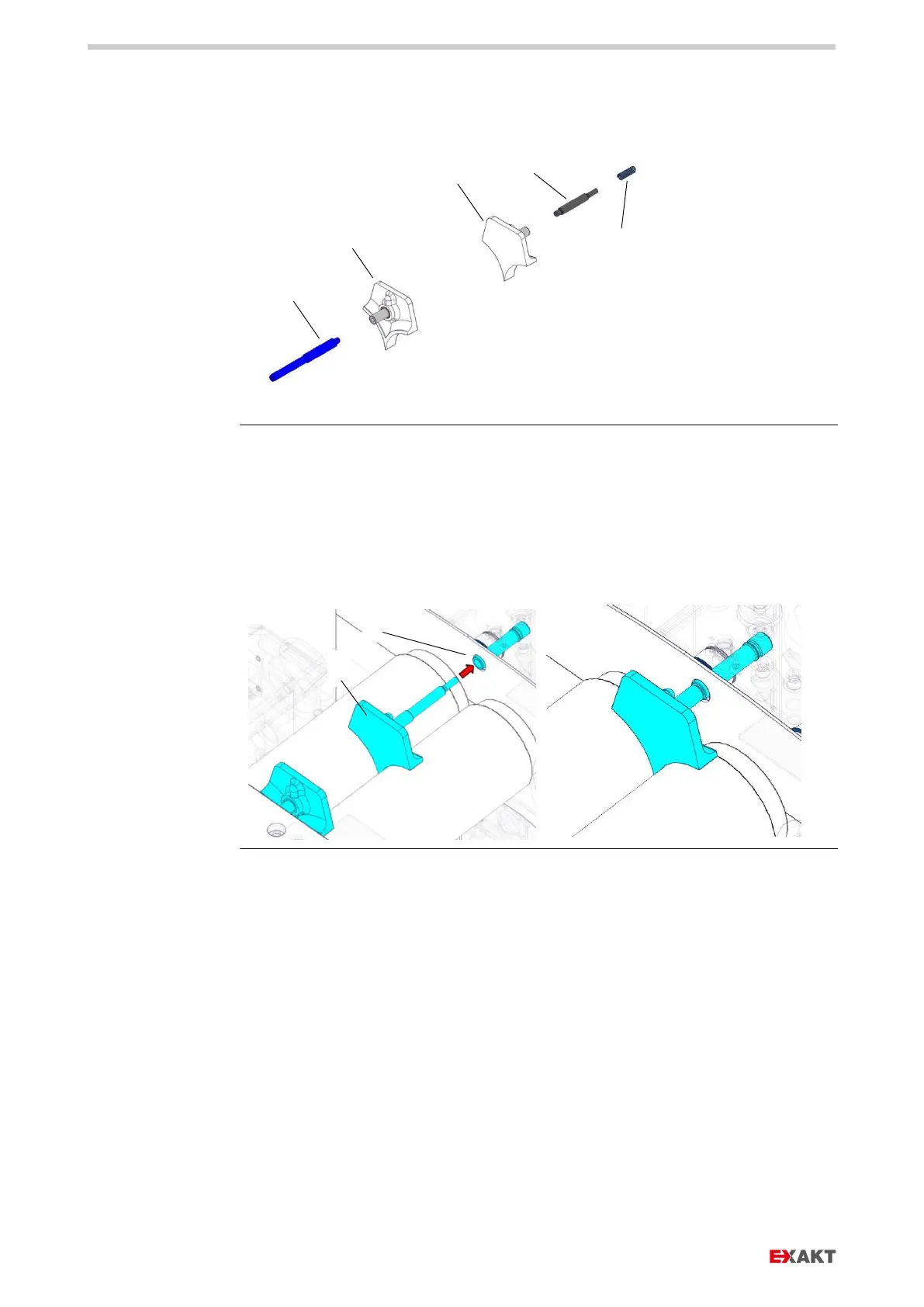

Fig.
57
: Plastic guide WW 85mm and 170mm: Assembling parts
1. Select guide shafts for the desired working width
2. Screw guide shaft (b, c) into plastic guide (a) hand-tight.
3. For working with hopper, additionally push the springs (d) onto the guide
shafts 170. The springs seal the guides against the hopper.
Fig.
58
: Inserting plastic guides for working width 85 mm and 170 mm
(Shown here: working width 170 mm)
4. Insert guide shaft (a) into the hole of the guide tube (b).
5. Lift guide shaft slightly with index finger.
6. Push in plastic guide up to the stop.
b
c
d
a
a
a
b
