Exakt 80E Plus + - Page 90

Setup
88
27891EN-900-02 / Edition 02/2017

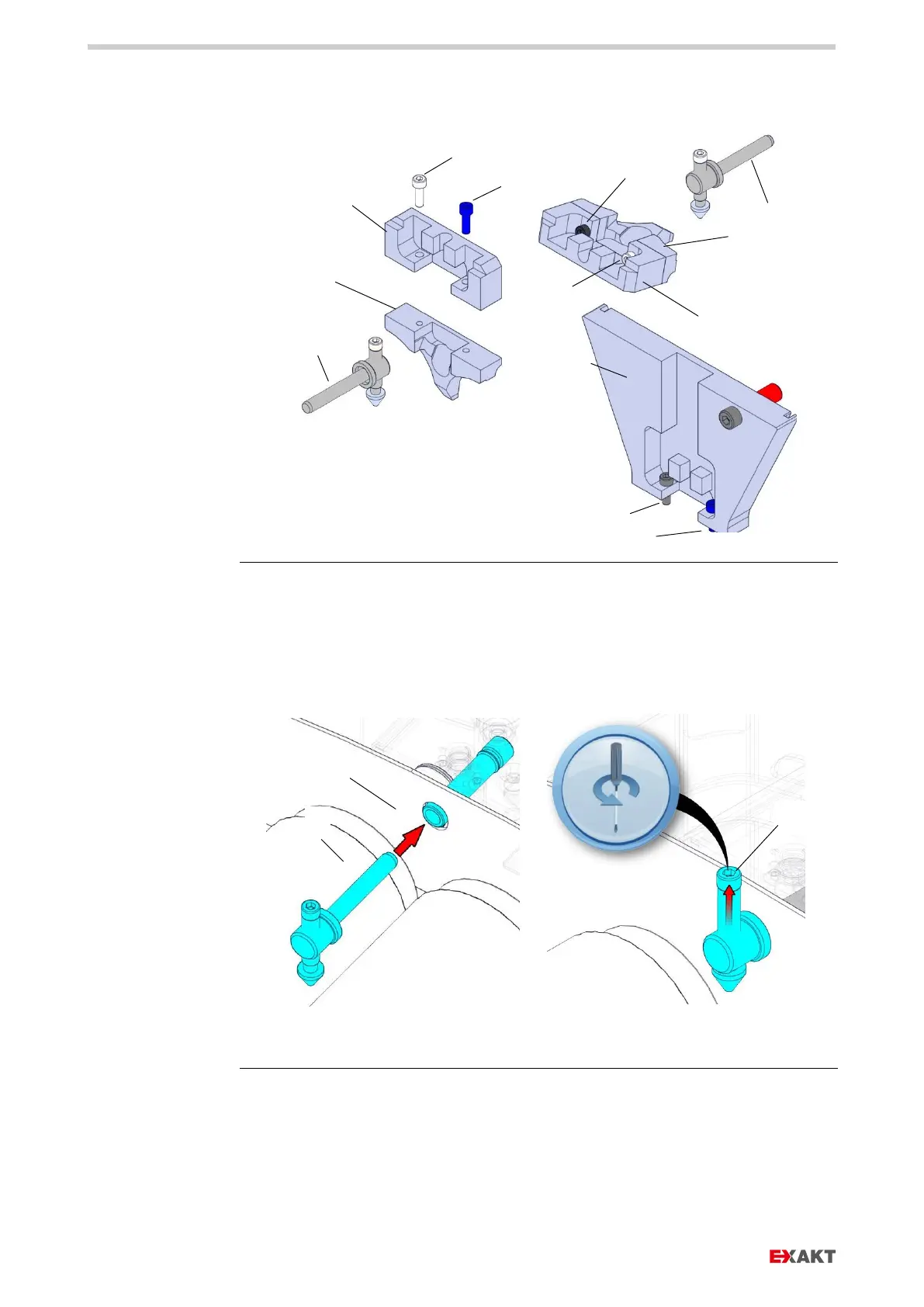

Fig.
59
: Plastic guide working width 200mm: assembling parts
1. Screw together plastic guide - shoulder guide (a) with top for shoulder guide
(b) / top shoulder guide, hopper (b.1). Pay attention to the color code with the
blue or black screw, respectively. The front edges of the plastic guide and the
tops must be flush.
Fig.
60
: Plastic guide working width 200mm: assembling parts
2. Insert clamping cone for shoulder guide (f) into the drilled hole of the guide
tube (g).
3. Lift clamping cone slightly with index finger.
4. Push in clamping cone up to the stop.
f
c
c
f
b
a
b
c
d
e
a
f
b.1
d
g
h
