S2000 Elite - User's Guide
035-00707 Revision 1
22

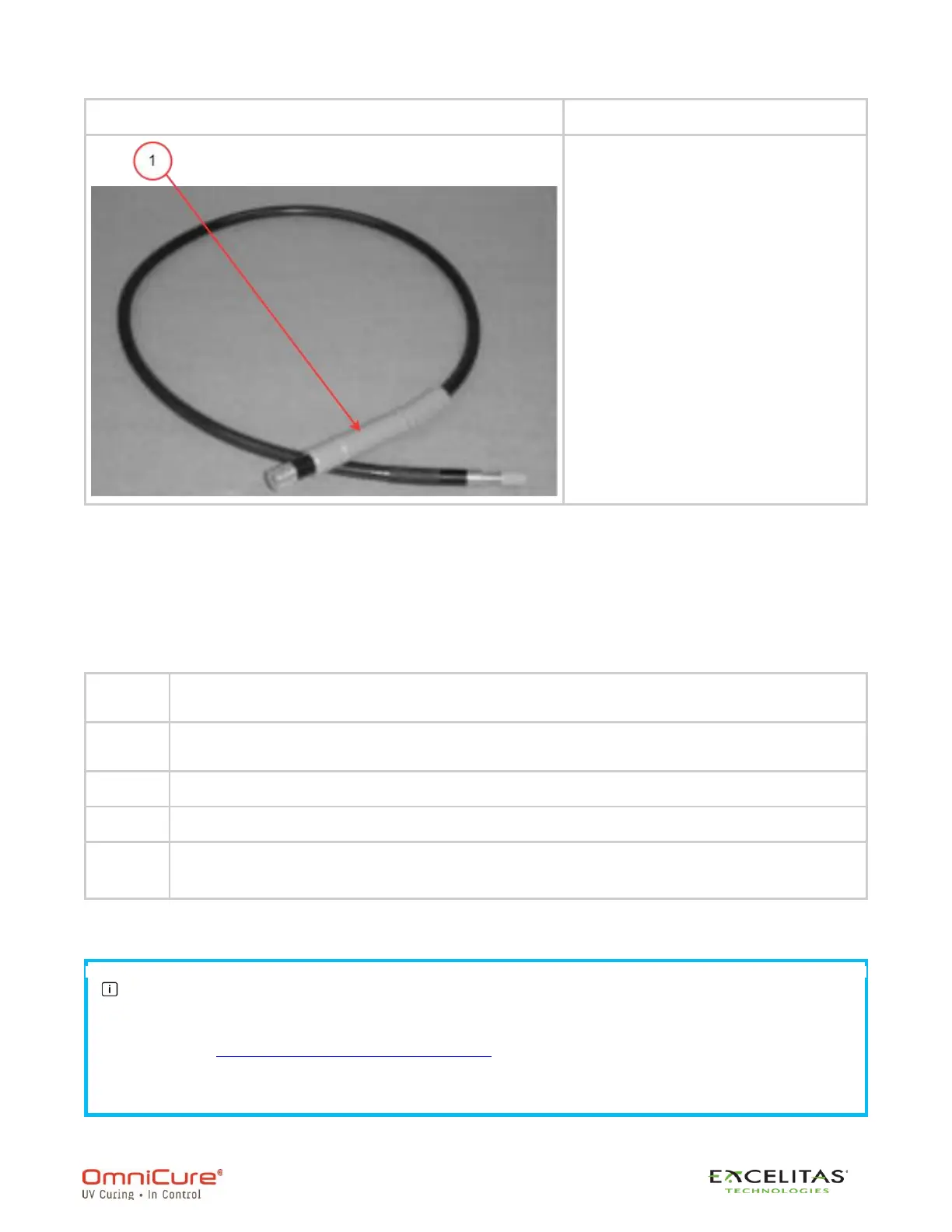

1. Light Guide Strain Relief
1. During installation or removal, grasp the light guide on the strain-relief nearest to the
input end of the light guide.
2. To remove the light guide, firmly grip the strain relief near the light guide retainer and
pull out firmly.
When the light guide is fully inserted while the unit is powered ON, the light ring will illuminate
to one of the four colours possibilities:
Light Guide inserted – Lamp is OFF
Light Guide inserted – Closed-loop Feedback Active
Light Guide inserted – Closed-loop Feedback Inactive
Light Guide inserted – Closed-loop Feedback Active; Calibration close to
expiration (closed loop feedback at 95% to 99% intensity level)
If the light guide is not inserted or improperly inserted, then the light ring will illuminate RED.
The shutter will not open if the light guide is not fully inserted.
Refer to Light Guide Cleaning Instructions for instructions on how to clean your light
guides
