4.2. Adjusting the Light Output in the Absolute Mode
Absolute mode allows the user to control the output using irradiance value. It allows for more
control over output that is not dependent on the maximum output of the bulb inside. This mode
is only available after the S2000 Elite has been calibrated using the R2000 Radiometer.
Removing the light guide at any time from the front panel light guide port will require
re-calibration of the S2000 Elite.
Ensure that lamp is ON. By default, the lamp should turn ON when the unit powers
up. If not, press the LAMP icon
1. Navigate to the Run Screen to see the light output controls.

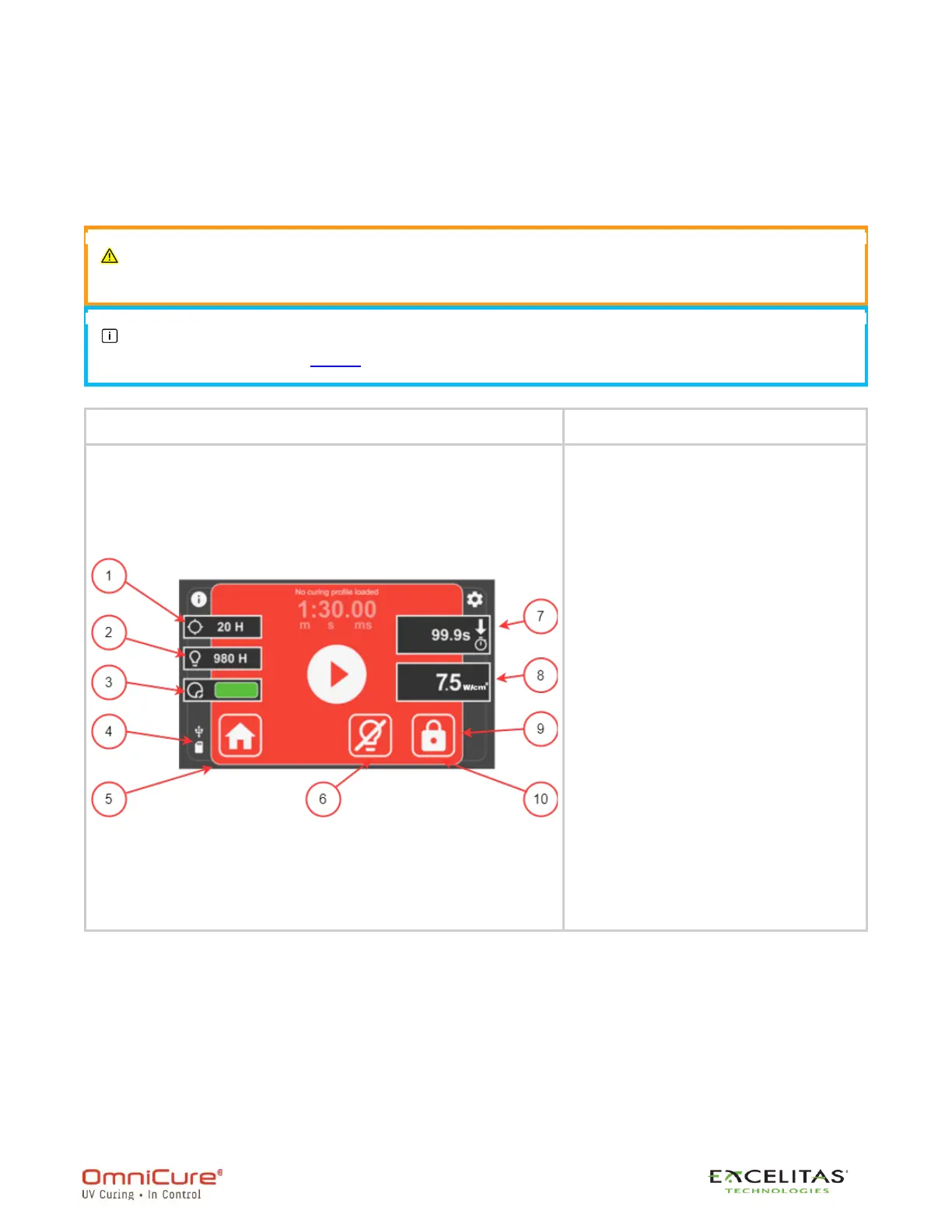

Figure 1: Run Screen Controls (Absolute Mode)
1. Displays remaining
calibration (h)
2. Displays remaining lamp life
(h)
3. Displays closed-loop
feedback status
4. External SD card present
5. Select to return to main
screen
6. Start/stop exposure
7. Select to set a countdown
time for exposure duration.
set to 0 to count up.
8. Select to set the exposure
intensity. Irradiance is
displayed for absolute
mode
9. Select to lock/unlock the
screen
10. Select to turn lamp off
(sleep)
The light intensity setting will be displayed with irradiance or power units to indicate that it is
running in absolute mode.
Select the desired time for the light output by using the LEFT/RIGHT directional buttons on the
front panel or touch the TIME box on the touch screen and enter the desired time.
• Count down mode: If a time value greater than ZERO is selected, then the timer will be
set to COUNT DOWN mode. This will be further indicated by an arrow pointing DOWN
