3.4. Inserting and Removing the Light Guide
3mm single leg liquid light guides are not compatible with the S2000 Elite.
1. Ensure that any protective end caps are removed from all ends of the light guide prior to
installation.
2. Clean the input and output ends as needed to ensure proper light transmission.
3. Insert the light guide into the light guide port located on the front panel of the unit.
4. Push the light guide in until it sits with a second positive "click".

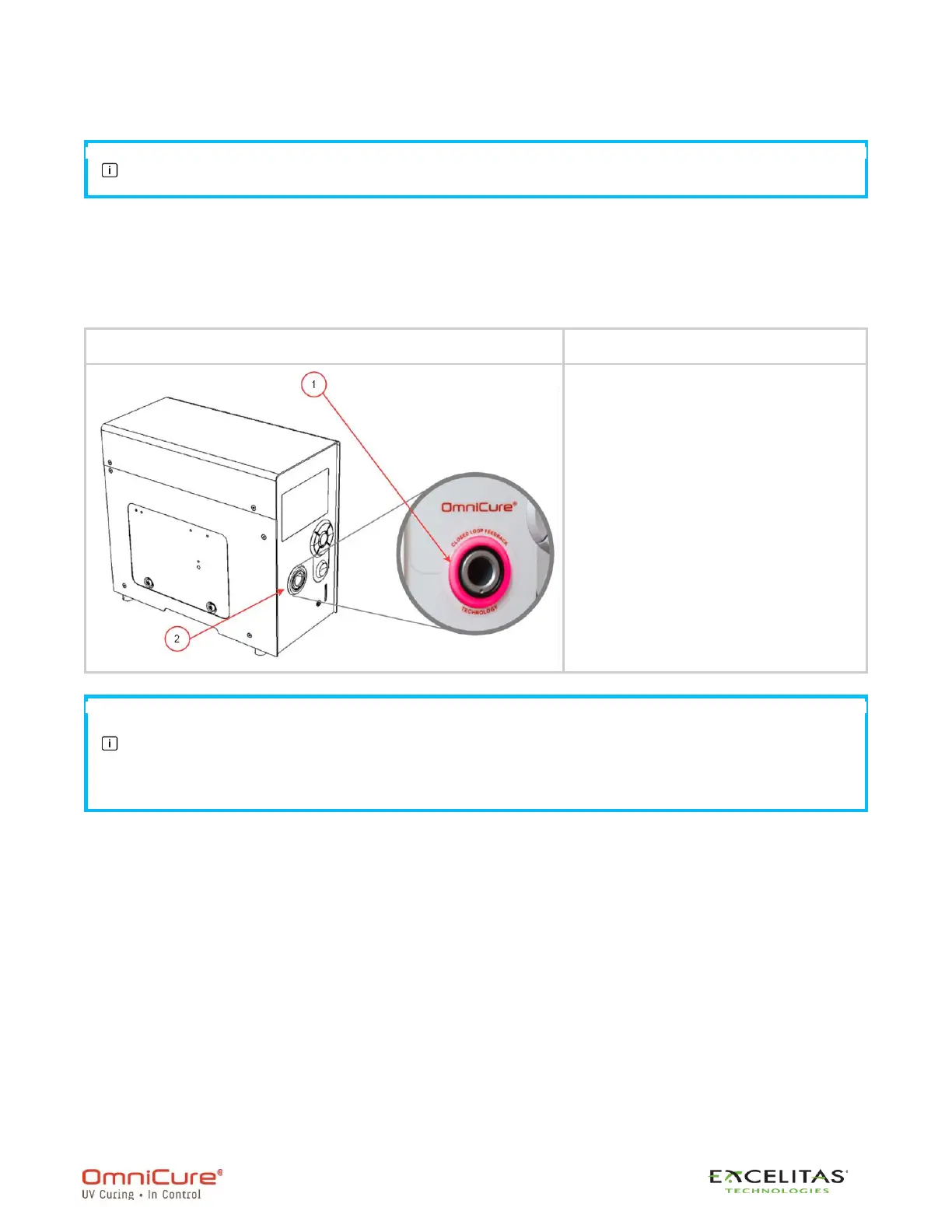

Light Guide Port and Light Ring
1. Light Ring
2. Light Guide Port
Never grip the light guide during installation or removal in a place other than the
strain relief portion of the light guide.
