S2000 Elite - User's Guide
035-00707 Revision 1
20

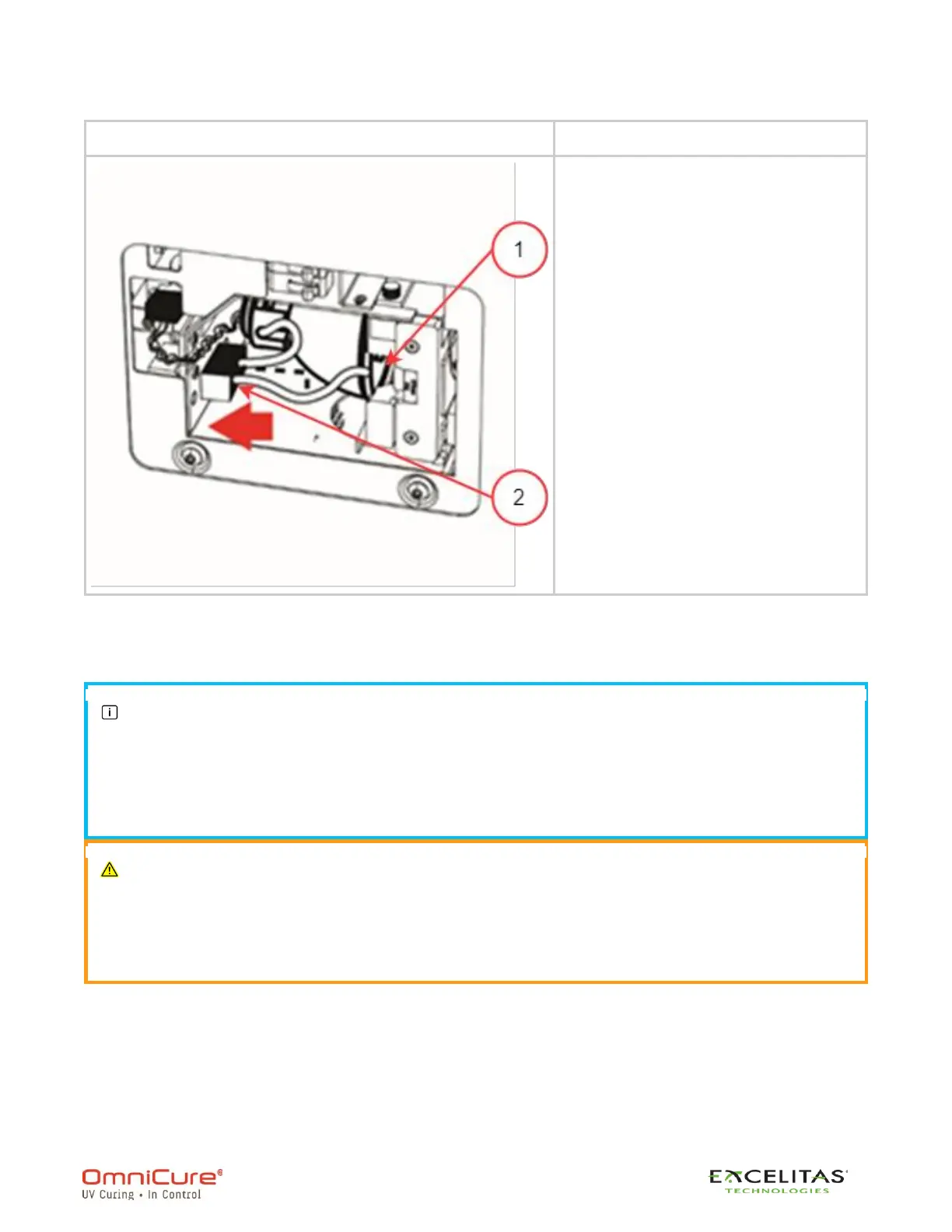

Figure 5: Lamp Connections
1. Center Bar and Lead Within
the Cutout.
2. Power Connector
1. Locate power connector with two leads shown in Figure 5 and connect it to the mate
located on the side of the lamp-housing wall.
2. Replace the lamp housing side panel (door) and tighten the fastening hex screws
shown in Figure 1.
If the lamp housing panel is not secured completely, the system will not turn on.
If an incompatible lamp has been installed in the unit, the system will not strike the
lamp.
Blank Filter 019-00392R is only compatible with Surface Cure lamp 012-69000R.
Using a Blank Filter with Standard lamp 012-68000R is not supported. Using this
unsupported configuration may result in system errors if intensity is set too high and
will accelerate Light Guide and System degradation. This configuration is not
supported by the System and Light Guide warranty.
