S2000 Elite - User's Guide
035-00707 Revision 1
41
5.1. Touch-Screen Interface
The touch-screen interface is the default control method for the S2000 Elite. The user can
access the touch-screen interface after the system has booted up into the main screen. The
touch-screen or the physical keypad can be used to navigate through the different screens and
options.
After the unit has booted up successfully, the user will be presented with the main screen. The
main screen will display the effective lamp life remaining, the remaining calibration time, and
the current system time on the left pane. The middle pane will show the state of the lamp: if the
lamp is in warm-up phase, cool-down phase, sleeping, or ready to use. There are three
buttons on the screen and their functions and icons are described below.

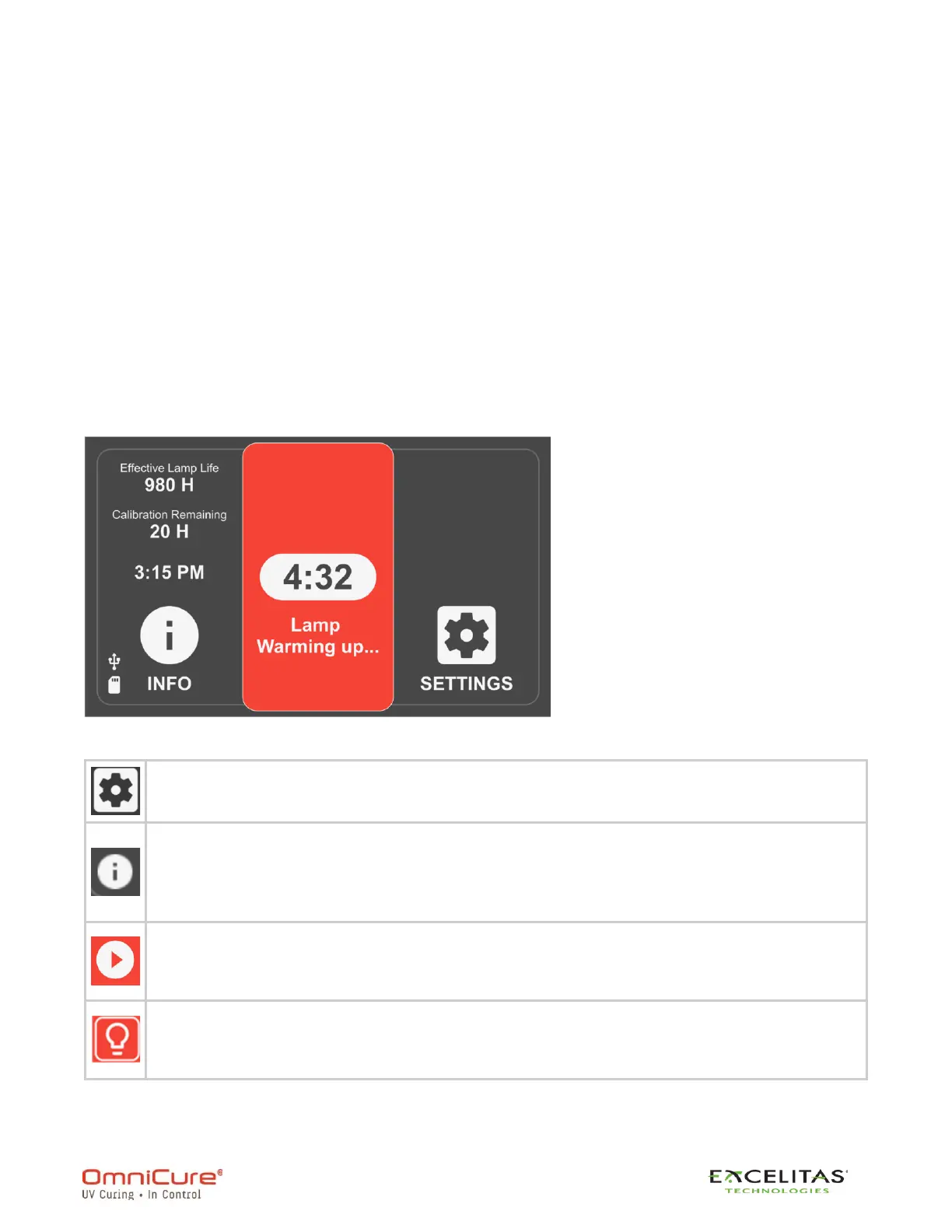

Main Screen
Main Screen Icons
Selecting this icon will navigate the screen to the setting page where the user will
have access to the system setup, configurations, calibrations, and StepCure setup.
Selecting this icon will navigate the screen to the information page where it will
display an overview of all the information regarding the system. The unit flight
recorder, light guide information, lamp information and filter information can be found
here.
Selecting this icon will navigate the screen to the Run page where the user will have
access to the exposure controls and duration. Access to this icon and page will be
available once the lamp is turned on and warmed up.
If this icon is shown instead of the icons above, it means that the lamp is currently off.
Selecting this icon will start the process to strike the lamp. The lamp will enter the
cool-down phase if required and then follow with the 4 minute lamp warm-up phase.
