S2000 Elite - User's Guide
035-00707 Revision 1
42

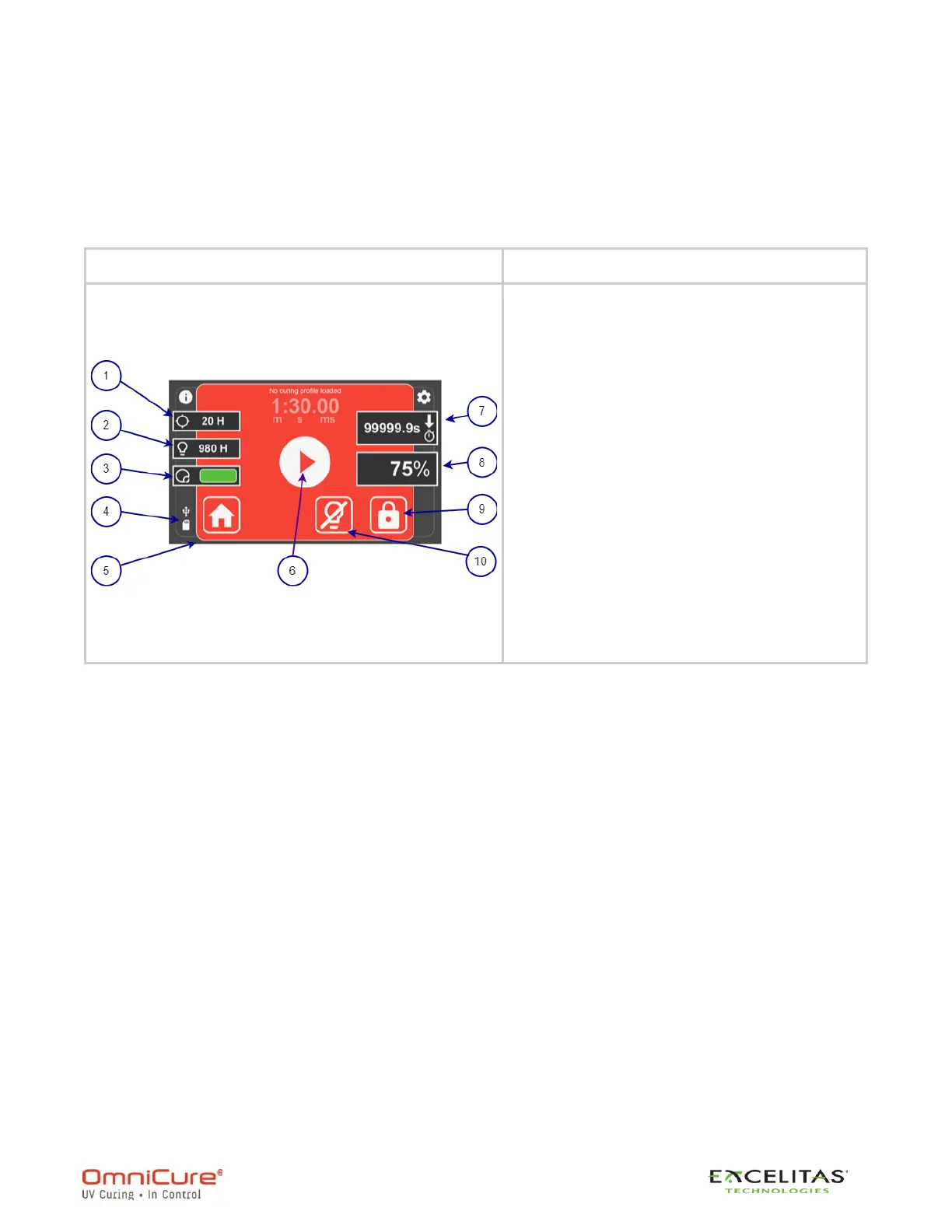

Run Screen
UV exposure parameters used to control the UV dose is displayed on this screen. The unit can
be operated in calibrated and uncalibrated mode. When the unit is not calibrated, the intensity
will be displayed as a percentage of the lamp’s maximum output. When calibrated (with the
R2000), the irradiance (W/cm
2
) or power levels (W) will be displayed.
1. Displays remaining calibration (h)
2. Displays effective lamp life (h)
3. Displays closed-loop feedback
status
4. External SD card present and/or
USB connection detected
5. Select to return to main screen
6. Start/stop exposure
7. Select to set a countdown time for
exposure duration. set to 0 to count
up.
8. Select to set the exposure intensity.
If calibrated then irradiance will be
displayed.
9. Select to lock/unlock the screen
10. Select to turn lamp off (sleep)
Navigating the run screen can be done through the Touch Screen or Physical keypad. Note
that the Run screen is different from all other screens regarding the default function of the
keypad. UP/DOWN arrows control exposure intensity settings and LEFT/RIGHT control
exposure duration settings. To navigate all other screen functions using the physical keypad,
press the CENTER select button to access the Run screen navigation mode and use the
directional arrows to move around the desired options. CENTER select needs to be pressed
again to confirm selection. After 3 seconds of no input, the system defaults back to the Run
screen exposure control using directional buttons.
