S2000 Elite - User's Guide
035-00707 Revision 1
30
• Count down mode: If a time value greater than ZERO is selected, then the timer will be
set to COUNT DOWN mode. This will be further indicated by an arrow pointing DOWN
above the watch icon. In this mode, the shutter will OPEN and remain OPEN for the
duration of the count down period. The shutter will CLOSE when the timer hits ZERO.
• Count up mode: If the time value is set to ZERO, then the timer will be set to COUNT
UP mode. This will be further indicated by an arrow pointing UP above the watch icon.
In this mode, the shutter will remain OPEN until manually closed by the user or stopped
by an alarm. The timer will behave as a stopwatch.

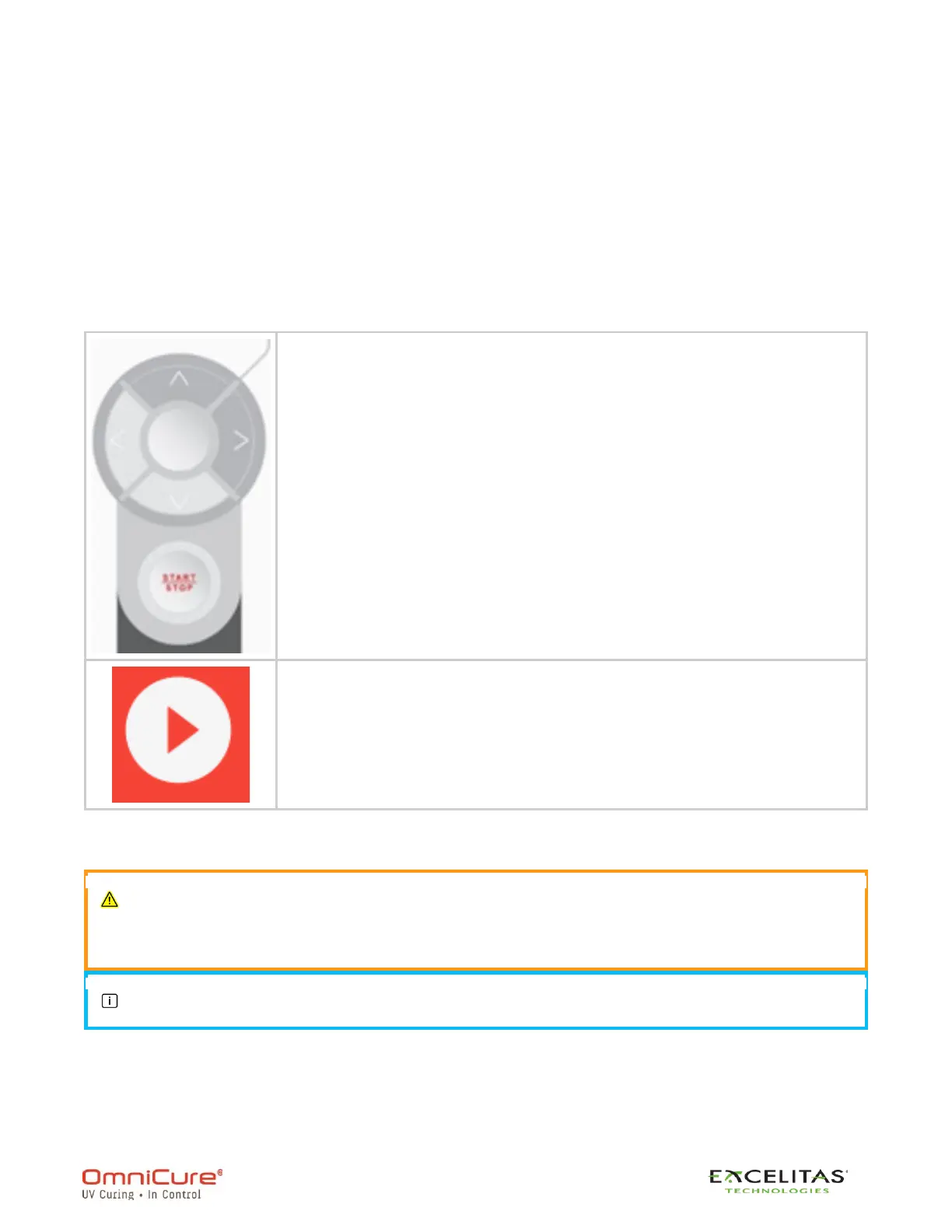

The shutter can be opened using any of the following triggers below
The shutter can be opened using the START/STOP button located on
the front panel. The button can be pressed anytime the lamp is ON.
The directional buttons can be used to adjust the iris opening even
when the shutter is OPEN in COUNT UP mode only.
The shutter can be opened using this button on the touch-screen
monitor or the WEB UI.
UV radiation will be emitted from the light guide. The light could severely damage the
cornea and retina of the eye if the light is observed directly. UV protective eye
shielding must be used at all times as well as clothing to protect exposed skin.
The shutter will not open if the light guide is not inserted properly.
For any setting at 99% or less, the S2000 Elite will record the optical output intensity using
internal sensors for the Closed-Loop Feedback circuit. Each subsequent exposure will
automatically generate the same optical output intensity, even as the lamp ages. As a result of
