Setting Up Your FTB-1v2 and FTB-1v2 Pro

106 FTB-1v2 and FTB-1v2 Pro

Configuring the Power Management Options

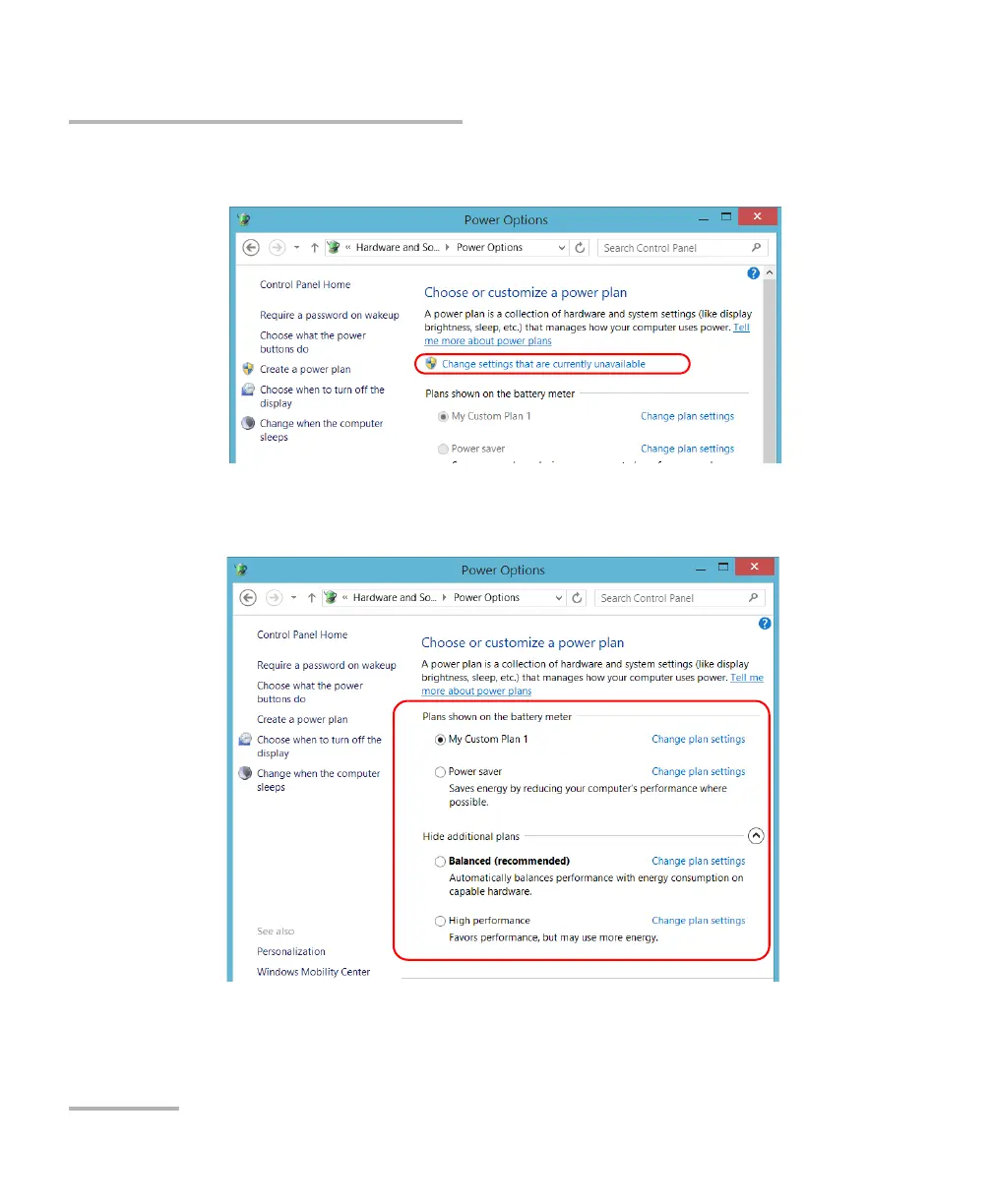

4. If necessary, tap Change settings that are currently unavailable.

5. From the list of available power plans, select the desired set of

parameters.

6. Close the window.

The new values are taken into account immediately.
