Setting Up Your FTB-1v2 and FTB-1v2 Pro

124 FTB-1v2 and FTB-1v2 Pro

Configuring Parameters via Windows Mobility Center

Configuring Parameters via Windows Mobility

Center

For a quick access to various parameters such as the volume or power

plans, you may want to use the Windows Mobility Center.

To configure the parameters via Windows Mobility Center:

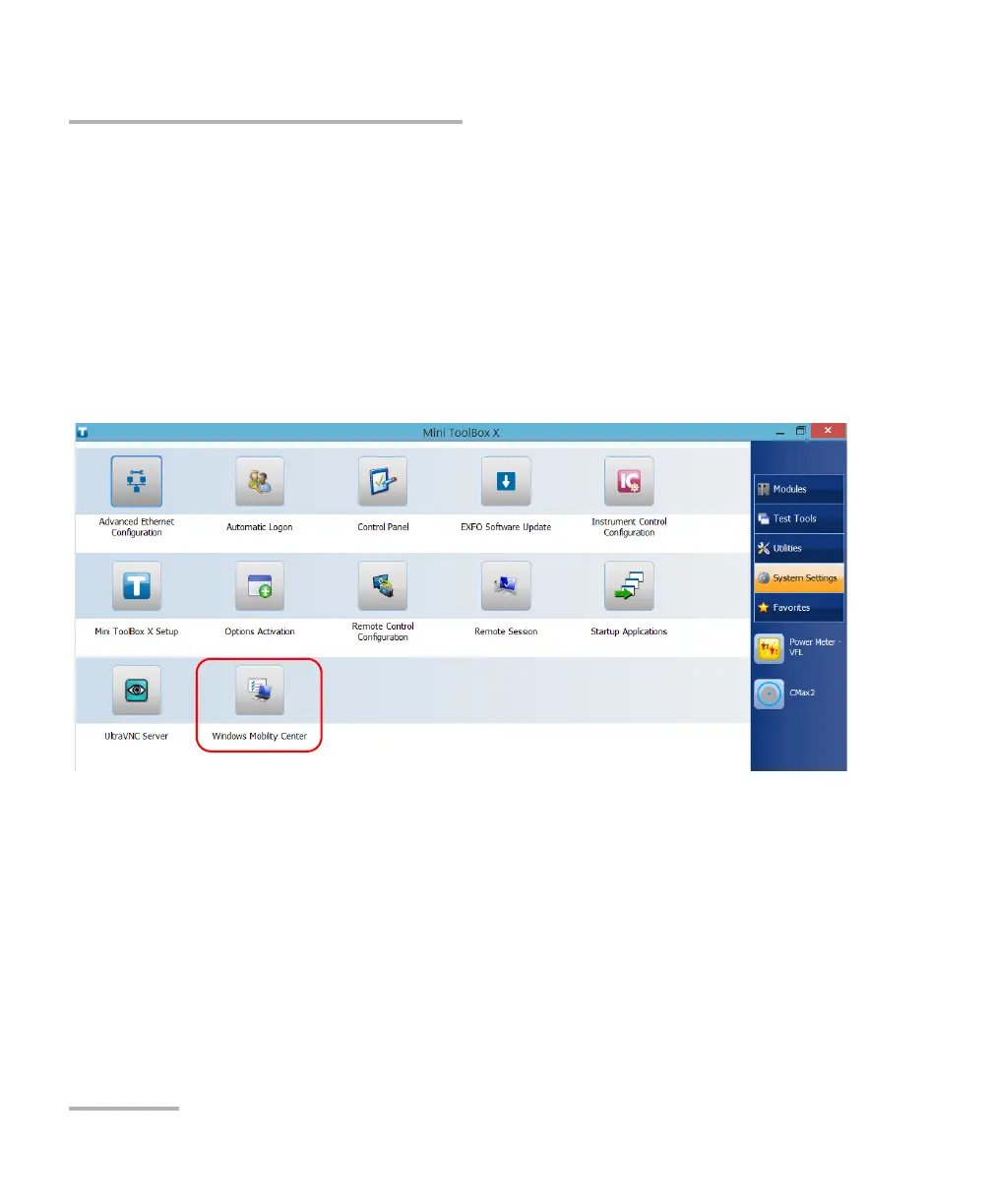

1. From the main window, tap the System Settings button.

2. Tap Windows Mobility Center.
