Getting Started with Your Unit

40 FTB-1v2 and FTB-1v2 Pro

Turning On Your Unit

When you turn on the unit for the very first time, a wizard for license

agreements and safety instructions is displayed (see the corresponding

section for more information).

Once you have accepted all the license agreements and confirmed the

reading of safety instructions, the main window is displayed.

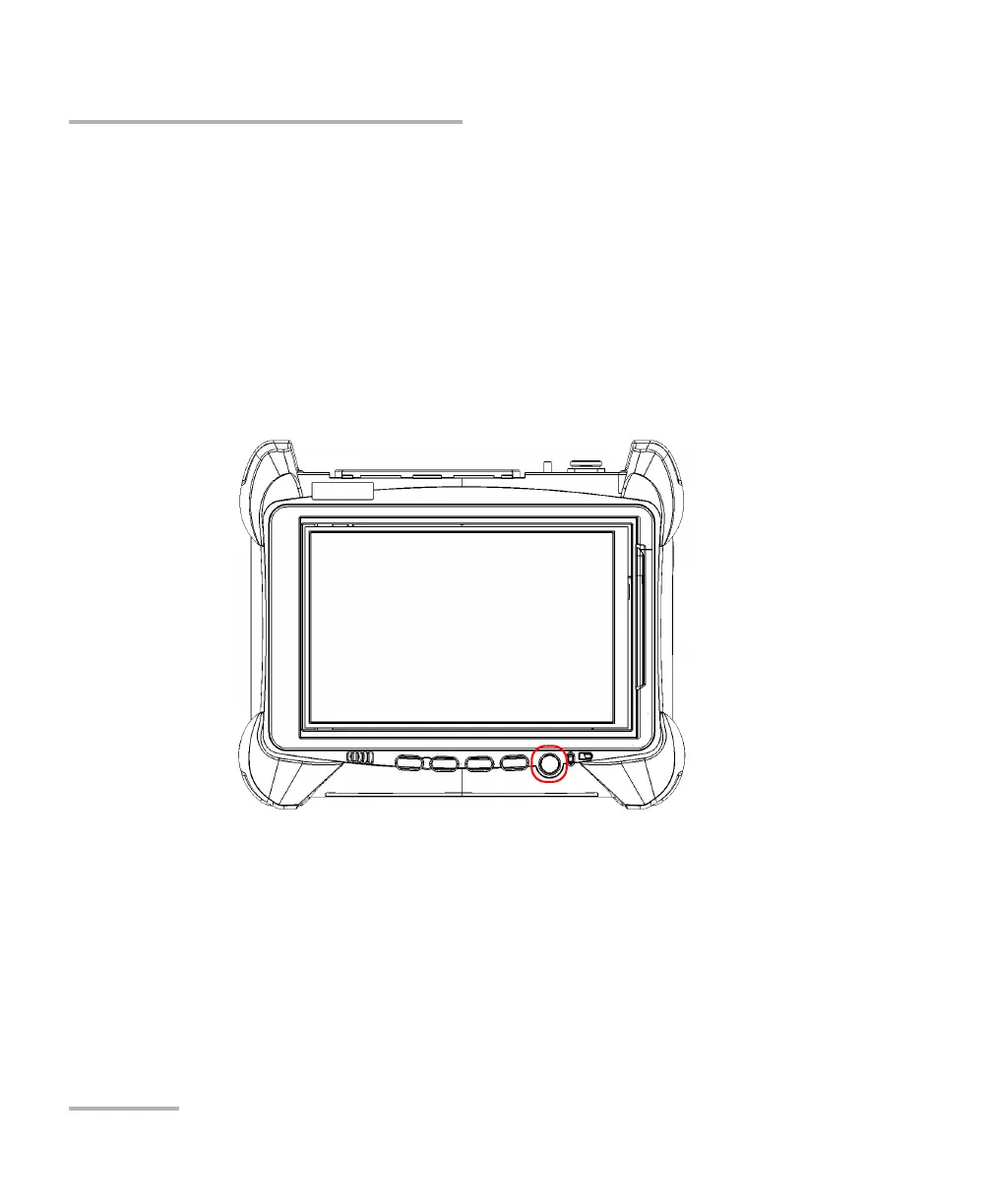

To turn on the unit:

Press the on/off button.

Table of Contents3
