Setting Up Your FTB-1v2 and FTB-1v2 Pro

FTB-1v2 and FTB-1v2 Pro 113

Configuring the Power Management Options

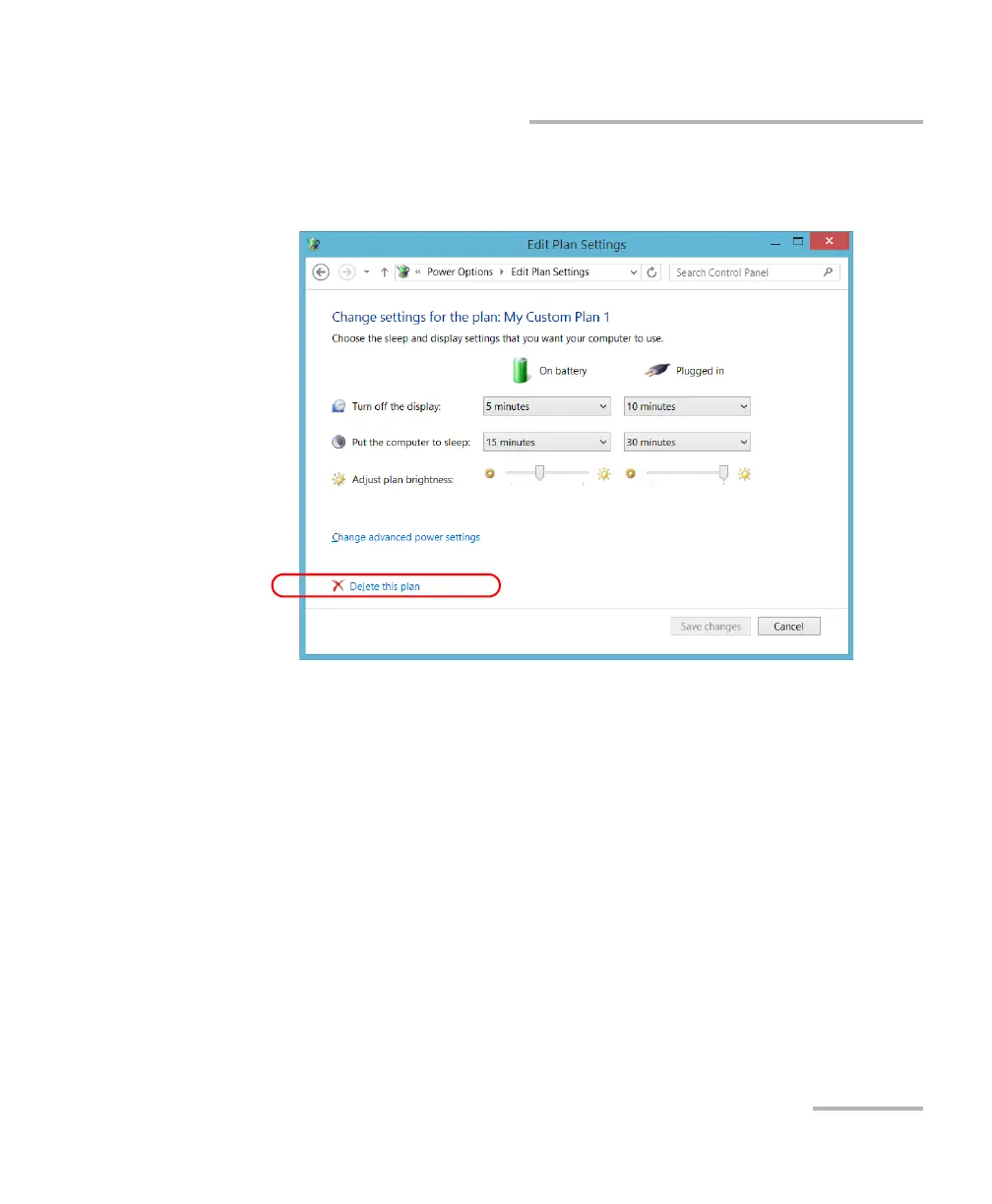

7. If you want to delete the power plan, tap Delete this plan, and then

confirm the deletion.

8. Close the window.

The changes are taken into account immediately.
