Setting Up Your FTB-1v2 and FTB-1v2 Pro

118 FTB-1v2 and FTB-1v2 Pro

Configuring the Internet Options

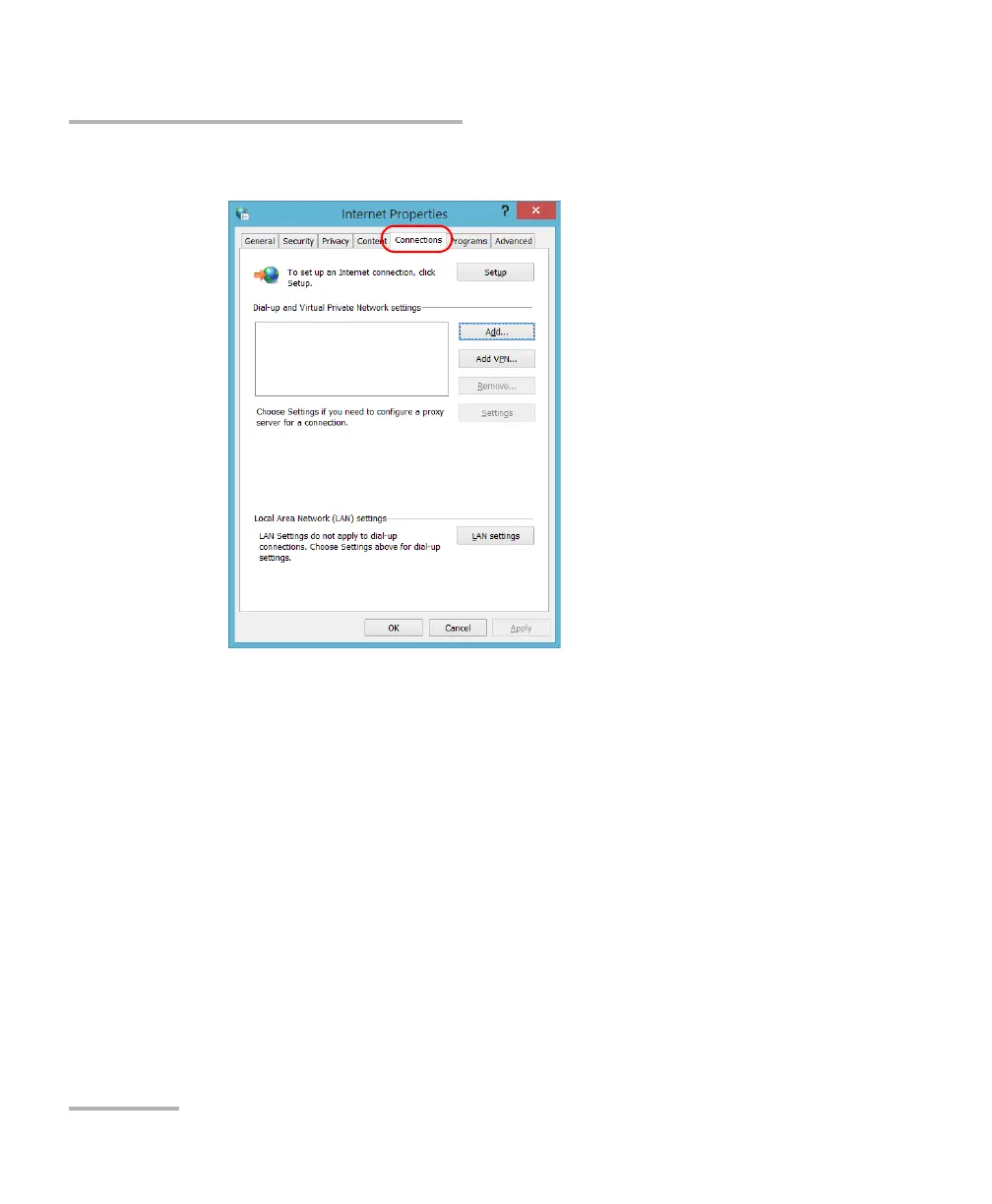

5. Go to the Connections tab.

6. Modify the settings using the information provided by your network

administrator.

7. Tap OK to return to the Control Panel window.
