Working with Your Unit

138 FTB-1v2 and FTB-1v2 Pro

Managing Favorites

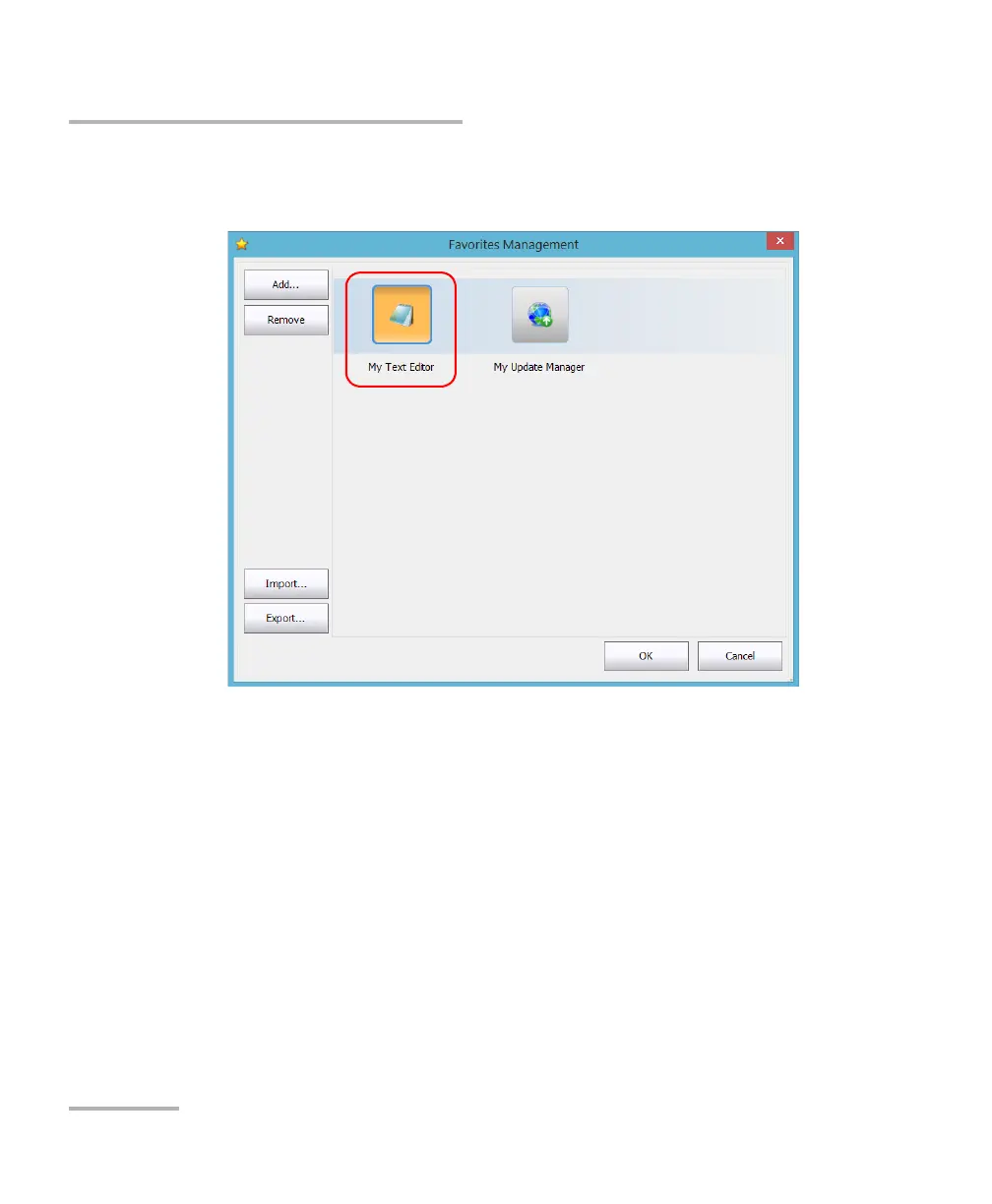

3. Tap the icon corresponding to the Favorite that you want to remove

from the list.

4. Tap Remove.

Note: The application will not prompt you to confirm the removal of the Favorite

from the list. Removing a Favorite from the list does not uninstall the

application from the unit.

5. Tap OK to apply the changes and close the window.
