Working with Your Unit

FTB-1v2 and FTB-1v2 Pro 141

Managing Favorites

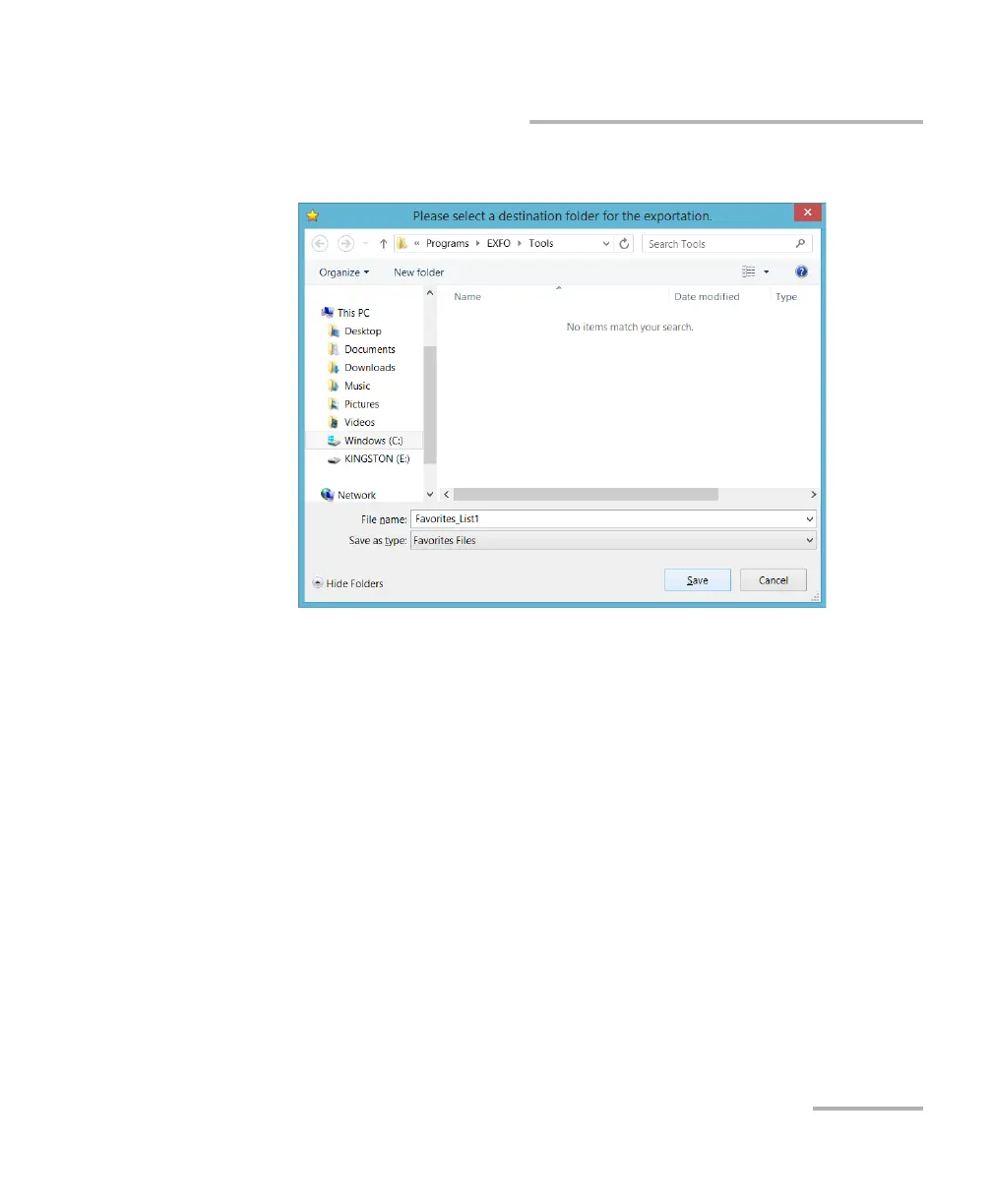

4. Select a location and type a name for the Favorites list.

5. Tap Save.

6. Tap OK to apply the changes and close the window.
