Managing Data

FTB-1v2 and FTB-1v2 Pro 181

Connecting to a VPN from Your Unit

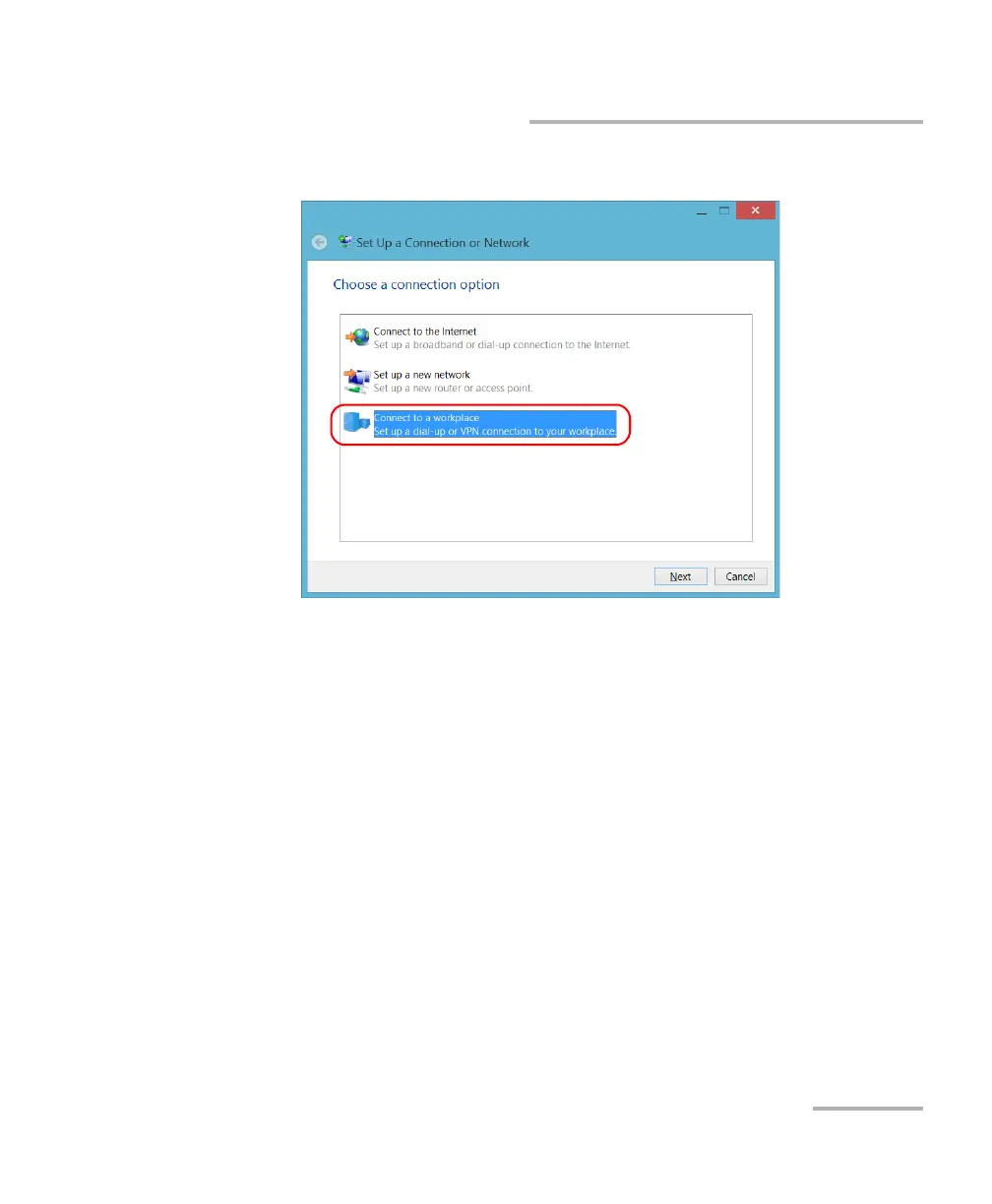

6. Tap Connect to a workplace, and then tap Next.

7. Follow the on-screen instructions.
