Accessing Your Unit Remotely

FTB-1v2 and FTB-1v2 Pro 203

Working With VNC

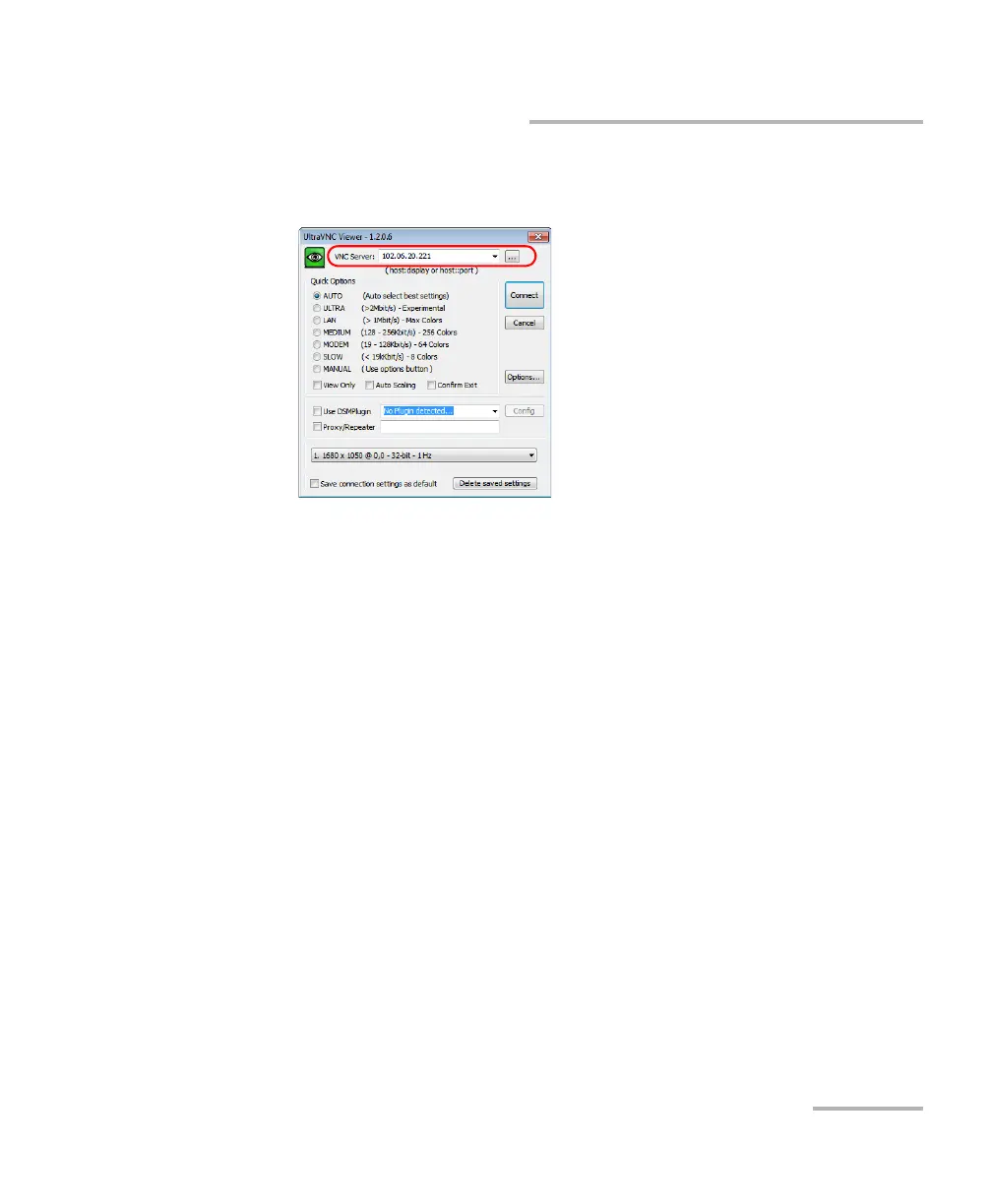

11. In the VNC Server list, type the IP address of your unit that you wrote

down at step 7.

Note: The appearance of the UltraVNC Viewer window may vary depending on

the version of the viewer that you have.

12. Click Connect.

13. When the application prompts you for a password, enter it and click

OK to confirm.
