Accessing Your Unit Remotely

FTB-1v2 and FTB-1v2 Pro 207

Adding Exceptions to the Firewall

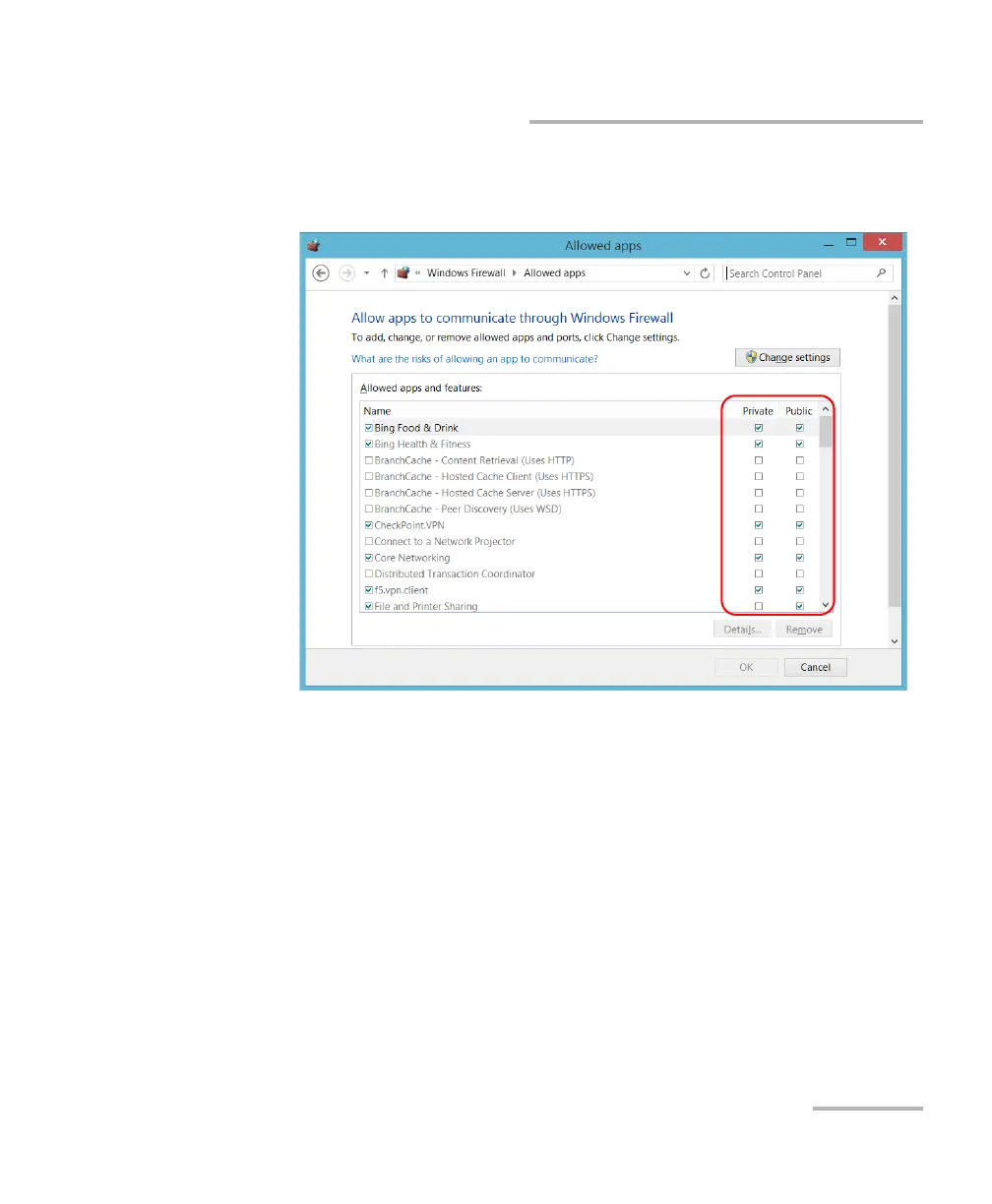

8. Ensure that the Private and Public settings of the added application

suit your needs.

9. When you have finished, tap OK to confirm the changes and return to

the Control Panel window.
