Preparing for Automation

232 FTB-1v2 and FTB-1v2 Pro

Configuring DCOM Access to Your Unit

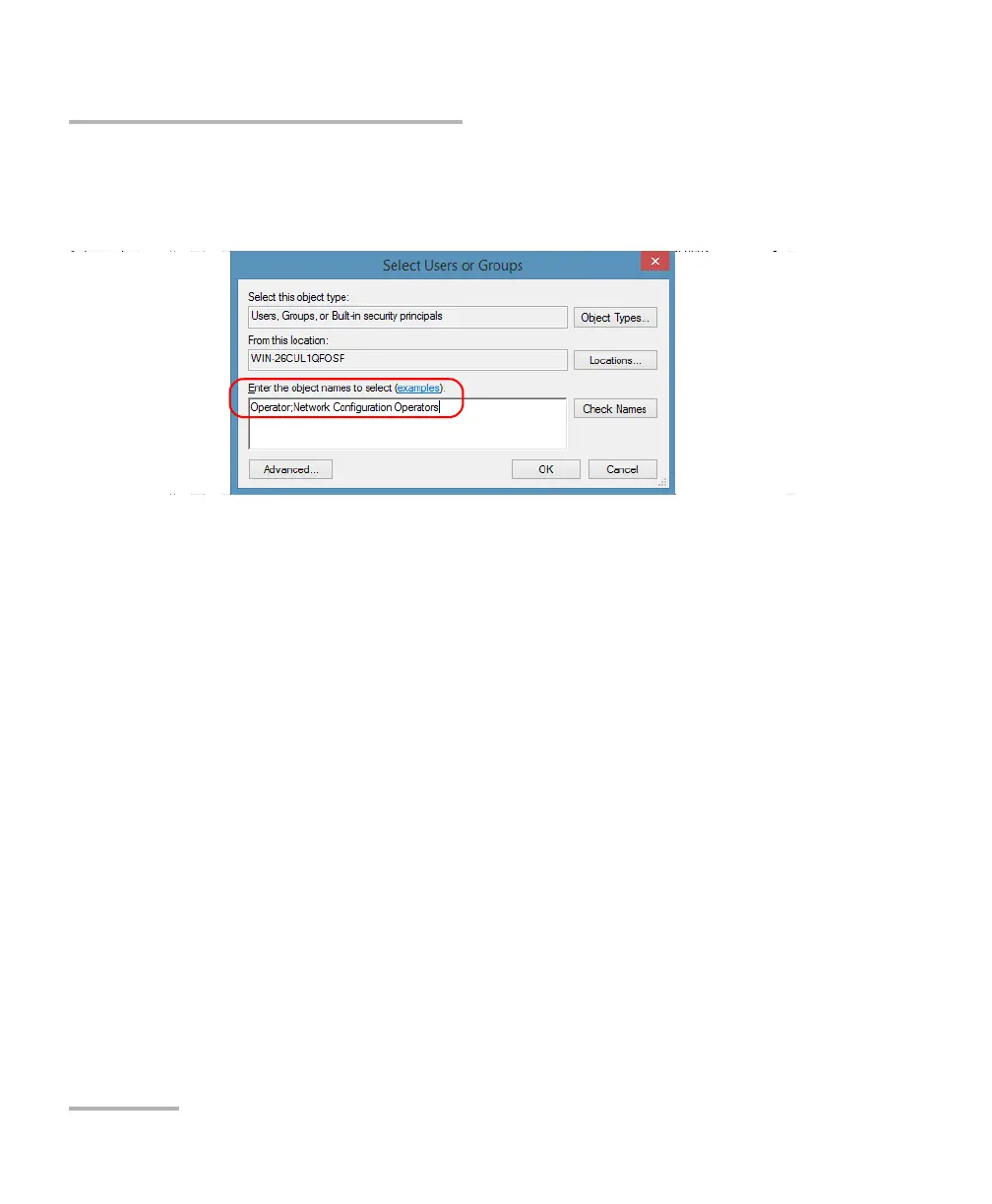

4. In the Select Users or Groups dialog box, under Enter the object

names to select, type the name of the user to whom you want to give

access rights.

5. Tap OK.
