Preparing for Automation

FTB-1v2 and FTB-1v2 Pro 237

Configuring DCOM Access to Your Unit

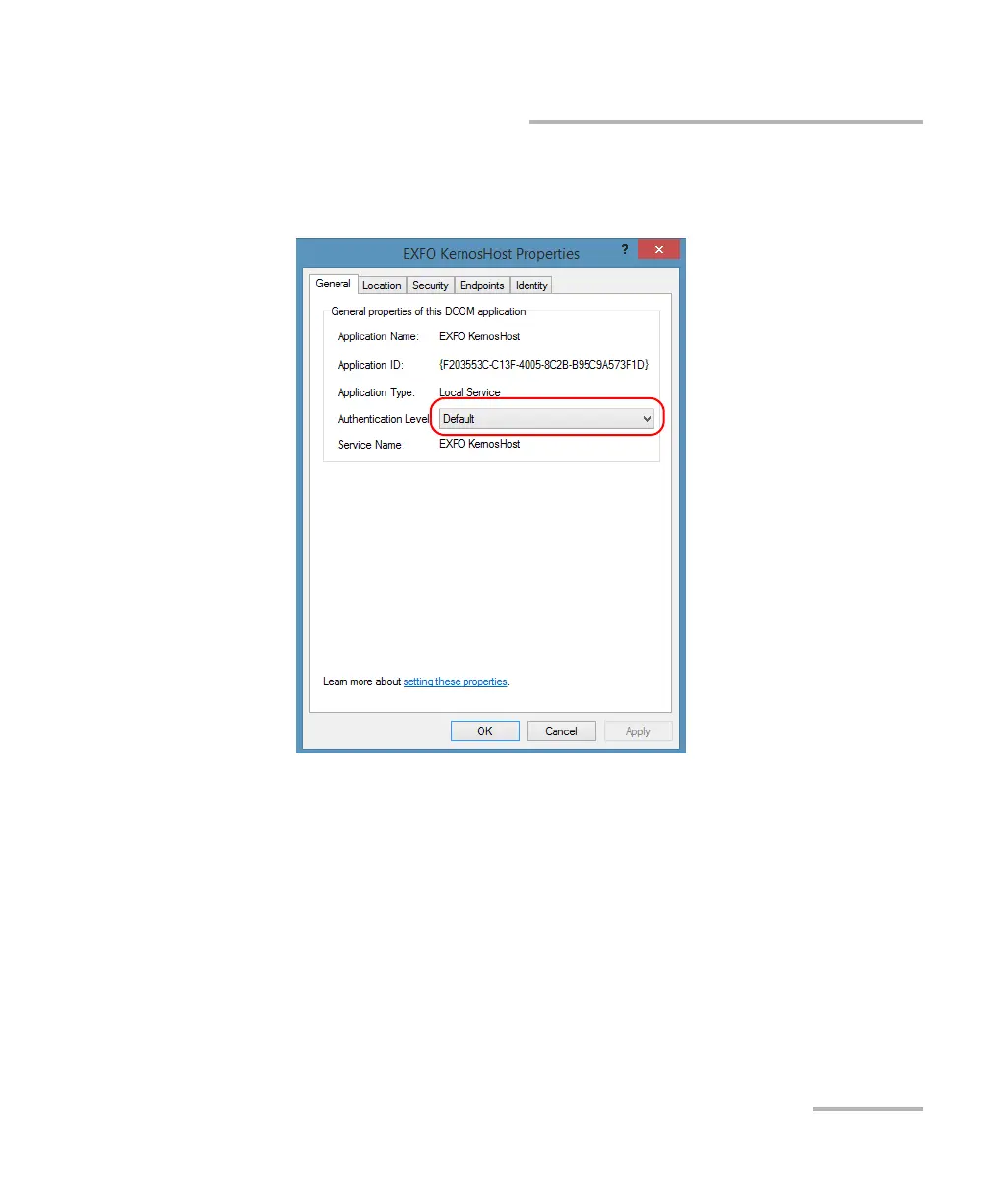

3. Tap the General tab.

4. In the Authentication Level list, select Default.
